Asus P5L-MX User Manual

ASUS P5L-MX 1-19

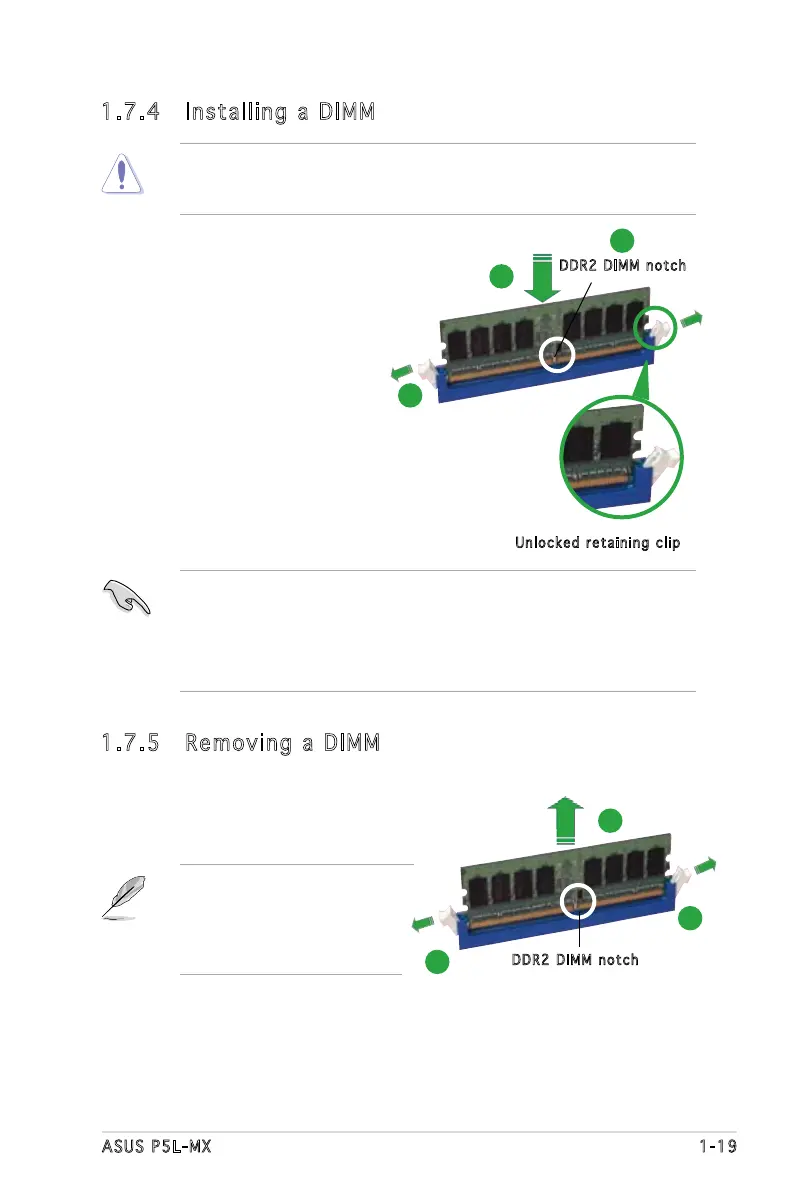

1.7.4 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other
system components. Failure to do so can cause severe damage to both
the motherboard and the components.
To install a DIMM:
1. Unlock a DIMM socket by
pressing the retaining clips
outward.
2. Align a DIMM on the socket
such that the notch on the
DIMM matches the break on
the socket.
3. Firmly insert the DIMM into the
socket until the retaining clips
snap back in place and the
DIMM is properly seated.
1.7.5 Removing a DIMM
Follow these steps to remove a DIMM.
1. Simultaneously press the retaining
clips outward to unlock the DIMM.
2. Remove the DIMM from the socket.
• A DDR2 DIMM is keyed with a notch so that it ts in only one
direction. Do not force a DIMM into a socket to avoid damaging the
DIMM.
• The DDR2 DIMM sockets do not support DDR DIMMs. DO not install
DDR DIMMs to the DDR2 DIMM sockets.
Support the DIMM lightly with
your ngers when pressing the
retaining clips. The DIMM might
get damaged when it ips out
with extra force.
Unlock ed r etaining cl ip
DDR2 D IMM notch
1
2
3
DDR2 D IMM notch
1
2
1

Asus P5L-MX Specifications

General

Non-ECC	Yes
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Number of SATA connectors	4
Number of Parallel ATA connectors	1
Manageability features	WfM 2.0, DMI 2.0, WOL PME, WOR PME, PXE
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
BIOS type	AMI
BIOS memory size	32 Mbit
Audio chip	ADI AD1986A
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows Vista/XP/2000
Graphics card	GMA 950
Networking features	100/1000
