Asus P5L-MX User Manual

ASUS P5L-MX 1-25
SPEED
LED
ACT/LINK
LED
LAN port
LAN port LED indications
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
YELLOW Data activity ORANGE 100 Mbps connection
(blinking)
YELLOW Linked GREEN 1 Gbps connection
(no blinking)
1.10 Connectors

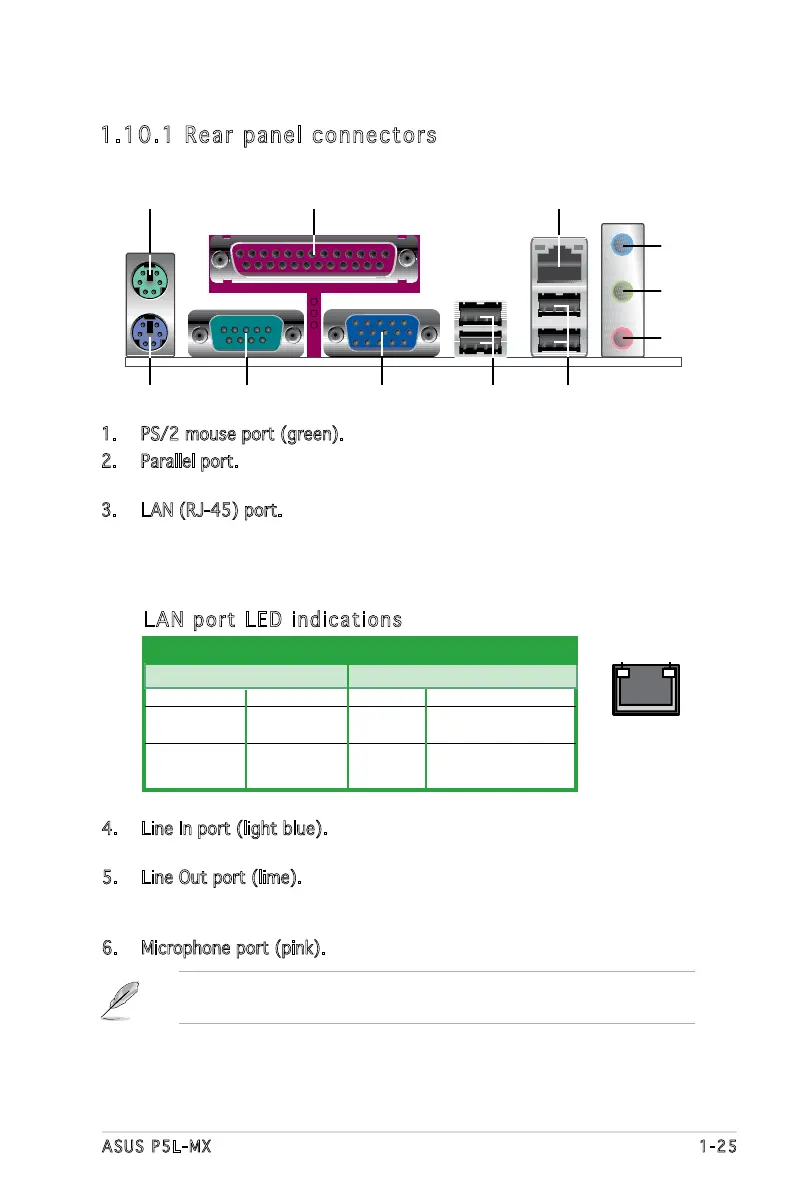

1.10.1 Rear panel connectors
Refer to the audio conguration table on the next page for the function
of the audio ports in 2, 4, or 6-channel conguration.
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or
other devices.
3. LAN (RJ-45) port. Supported by Realtek
®
Gigabit LAN controller,
this port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED
indications.
4. Line In port (light blue). This port connects the tape, CD, DVD player,
or other audio sources.
5. Line Out port (lime). This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel conguration, the function of this
port becomes Front Speaker Out.
6. Microphone port (pink). This port connects a microphone.
1
11
4
5
6
7
2 3
8
10
9

Asus P5L-MX Specifications

General

Non-ECC	Yes
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Number of SATA connectors	4
Number of Parallel ATA connectors	1
Manageability features	WfM 2.0, DMI 2.0, WOL PME, WOR PME, PXE
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
BIOS type	AMI
BIOS memory size	32 Mbit
Audio chip	ADI AD1986A
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows Vista/XP/2000
Graphics card	GMA 950
Networking features	100/1000
