Asus P5LD2-VM User Manual

ASUS P5LD2-VMASUS P5LD2-VM
ASUS P5LD2-VMASUS P5LD2-VM
ASUS P5LD2-VM
1-131-13
1-131-13
1-13
1.6.31.6.3
1.6.31.6.3
1.6.3
Uninstalling the CPU heatsink and fanUninstalling the CPU heatsink and fan
Uninstalling the CPU heatsink and fanUninstalling the CPU heatsink and fan
Uninstalling the CPU heatsink and fan

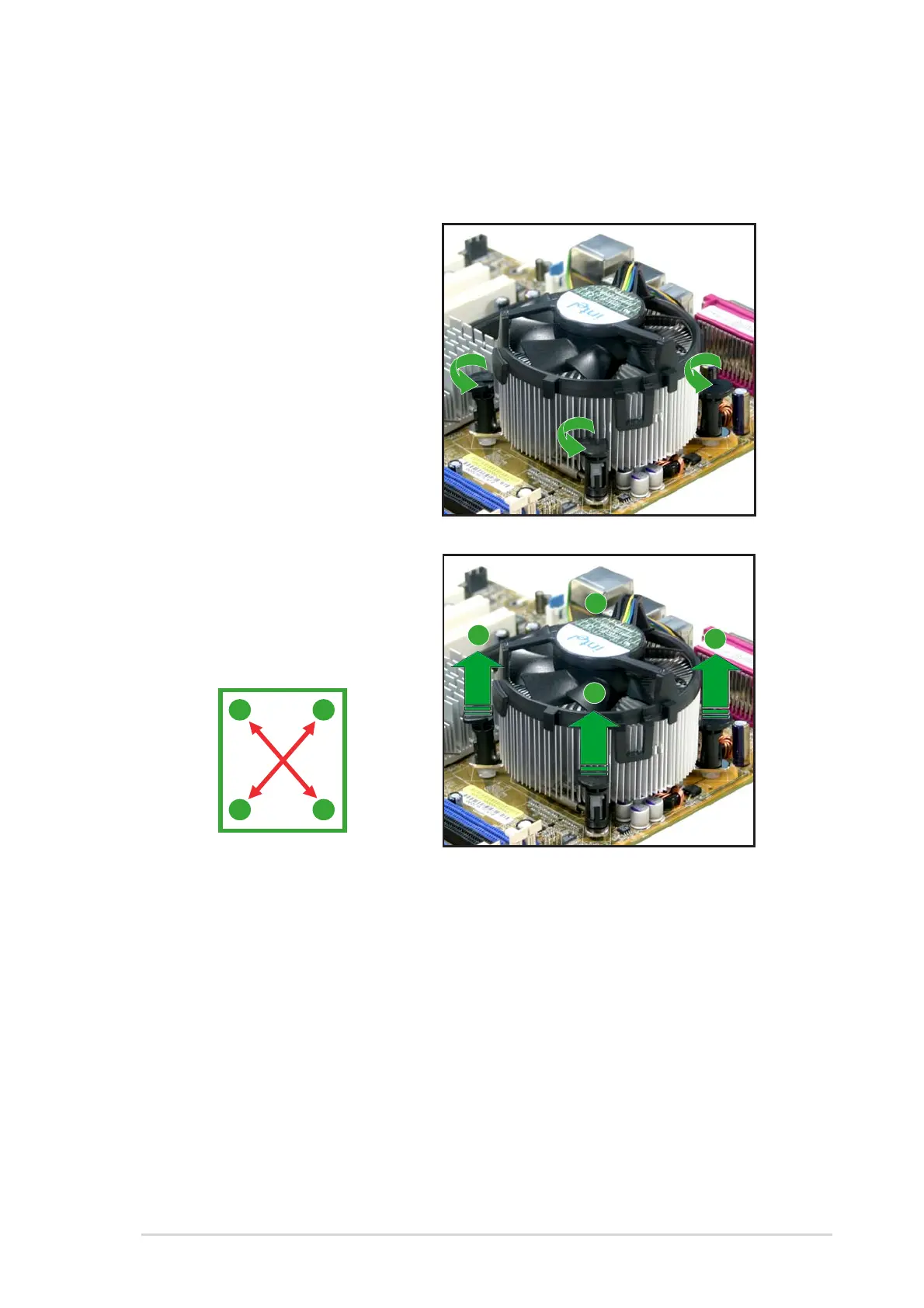

To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan
cable from the connector
on the motherboard.
2. Rotate each fastener
counterclockwise.
3. Pull up two fasteners at a
time in a diagonal sequence
to disengage the heatsink
and fan assembly from the
motherboard.
A
A
B
B
B
B
A
A

Asus P5LD2-VM Specifications

General

I/O ports	Back Panel I/O Ports 1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x VGA 1 x Audio I/O 1 x RJ45 4 x USB Internal I/O Connectors 2 x USB connectors supports additional 4 USB ports CPU / Chassis FAN connectors 24-pin EATX Power connector 4-pin ATX 12V Power connector Chassis Intrusion connector S/PDIF out connector CD audio in 3-pin PWR FAN connector Front panel High Definition Audio connector
Power source type	ATX
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II Anti-Virus Software ASUS LiveUpdate
Networking features	Intel Gb LAN
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
