Asus P5LD2-VM User Manual

ASUS P5LD2-VMASUS P5LD2-VM
ASUS P5LD2-VMASUS P5LD2-VM
ASUS P5LD2-VM
1-171-17
1-171-17
1-17
1.7.41.7.4
1.7.41.7.4
1.7.4

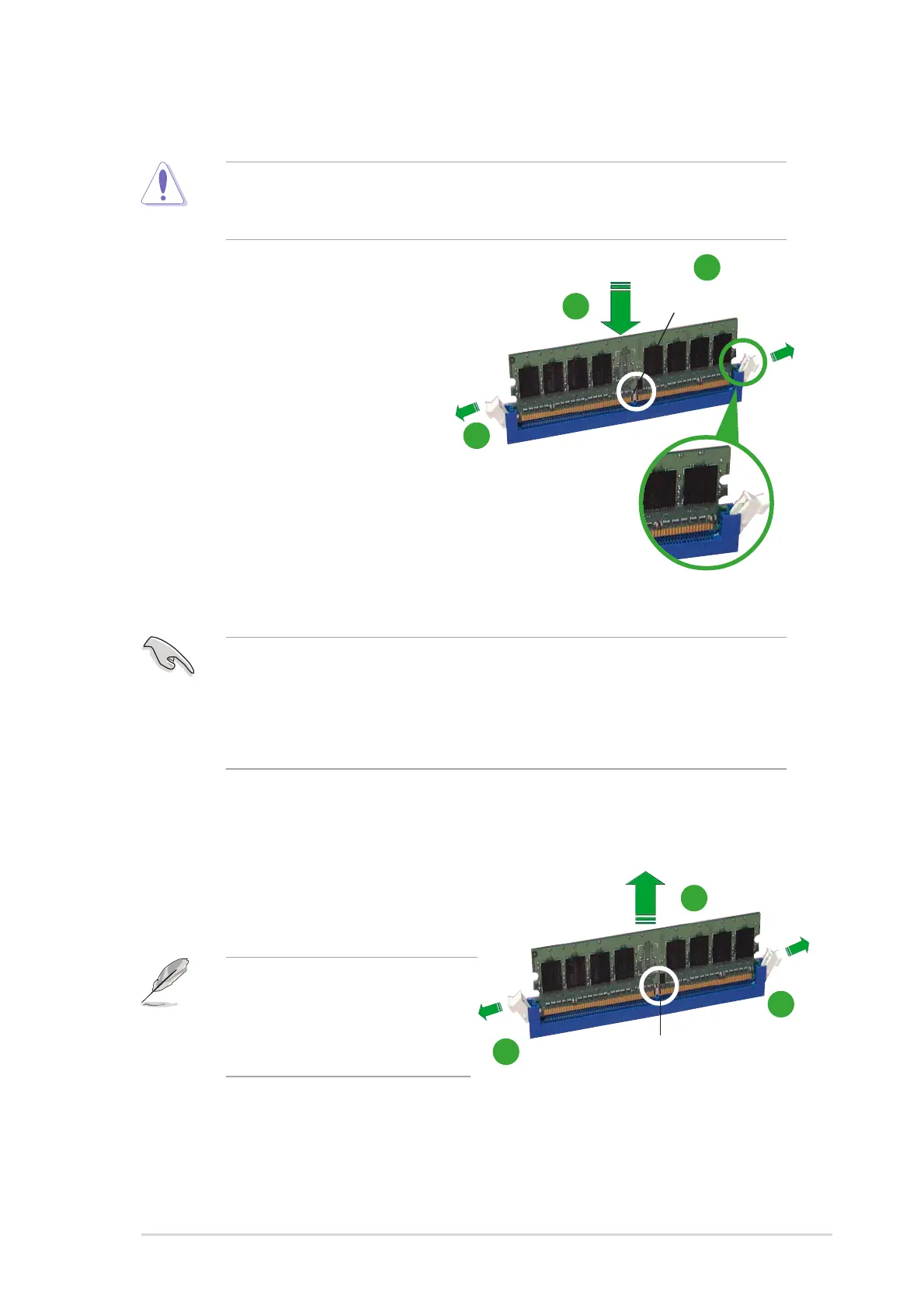

Installing a DIMMInstalling a DIMM
Installing a DIMMInstalling a DIMM
Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other
system components. Failure to do so can cause severe damage to both
the motherboard and the components.
To install a DIMM:
1. Unlock a DIMM socket by
pressing the retaining clips
outward.
2. Align a DIMM on the socket
such that the notch on the
DIMM matches the break on
the socket.
3. Firmly insert the DIMM into the
socket until the retaining clips
snap back in place and the
DIMM is properly seated.
1.7.51.7.5
1.7.51.7.5
1.7.5
Removing a DIMMRemoving a DIMM
Removing a DIMMRemoving a DIMM
Removing a DIMM
Follow these steps to remove a DIMM.
1. Simultaneously press the retaining
clips outward to unlock the DIMM.
2. Remove the DIMM from the socket.
• A DDR2 DIMM is keyed with a notch so that it fits in only one
direction. Do not force a DIMM into a socket to avoid damaging the
DIMM.
• The DDR2 DIMM sockets do not support DDR DIMMs. DO not install
DDR DIMMs to the DDR2 DIMM sockets.
Support the DIMM lightly with
your fingers when pressing the
retaining clips. The DIMM might
get damaged when it flips out
with extra force.
Unlocked retaining clipUnlocked retaining clip
Unlocked retaining clipUnlocked retaining clip
Unlocked retaining clip
DDR2 DIMM notchDDR2 DIMM notch
DDR2 DIMM notchDDR2 DIMM notch
DDR2 DIMM notch
1
2
3
DDR2 DIMM notchDDR2 DIMM notch
DDR2 DIMM notchDDR2 DIMM notch
DDR2 DIMM notch
1
2
1

Asus P5LD2-VM Specifications

General

I/O ports	Back Panel I/O Ports 1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x VGA 1 x Audio I/O 1 x RJ45 4 x USB Internal I/O Connectors 2 x USB connectors supports additional 4 USB ports CPU / Chassis FAN connectors 24-pin EATX Power connector 4-pin ATX 12V Power connector Chassis Intrusion connector S/PDIF out connector CD audio in 3-pin PWR FAN connector Front panel High Definition Audio connector
Power source type	ATX
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II Anti-Virus Software ASUS LiveUpdate
Networking features	Intel Gb LAN
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
