Asus P5LD2-VM User Manual

1-201-20
1-201-20
1-20
Chapter 1: Product introductionChapter 1: Product introduction
Chapter 1: Product introductionChapter 1: Product introduction
Chapter 1: Product introduction
1.8.41.8.4
1.8.41.8.4
1.8.4
PCI slotsPCI slots
PCI slotsPCI slots
PCI slots

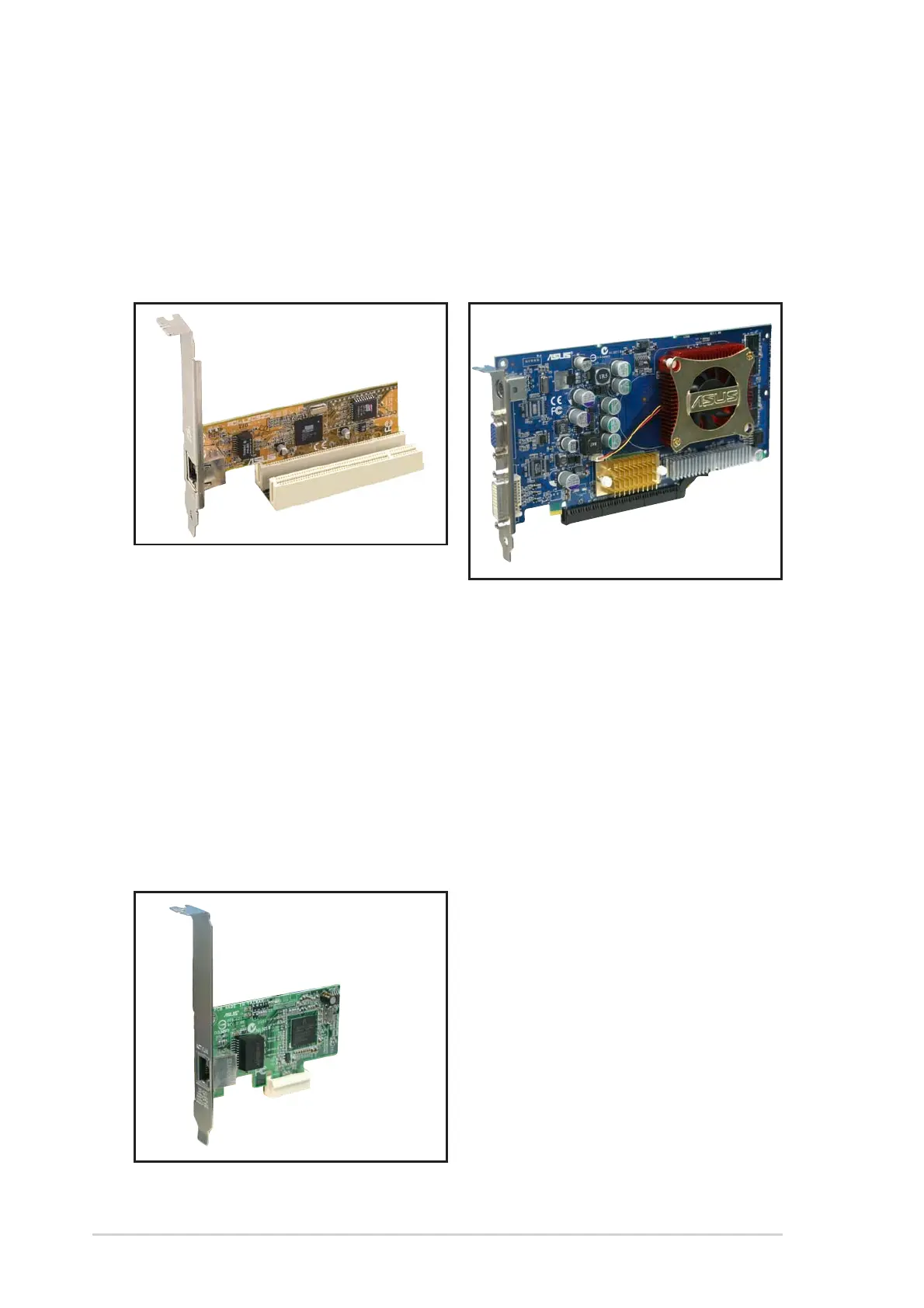

The PCI slots support cards such as
a LAN card, SCSI card, USB card,
and other cards that comply with
PCI specifications. The figure shows
a LAN card installed on a PCI slot.
1.8.51.8.5
1.8.51.8.5
1.8.5
PCI Express x16PCI Express x16
PCI Express x16PCI Express x16
PCI Express x16
This motherboard supports one PCI
Express x16 graphics card. The
figure shows a graphics card
installed on the PCI Express x16
slot.
1.8.61.8.6
1.8.61.8.6
1.8.6
PCI Express x1PCI Express x1
PCI Express x1PCI Express x1
PCI Express x1
This motherboard supports PCI
Express x1 network cards, SCSI
cards and other cards that comply
with the PCI Express specifications.
The figure shows a network card
installed on the PCI Express x1 slot.

Asus P5LD2-VM Specifications

General

I/O ports	Back Panel I/O Ports 1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x VGA 1 x Audio I/O 1 x RJ45 4 x USB Internal I/O Connectors 2 x USB connectors supports additional 4 USB ports CPU / Chassis FAN connectors 24-pin EATX Power connector 4-pin ATX 12V Power connector Chassis Intrusion connector S/PDIF out connector CD audio in 3-pin PWR FAN connector Front panel High Definition Audio connector
Power source type	ATX
Motherboard form factor	micro ATX
Bundled software	Drivers ASUS PC Probe II Anti-Virus Software ASUS LiveUpdate
Networking features	Intel Gb LAN
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
