ASUS P5PE-VM 1-5

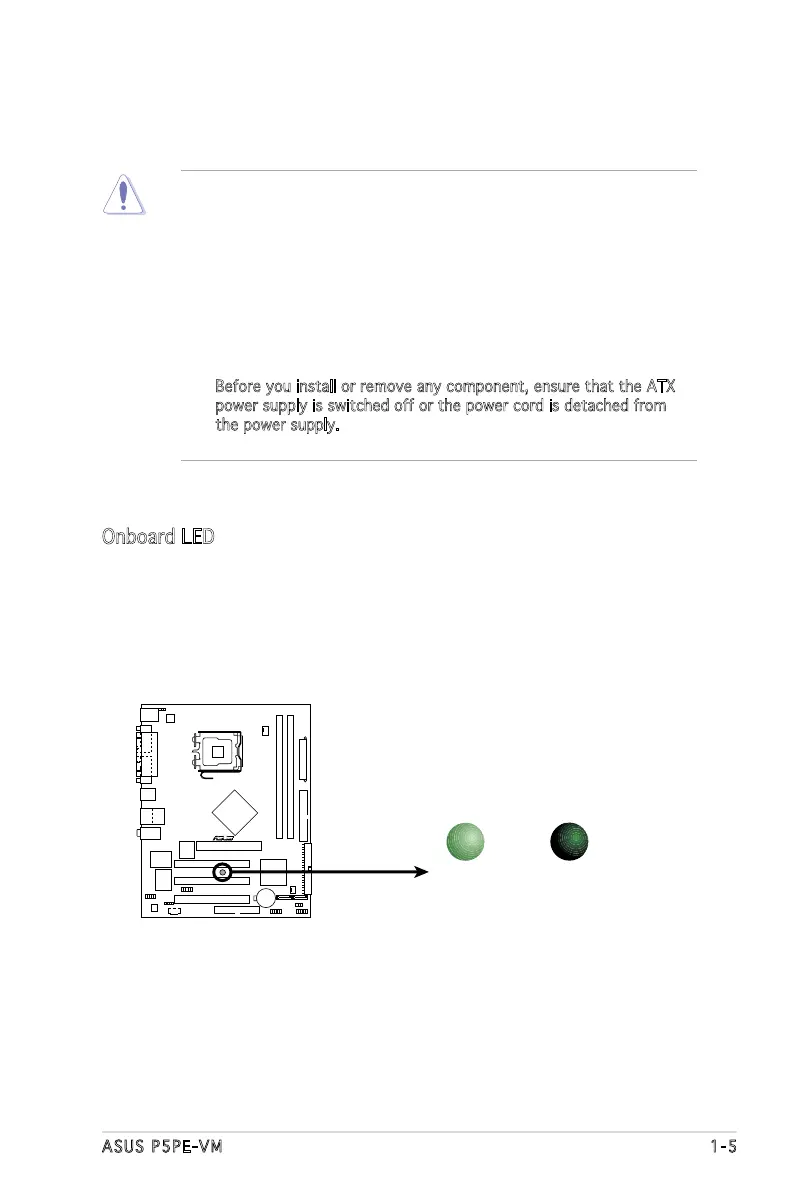

Onboard LED
The motherboard comes with a standby power LED that lights up to
indicate that the system is ON, in sleep mode, or in soft-off mode.
This is a reminder that you should shut down the system and unplug
the power cable before removing or plugging in any motherboard
component. The illustration below shows the location of the onboard
LED.
1.4 Before you proceed
Take note of the following precautions before you install motherboard
components or change any motherboard settings.
• Unplug the power cord from the wall socket before touching any
component.
• Use a grounded wrist strap or touch a safely grounded object or
to a metal object, such as the power supply case, before handling
components to avoid damaging them due to static electricity
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded
antistatic pad or in the bag that came with the component.
•
Before you install or remove any component, ensure that the ATX
power supply is switched off or the power cord is detached from
the power supply. Failure to do so may cause severe damage to the
motherboard, peripherals, and/or components.
R
P5PE-VM
P5PE-VM Onboard LED
SB_PWR
ON
Standby
Power
OFF
Powere
d
Off

Asus P5PE-VM Specifications

General

ECC	No
Number of memory slots	2
Maximum internal memory	2 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
CPU fan connector	Yes
USB 2.0 ports quantity	4
Audio chip	ADI AD1888
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Special features	ASUS CPU Lock Free MyLogo CrashFree BIOS2 EZ Flash ASUS C.P.R.
Controller interface type	UltraDMA 100/66/33
Controller 2nd interface type	Serial ATA
LAN controller	Marvell 88E8001
Networking features	Gigabit Ethernet
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	193 mm
Width	245 mm
