Asus P5PE-VM User Manual

ASUS P5PE-VM 1-13

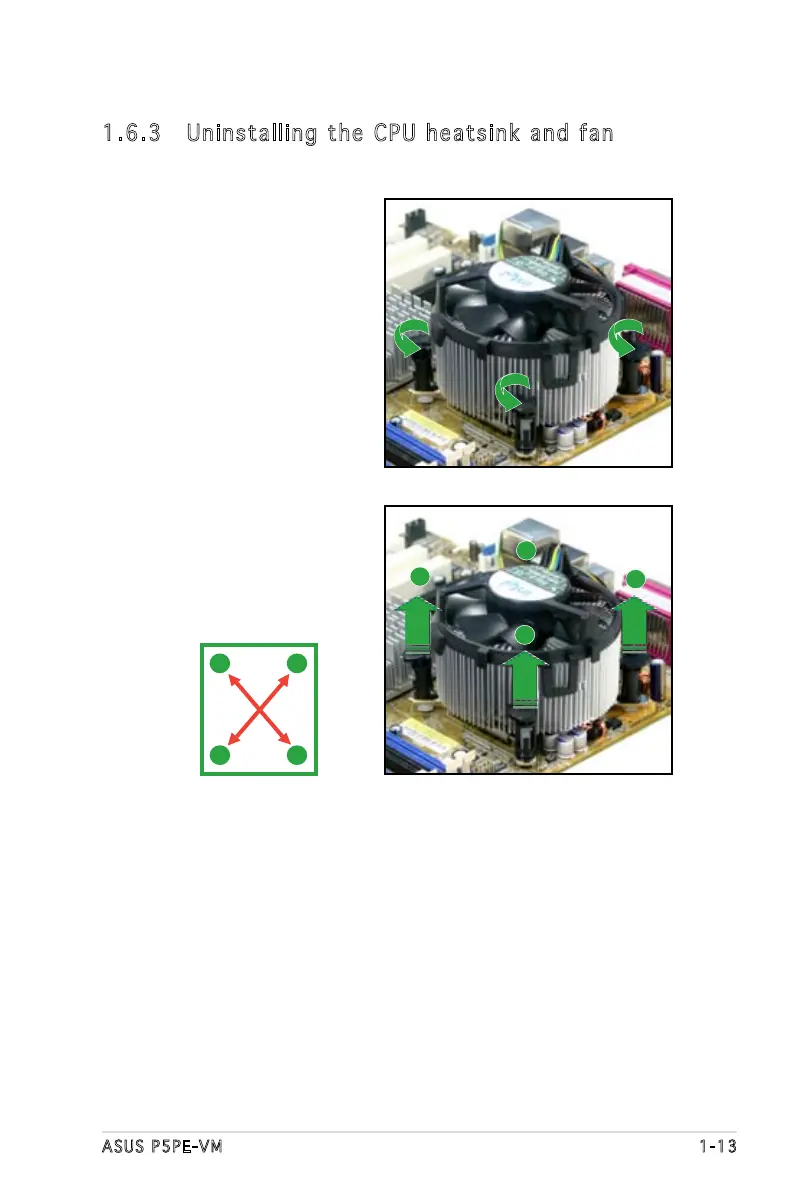

1.6.3 Uninstalling the CPU heatsink and fan
To uninstall the CPU heatsink and fan:
1. Disconnect the CPU fan
cable from the connector on
the motherboard.
2. Rotate each fastener
counterclockwise.
3. Pull up two fasteners at a
time in a diagonal sequence
to disengage the heatsink
and fan assembly from the
motherboard.
B
B
A
A
A
A
B
B

Asus P5PE-VM Specifications

General

ECC	No
Number of memory slots	2
Maximum internal memory	2 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
CPU fan connector	Yes
USB 2.0 ports quantity	4
Audio chip	ADI AD1888
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Special features	ASUS CPU Lock Free MyLogo CrashFree BIOS2 EZ Flash ASUS C.P.R.
Controller interface type	UltraDMA 100/66/33
Controller 2nd interface type	Serial ATA
LAN controller	Marvell 88E8001
Networking features	Gigabit Ethernet
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	193 mm
Width	245 mm
