Asus P5PE-VM User Manual

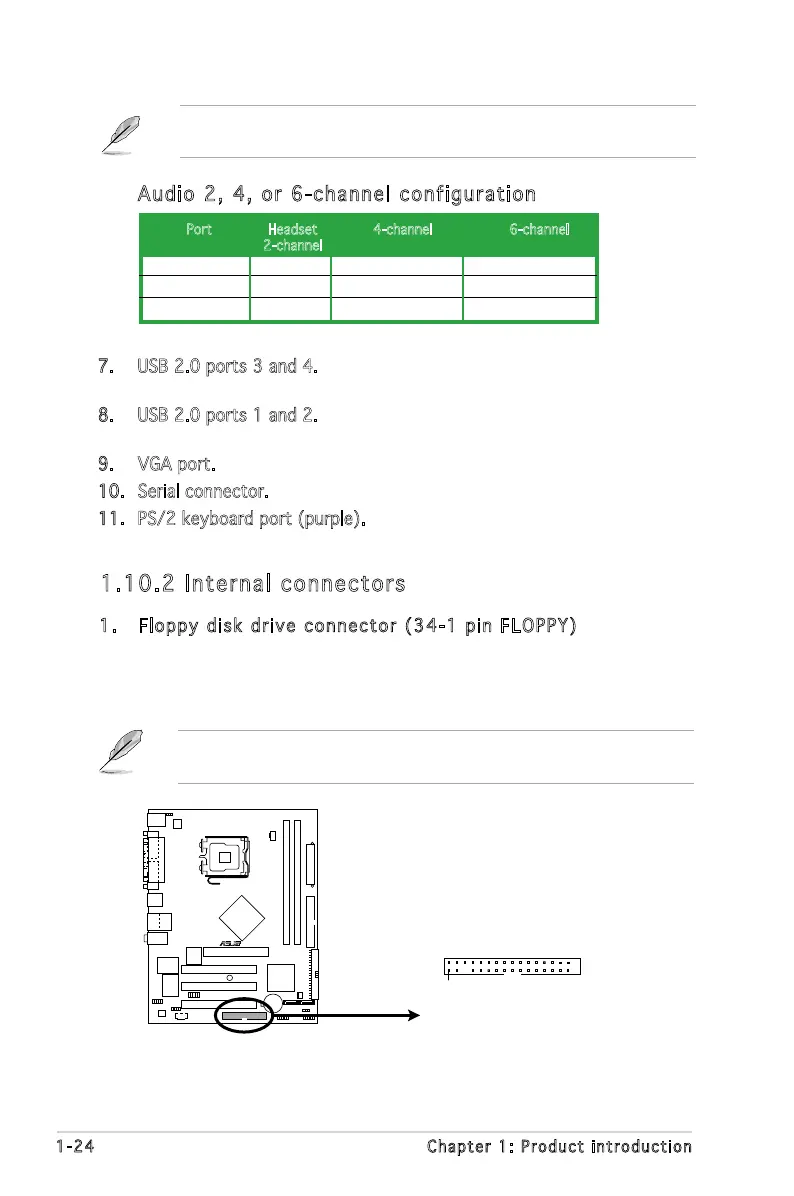

1-24 Chapter 1: Product introduction
Audio 2, 4, or 6-channel configuration
Light Blue Line In Line In Bass/Center
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Rear Speaker Out Rear Speaker Out
Port Headset 4-channel 6-channel
2-channel
Refer to the audio conguration table for the function of the audio ports
in 2, 4, or 6-channel conguration.
7. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB)
ports are available for connecting USB 2.0 devices.
8. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB)
ports are available for connecting USB 2.0 devices.
9. VGA port. This 15-pin VGA port connects to a VGA monitor.
10. Serial connector. This 9-pin COM1 port is for serial devices.
11. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
1.10.2 Internal connectors
1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided oppy disk drive (FDD) signal cable.
Insert one end of the cable to this connector, then connect the other
end to the signal connector at the back of the oppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection
when using an FDD cable with a covered Pin 5.
R
P5PE-VM
P5PE-VM Floppy Disk Drive Connector
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
PIN 1
FLOPPY

Asus P5PE-VM Specifications

General

ECC	No
Number of memory slots	2
Maximum internal memory	2 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
CPU fan connector	Yes
USB 2.0 ports quantity	4
Audio chip	ADI AD1888
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Special features	ASUS CPU Lock Free MyLogo CrashFree BIOS2 EZ Flash ASUS C.P.R.
Controller interface type	UltraDMA 100/66/33
Controller 2nd interface type	Serial ATA
LAN controller	Marvell 88E8001
Networking features	Gigabit Ethernet
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	193 mm
Width	245 mm
