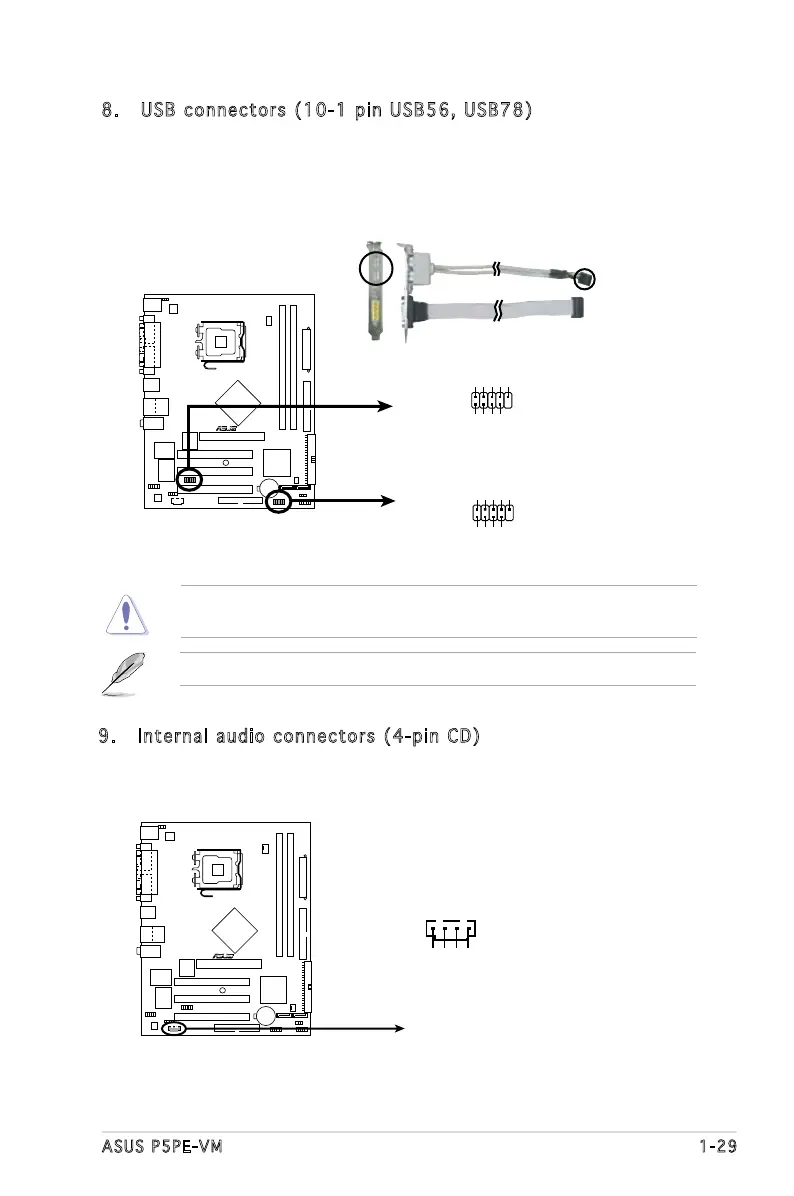

ASUS P5PE-VM 1-29
9. Internal audio connectors (4-pin CD)
This connector allows you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, MPEG card or modem.
8. USB connectors (10-1 pin USB56, USB78)
These connectors are for USB 2.0 ports. Connect the optional
USB/GAME module cable to any of these connectors, then install the
module to a slot opening at the back of the system chassis. These
USB connectors comply with USB 2.0 specication that supports up to
480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will
damage the motherboard!
The USB/GAME module is purchased separately.
R
P5PE-VM
P5PE-VM Internal Audio Connector
CD
(black)
Right Audio Channel
Left Audio Channel
Ground
Ground
R
P5PE-VM
P5PE-VM USB 2.0 Connectors
USB78
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
1
USB56
USB+5V USB_P6- USB_P6+ GND NC
USB+5V
USB_P5-
USB_P5+
GND
1

Asus P5PE-VM Specifications

General

ECC	No
Number of memory slots	2
Maximum internal memory	2 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
CPU fan connector	Yes
USB 2.0 ports quantity	4
Audio chip	ADI AD1888
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Special features	ASUS CPU Lock Free MyLogo CrashFree BIOS2 EZ Flash ASUS C.P.R.
Controller interface type	UltraDMA 100/66/33
Controller 2nd interface type	Serial ATA
LAN controller	Marvell 88E8001
Networking features	Gigabit Ethernet
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	193 mm
Width	245 mm
