2.5.4 PCI slots
The PCI slots support cards such as
a LAN card, SCSI card, USB card,
and other cards that comply with PCI

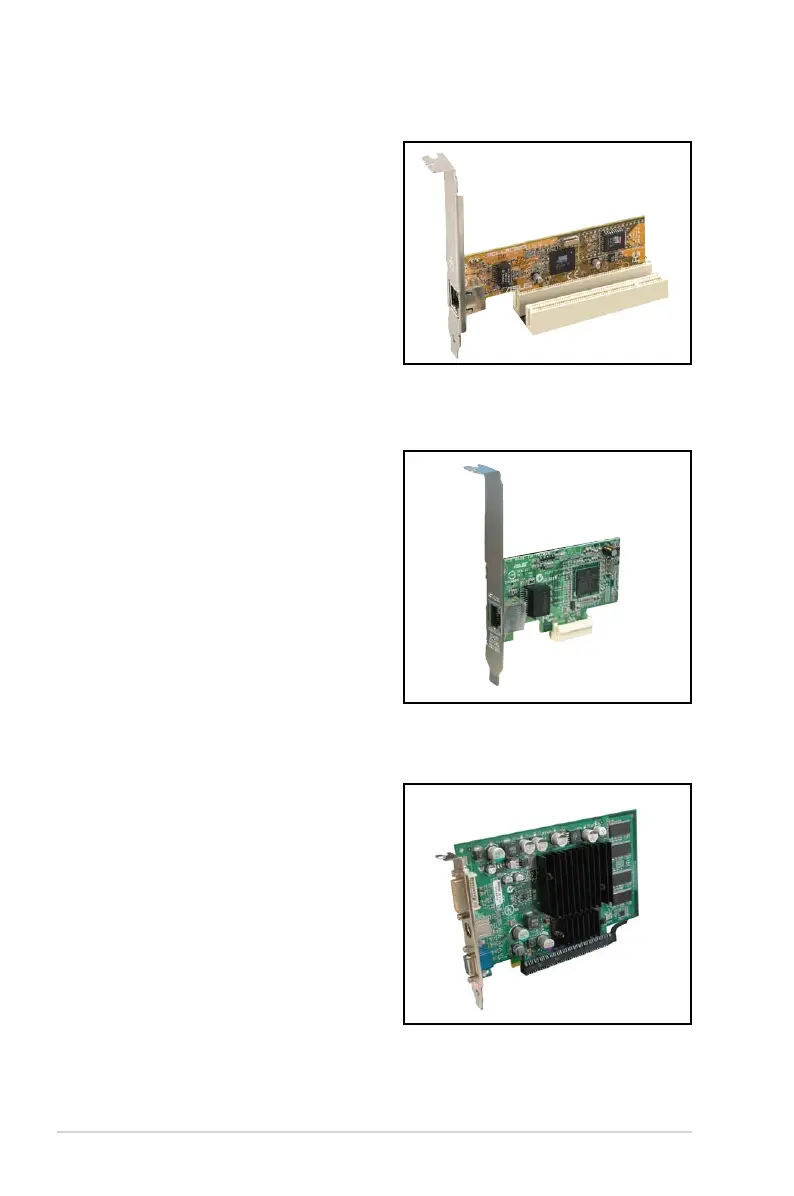

specications. The gure shows a LAN
card installed on a PCI slot.
2.5.5 PCI Express x1 slots
This motherboard supports PCI Express
x1 network cards, SCSI cards and other
cards that comply with the PCI Express
specications. The following gure
shows a network card installed on the
PCI Express x1 slot.
2.5.6 PCI Express 2.0 x16 slot
This motherboard has one PCI Express
2.0 x16 slot that support PCI Express
2.0 x16 graphic cards complying with
the PCI Express specications.
The gure shows a graphics card
installed on the PCI Express 2.0 x16
slot.
