2-22 Chapter 2: Hardware information
2.7 Connectors

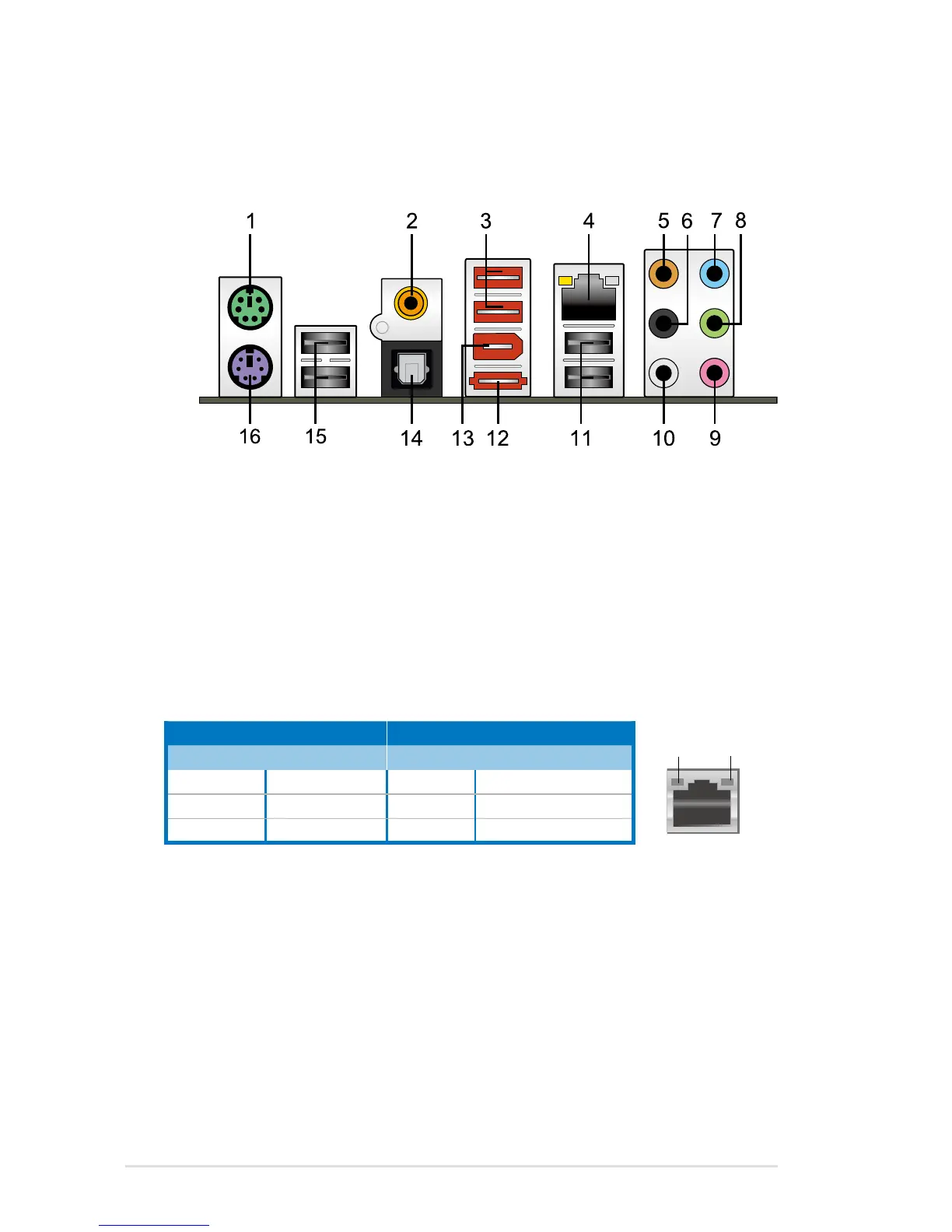

2.7.1 Rear panel connectors
Activity Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
LAN port LED indications
SPEED
LED
ACT/LINK
LED
LAN port
5. Center/Subwoofer port (orange). This port connects the center/subwoofer
speakers.
6. Rear Speaker Out port (black). This port connects the rear speakers on a
4-channel, 6-channel, or 8-channel audio conguration.
7. Line In port (light blue). This port connects the tape, CD, DVD player, or
other audio sources.
8. Line Out port (lime). This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel conguration, the function of this port
becomes Front Speaker Out.
9. Microphone port (pink). This port connects a microphone.
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2
. Coaxial S/PDIF Out port.
This port connects an external audio output device
via a coaxial S/PDIF cable.
3. USB 2.0 ports 1 and 2 .
These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
4. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
