ASUS P5QL PRO 2-3

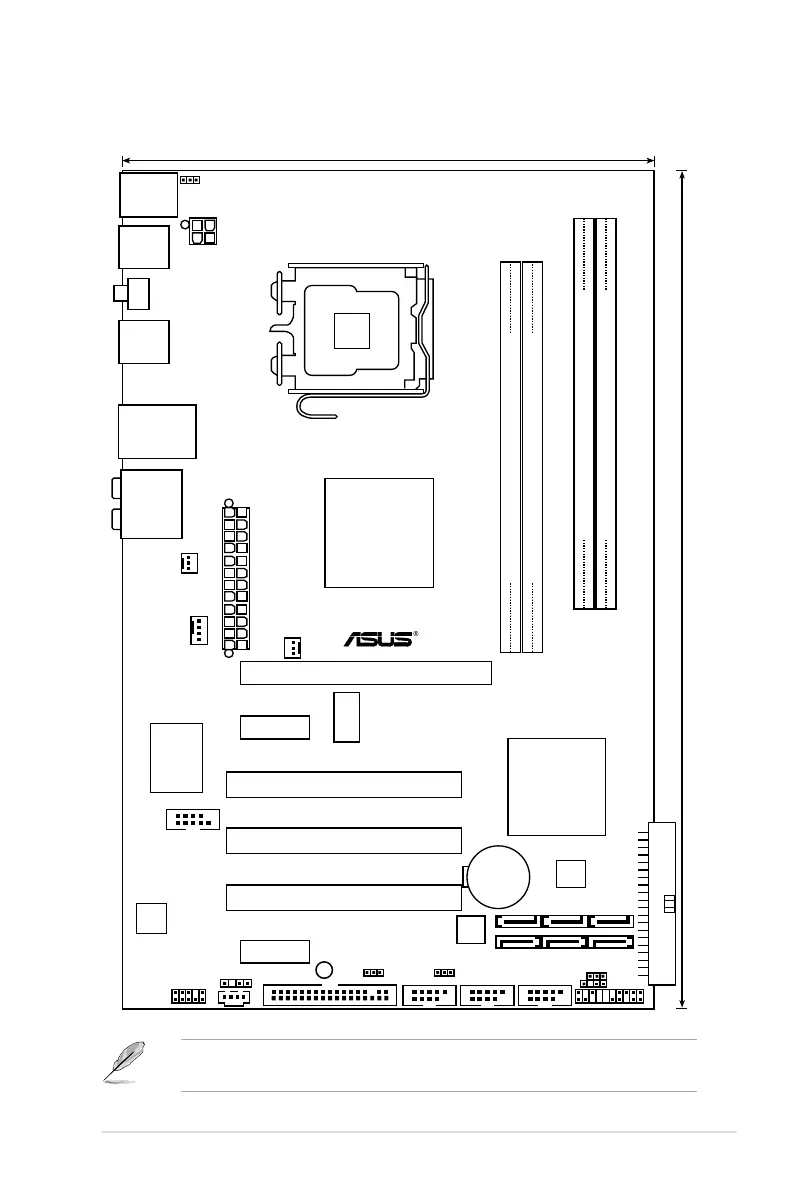

2.2.3 Motherboard layout
Refer to 2.7 Connectors for more information about rear panel connectors and
internal connectors.
30.5cm (12in)
AUDIO
LAN1_USB12
USB34
USB56
PS/2KBMS
T:Mouse
B:Keyboard
LGA775
DDR2 DIMMB1 (64 bit,240-pin module) DDR2 DIMMB2 (64 bit,240-pin module)
DDR2 DIMMA1 (64 bit,240-pin module) DDR2 DIMMA2 (64 bit,240-pin module)
CD
19.3cm (7.6in)
CPU_FAN
Intel
P43
Intel
ICH10
CHASSIS
CLRTC
FLOPPY
PCIEX16
PCI1
PCI2
PCI3
PCIEX1_1
PCIEX1_2
CR2032 3V
Lithium Cell
CMOS Power
4Mb
BIOS
USBPW7-10
USBPW1112
Super I/O
SPDIF_OUT
AAFP
ALC
1200
COM1
PS2_USBPW56
ATX12V
EA
TXPWR
PANEL
SB_PWR
ICS
9LPRS916JGLF
CHA_FAN
PWR_FAN
SPDIF_O1
USB1112 USB78 USB910
Marvell
88SE6102
P5QL PRO
