ASUS P5QL PRO 2-25

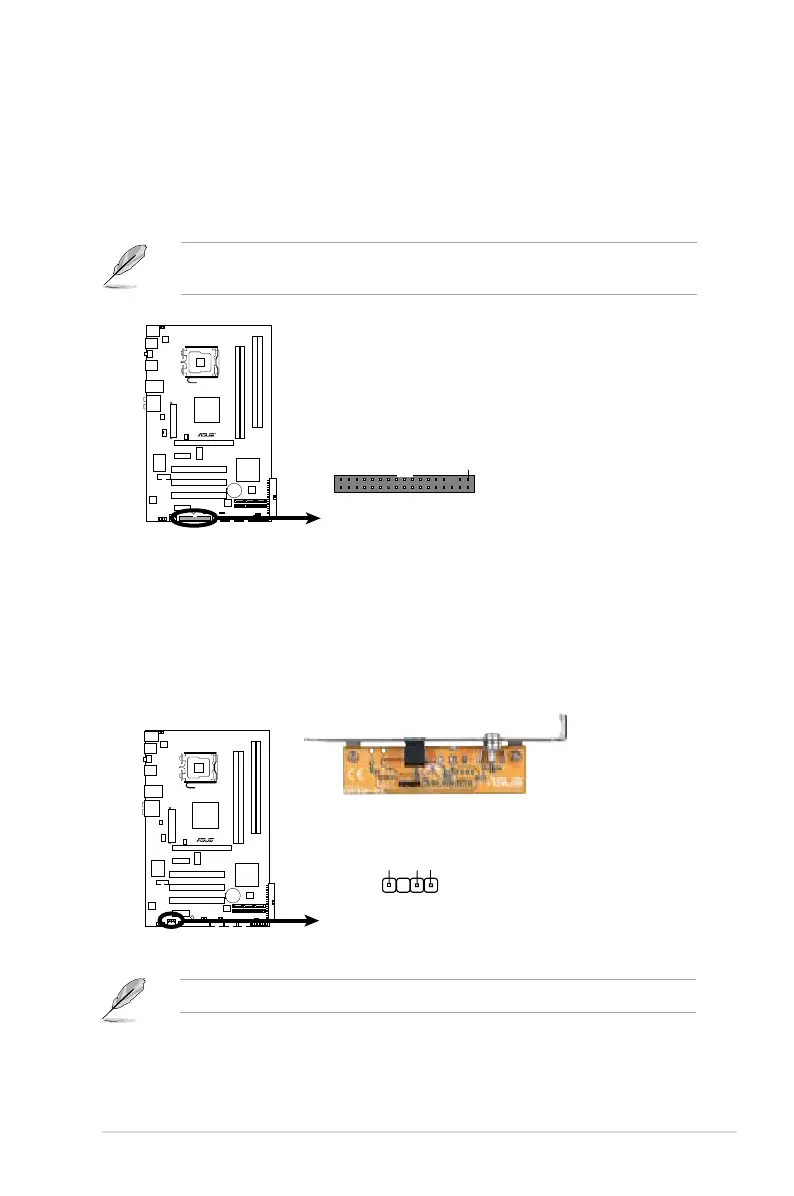

2.7.2 Internal connectors
1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided oppy disk drive (FDD) signal cable. Insert
one end of the cable to this connector, then connect the other end to the
signal connector at the back of the oppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection when
using a FDD cable with a covered Pin 5.
P5QL PRO Floppy Disk Drive Connector
PIN
1
NOTE:
Orient the red markings on
the floppy ribbon cable to PIN 1.
FLOPPY
P5QL PRO
2. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF)
port(s). Connect the S/PDIF Out module cable to this connector, then install
the module to a slot opening at the back of the system chassis.
The S/PDIF module is purchased separately.
P5QL PRO Digital Audio Connector
+5V
SPDIFOUT
GND
SPDIF_OUT
P5QL PRO
