ASUS P8H67 1-23
1.10 Connectors

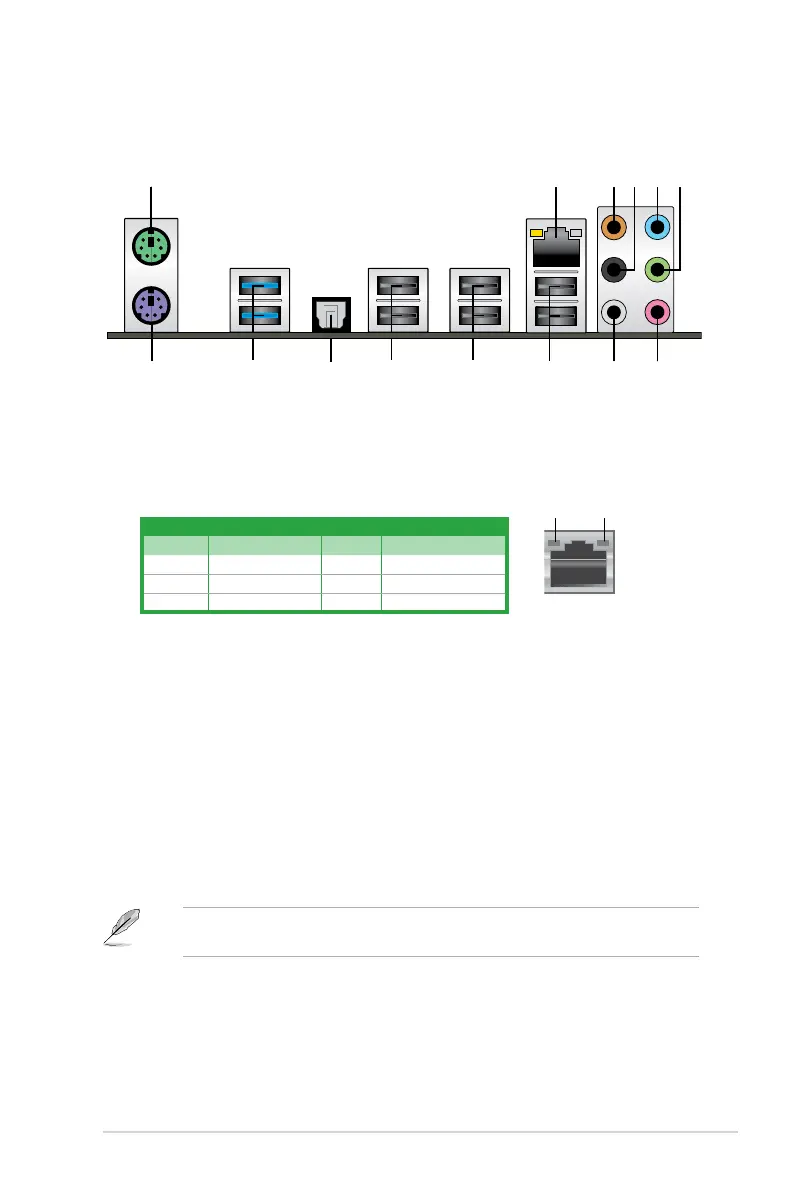

1.10.1 Rear panel connectors
1. PS/2 Mouse port. This port is for a PS/2 mouse.
2. LAN (RJ-45) port.
This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indicators.
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
LAN port LED indications
LAN port
SPEED
LED
ACT/LINK
LED
Refer to the audio conguration table on the next page for the function of the audio ports in
the 2, 4, 6, or 8-channel conguration.
3. Center / Subwoofer port (orange). This port connects the center/subwoofer speakers.
4. Rear Speaker Out port (black). This port connects the rear speakers in a 4-channel,
6-channel, or 8-channel audio conguration.
5. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
6. Line Out port (lime)
. This port connects a headphone or a speaker. In 4-channel, 6-
channel, and 8-channel congurations, the function of this port becomes Front Speaker
Out.
7. Microphone port (pink)
. This port connects a microphone.
8. Side Speaker Out port (gray). This port connects the side speaker in an 8-channel
audio conguration.
