1.12 Onboard LEDs
1. Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that the
system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any
motherboard component. The illustration below shows the location of the onboard LED.
2. DRAM LED
DRAM LED checks the DRAM in sequence during motherboard booting process. If an
error is found , the LED next to the error device will continue lighting until the problem
is solved. This user-friendly design provides an intuitional way to locate the root
problem within a second.

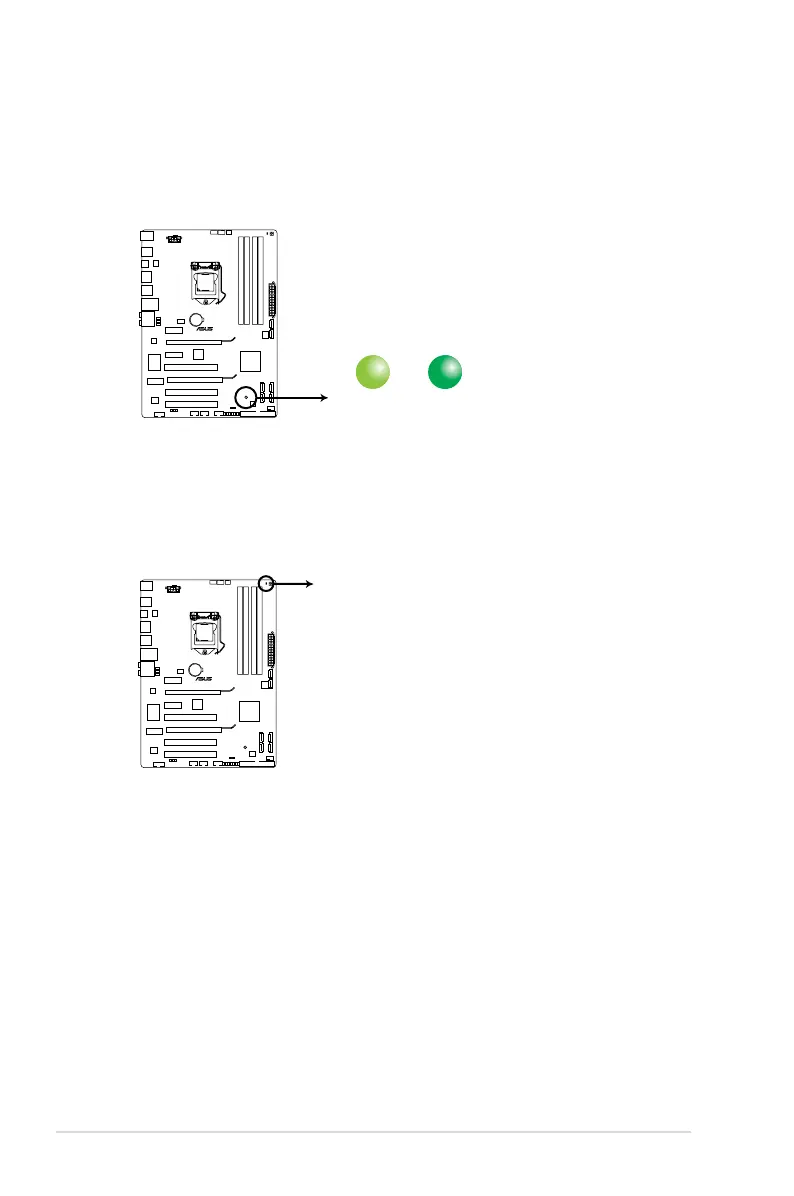

P8H67
SB_PWR
ON
Standby Power Powered Off
OFF
P8H67 Onboard LED
P8H67 DRAM LED
DRAM LED
P8H67

Asus P8H67 Specifications

General

Form Factor	ATX
Chipset	Intel H67
Socket	LGA 1155
Memory Slots	4 x DIMM
Maximum Memory	32GB
Memory Type	DDR3
PCI Express x1 Slots	2
PCI Slots	3
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 3.0 Ports	2
USB 2.0 Ports	12
PCI Express x16 Slots	1
Onboard Video	Yes
LAN	Realtek 8111E
Audio	Realtek ALC887
RAID Support	Yes (RAID 0, 1, 5, 10)
