Asus P8H67 User Manual

1-30 Chapter 1: Product introduction

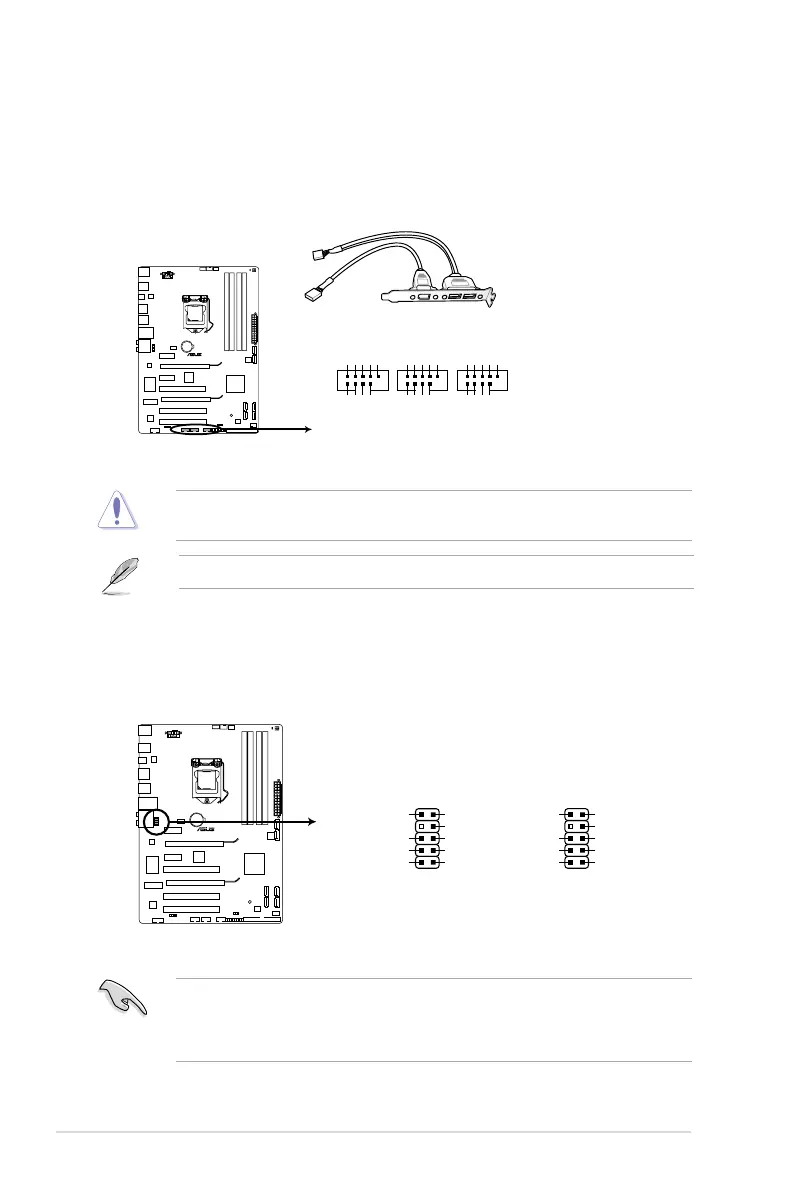

8. USB connectors (10-1 pin USB78, USB910, USB1112 )
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with the USB 2.0 specication that supports up
to 480Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
P8H67
P8H67 USB2.0 connectors
USB+5V USB_P12- USB_P12+ GND NC
USB+5V
USB_P11-
USB_P11+
GND
USB910
PIN 1
USB+5V USB_P14- USB_P14+ GND NC
USB+5V
USB_P13-
USB_P13+
GND
USB1112
PIN 1
USB+5V USB_P10- USB_P10+ GND NC
USB+5V
USB_P9-
USB_P9+
GND
USB78
PIN 1
9. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either High Denition Audio or AC`97 audio standard. Connect one end of the front
panel audio I/O module cable to this connector.
P8H67
P8H67 Front panel audio connector
AAFP
PIN 1 PIN 1
SENSE2_RETUR
SENSE1_RETUR
PRESENCE#
GND
PORT2 L
SENSE_SEND
PORT2 R
PORT1 R
PORT1 L
HD-audio-compliant
pin definition
NC
NC
NC
AGND
Line out_L
NC
Line out_R
MICPWR
MIC2
Legacy AC’97
compliant definition
If you want to connect a high-denition front panel audio module to this connector, ensure
that the Front Panel Type item in the BIOS is set to [HD Audio]. If you want to connect an
AC97 front panel audio module to this connector, set the item to [AC97]. See section 2.5.6
Onboard Devices Conguration for details.

Asus P8H67 Specifications

General

Form Factor	ATX
Chipset	Intel H67
Socket	LGA 1155
Memory Slots	4 x DIMM
Maximum Memory	32GB
Memory Type	DDR3
PCI Express x1 Slots	2
PCI Slots	3
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 3.0 Ports	2
USB 2.0 Ports	12
PCI Express x16 Slots	1
Onboard Video	Yes
LAN	Realtek 8111E
Audio	Realtek ALC887
RAID Support	Yes (RAID 0, 1, 5, 10)
