Asus P8Z77-V LE User Manual

2-2 Chapter 2: Hardware information
Chapter 2

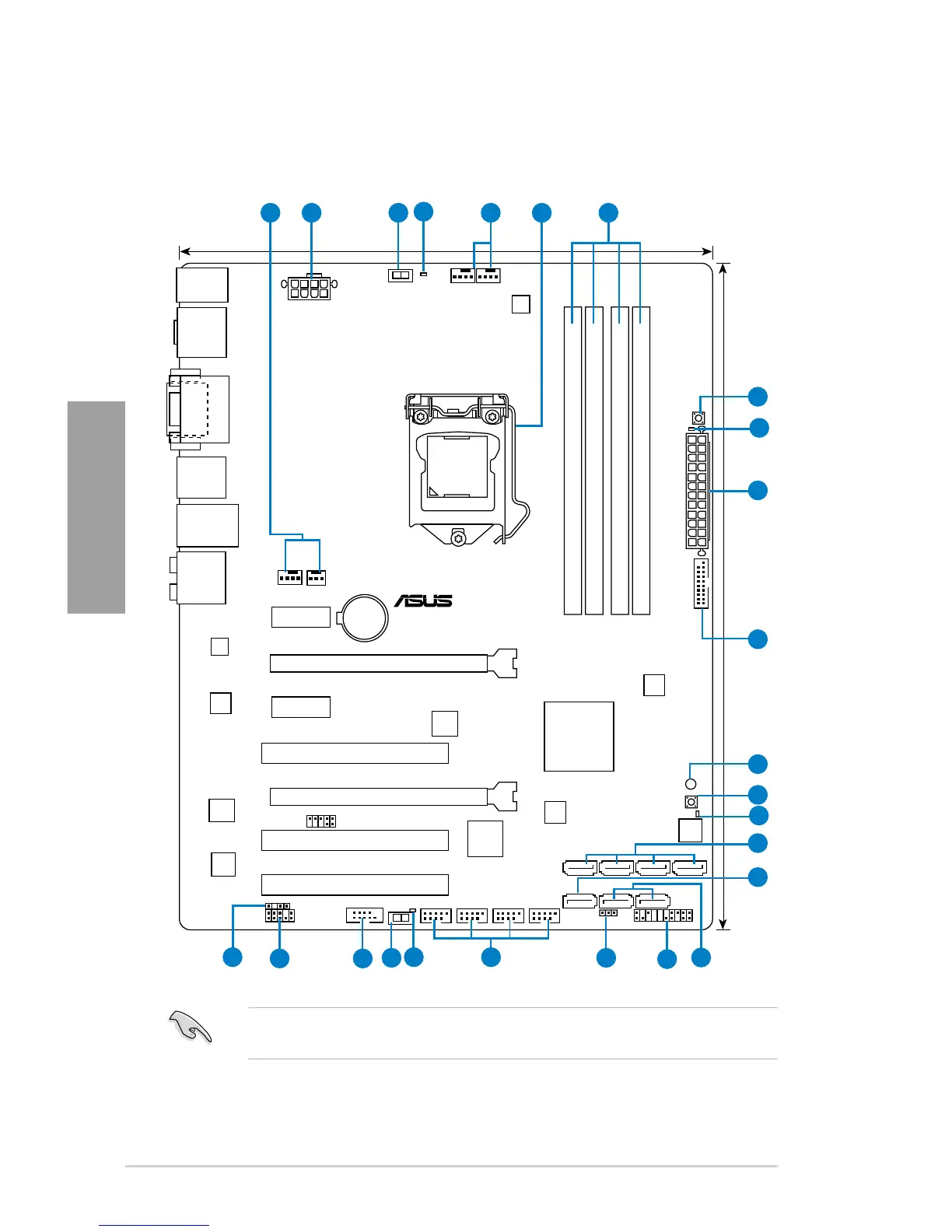

2.2.1 Motherboard layout
Refer to
2.2.8 Connectors
and
2.3.9 Rear panel connection
for more information about
rear panel connectors and internal connectors.
2.2 Motherboard overview
P8Z77-V LE
PCIEX16_1
PCIEX16_2
PCIEX1_2
PCIEX1_1
PCI1
PCI2
PCI3
USB910 USB78 USB56 USB34
USB3_56
PANEL
SPDIF_OUT
AAFP
CPU_FAN
CHA_FAN2
CHA_FAN1
PWR_FAN
Lithium Cell
CMOS Power
Super
I/O
ALC
892
DIGI
+EPU
RTL
8111F
TPU
COM1
64Mb
BIOS
SB_PWR
CLRTC
24.4cm(9.6in)
30.5cm(12.0in)
Intel
®
Z77
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module)
ESATA6G
USB3_34
ASM
1083
ASM
1042
MemOK!
DRAM_LED
BIOS_FLBK
FLBK_LED
TPU
TPU_LED
EPU
EPU_LED
EATXPWR
LGA1155
AUDIO
KB_USB12
LAN_USB3_12
SPDIFO
_HDMI
_DP
DVI_VGA
EATX12V
Marvell
®
PCIe SATA
6Gb/s
Controller
TB_Header
ASM
1314
1 2 63 51
2
7
13
14
11
10
15
9
8
12
4
21
20
19
22
17
16
18
23

Asus P8Z77-V LE Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
Number of SATA III connectors	3
Number of Parallel ATA connectors	0
Headphone outputs	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel Z77
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	2560 x 1600 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	2-Way CrossFireX, LucidLogix Virtu, Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x4, 1x16
Controller 2nd interface type	Marvell PCIe SATA 6Gb/s
LAN controller	Realtek RTL8111F
Wi-Fi standards	Not supported
Networking features	Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
