2.2.9 Internal connectors
1. Intel
®

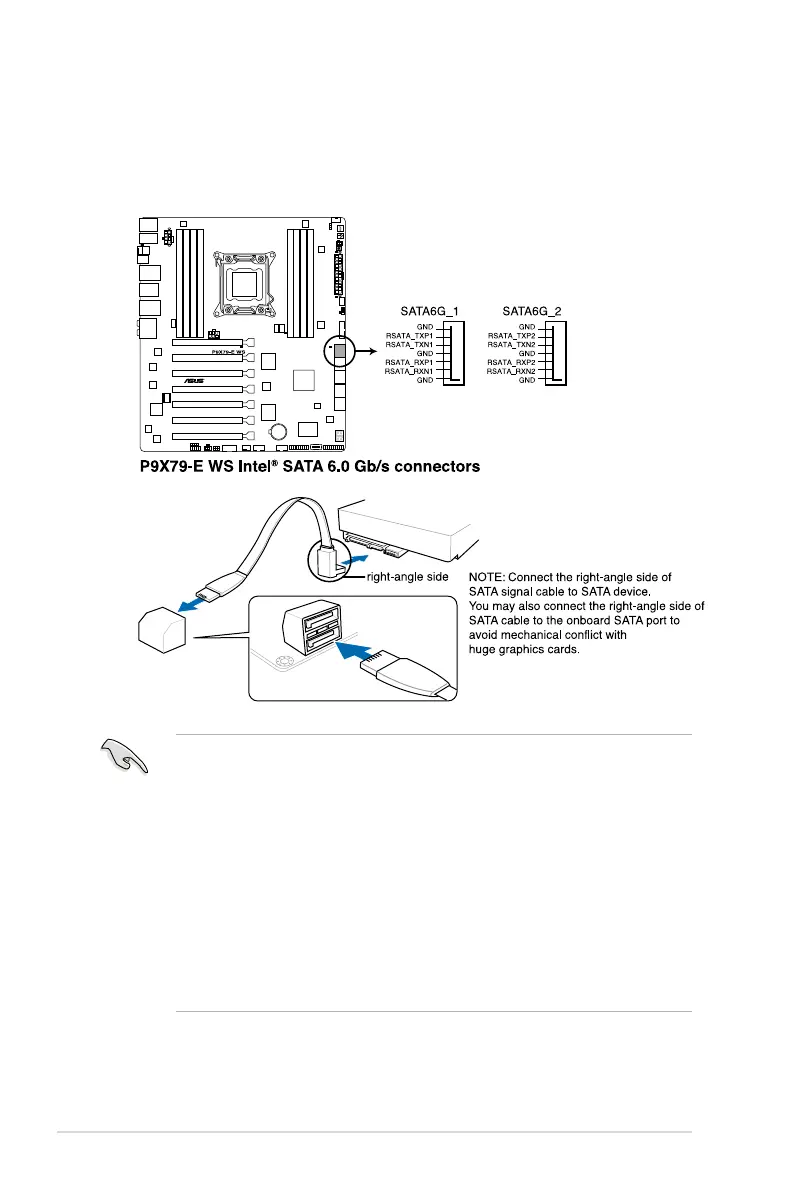

X79 Serial ATA 6.0 Gb/s connectors (7-pin SATA6G_1/2 [gray])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
• These connectors are set to [IDE Mode] by default. If you intend to create a Serial
ATA RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID
Mode]. Refer to section 3.5.4 SATA Conguration for details.
• Before creating a RAID set, refer to section 4.4 RAID congurations or the manual
bundled in the motherboard support DVD.
• When using hot-plug and NCQ, set the SATA Mode in the BIOS to [AHCI Mode]. Refer
to section 3.5.4 SATA Conguration for details.
• You must install Windows
®
XP Service Pack 3 or later versions before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows
®
XP SP3 or later versions.
• You must load
IRST Driver
during OS installation for the system to detect the Optical
Disk Drive (the ODD should be connected to the SATA_3G port), or else the ODD will
not run.
2-26
Chapter 2: Hardware information
