1.1.9 Internal connectors
1. Intel
®

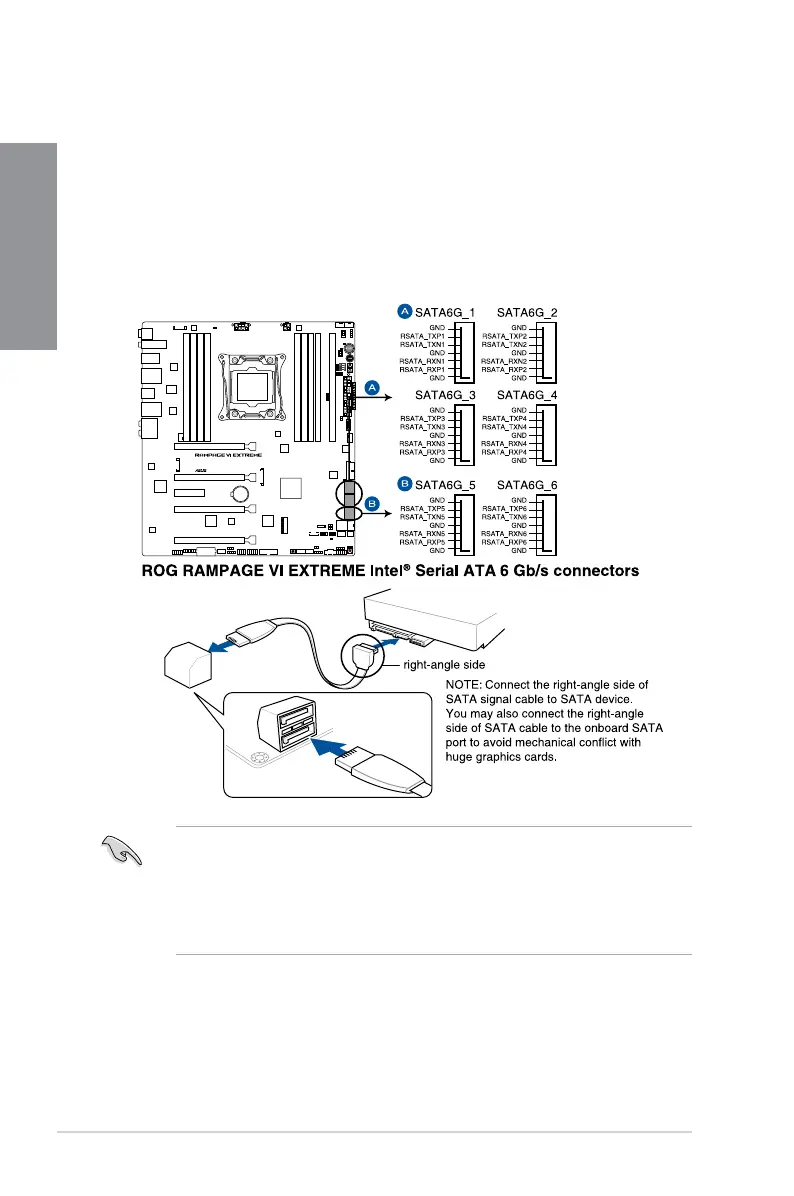

Serial ATA 6 Gb/s connectors (7-pin SATA6G_12; SATA 6G_34;
SATA 6G_56)
TheseconnectorsconnecttoSerialATA6Gb/sharddiskdrivesviaSerialATA6Gb/s
signalcables.
IfyouinstalledSerialATAharddiskdrives,youcancreateaRAID0,1,5,and10
congurationwiththeIntel
®
RapidStorageTechnologythroughtheonboardIntel
®

X299chipset.
• Theseconnectorsaresetto[AHCI Mode]bydefault.IfyouintendtocreateaSerial
ATARAIDsetusingtheseconnectors,settheSATAModeitemintheBIOSto[Intel
RST Premium With Intel Optane System Acceleration (RAID)].
• DuetothewayIntelreadsdrivenumbersbasedonthePCHpinout,theSATAdrive
namingontheIRSTdriverwillbeshiftedby2(i.e.SATA_1willbereportedasinternal
emptyport3.

Asus ROG RAMPAGE VI EXTREME Specifications

General

Form Factor	E-ATX
Chipset	Intel X299
Socket	LGA 2066
Memory Channels	Quad Channel
Memory Support	DDR4
Memory Speed	4133+(OC) MHz
Storage	1 x U.2
USB Ports	4 x USB 2.0
Networking	Intel I219V
Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC
RGB Lighting	Aura Sync RGB
PCIe Slots	4 x PCIe 3.0 x16, 1 x PCIe 3.0 x4
