Asus Z170-K User Manual

The following item appears only when you set the CPU Core Voltage Mode to [Offset
Mode].
Offset Mode Sign [+]
[+] To offset the voltage by a positive value.
[–] To offset the voltage by a negative value.
CPU Graphics Voltage Offset [Auto]
This item allows you to congure the CPU Graphics Voltage Offset. Use the <+> or <-> keys
to adjust the value. The values range from 0.001V to 0.999V with a 0.001V interval.
2.5.23 PCH Core Voltage [Auto]
This item allows you to set the PCH core voltage. Use the <+> and <-> keys to adjust the
value. The values range from 0.700V to 1.800V with a 0.005V interval.
2.5.24 DRAM REF Voltage Control [Auto]
The subitems in this menu allows you to set the DRAM reference voltage on the control lines
from the memory bus. You can use the <+> or <-> keys to adjust the value.

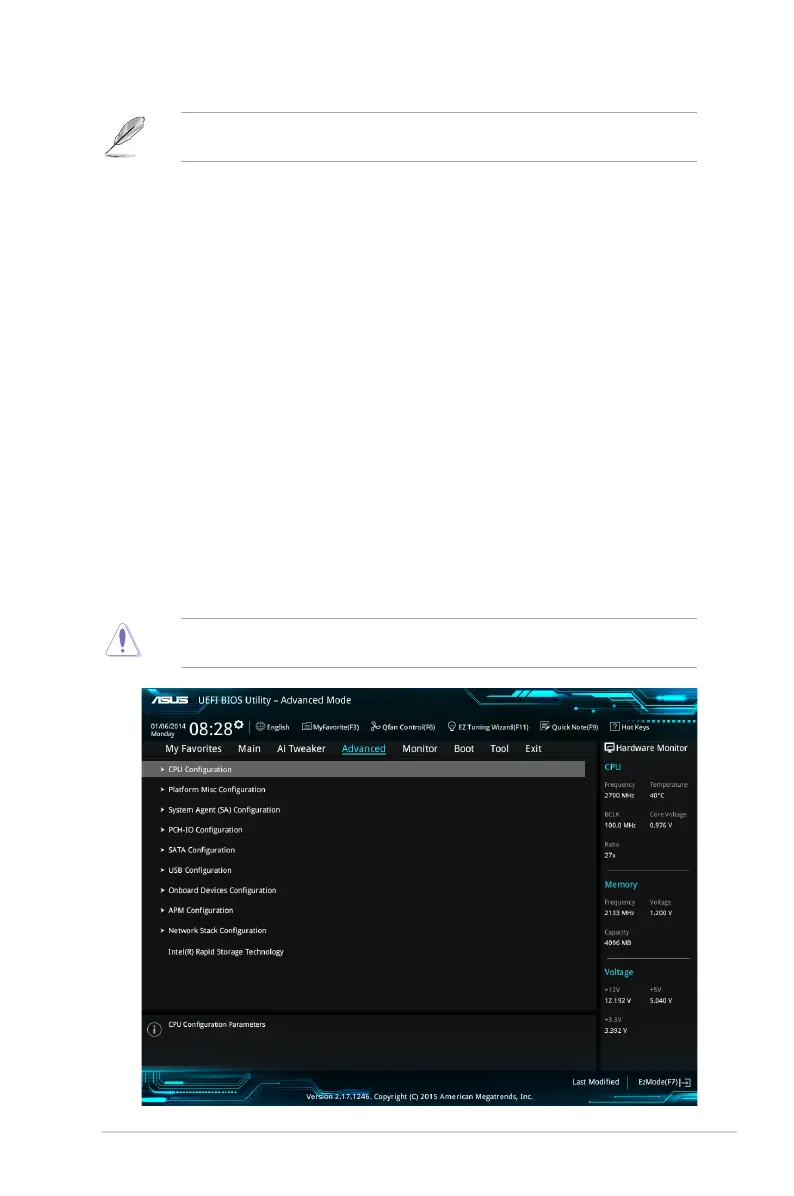

2.6 Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other system
devices.
Be cautious when changing the settings of the Advanced menu items. Incorrect eld values
can cause the system to malfunction.
ASUS Z170-K 2-27

Asus Z170-K Specifications

General

Memory channels	Dual-channel
Memory slots type	DIMM
Unbuffered memory	Yes
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	3300, 2600, 3333, 3400, 2800, 3466, 2133, 3000, 2400, 3200 MHz
Supported memory module capacities	16GB
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	2
Number of COM connectors	1
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
S/PDIF out port	No
USB connector type	USB Type-B, USB Type-C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel® Z170
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 7 Enterprise, Windows 8, Windows 10 Education, Windows 7 Enterprise x64, Windows 8 Enterprise, Windows 10 Education x64, Windows 7 Home Basic, Windows 8 Enterprise x64, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 8 Pro, Windows 10 Enterprise x64, Windows 7 Home Premium, Windows 8 Pro x64, Windows 10 Home, Windows 7 Home Premium x64, Windows 8 x64, Windows 10 Home x64, Windows 7 Professional, Windows 8.1, Windows 10 Pro, Windows 7 Professional x64, Windows 8.1 Enterprise, Windows 10 Pro x64, Windows 7 Starter, Windows 8.1 Enterprise x64, Windows 7 Starter x64, Windows 8.1 Pro, Windows 7 Ultimate, Windows 8.1 Pro x64, Windows 7 Ultimate x64, Windows 8.1 x64
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	Quad-GPU CrossFireX
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit
Cables included	SATA
Bundled software	ASUS Utilities, ASUS EZ Update, Anti-virus software (OEM version)

Weight and Dimensions

Depth	224 mm
Width	305 mm
