Asteroids
COIN RETURN BUTTON ASSY .
SEE PARTS LIST
(99-10012 thru 99-10022)
COIN DOOR ONLY
SEE PARTS LIST
(99-10009 thru 99-10010)
99-10094
REJECT BUTTON COVER
SEE PARTS LIST (99-10055 thru 99-10059)
PRICE PLATE
SEE PARTS LIST
(99-10070, 99-10083
thru 99-10092)
99-10062
72-JA1405B
99-10054
72-HA1404C
PART OF
99-10049
NOTICE TO ALL PERSONS RECEIVING THIS DRAWING
CONFIDENTIAL: Reproduction forbidden without the
specific written permission of Atari, Ipc., Sunnyvale,
California. This drawing is only conditionally issued, and
neither receipt nor possession thereof confers or transfers
any right in, or license to use, the subject matter of the
drawing or any design or technical inform ation shown
thereon, nor any right to reproduce this drawing or any part
thereof, except for m anufacture by vendors of Atari, Incor
porated and for m anufacture under the corporation's w rit
ten license, no right to reproduce this drawing is granted
or the subject matter thereof unless by written agreement
with or written permission from the corporation.
99-10061
99-10066
75-915S
72-JA1405B
99-10051

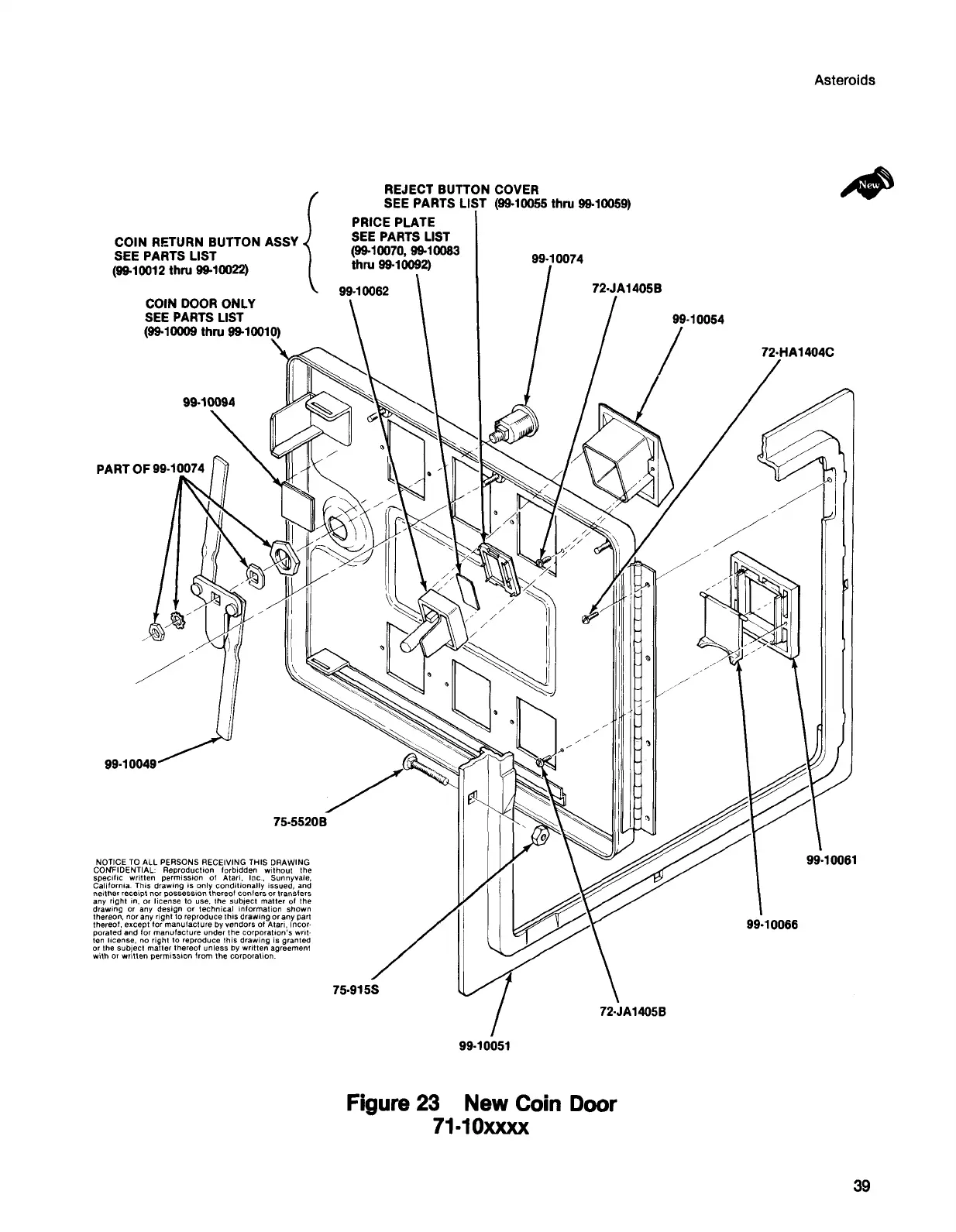

Figure 23 New Coin Door
71-10xxxx
39
To Next Page
