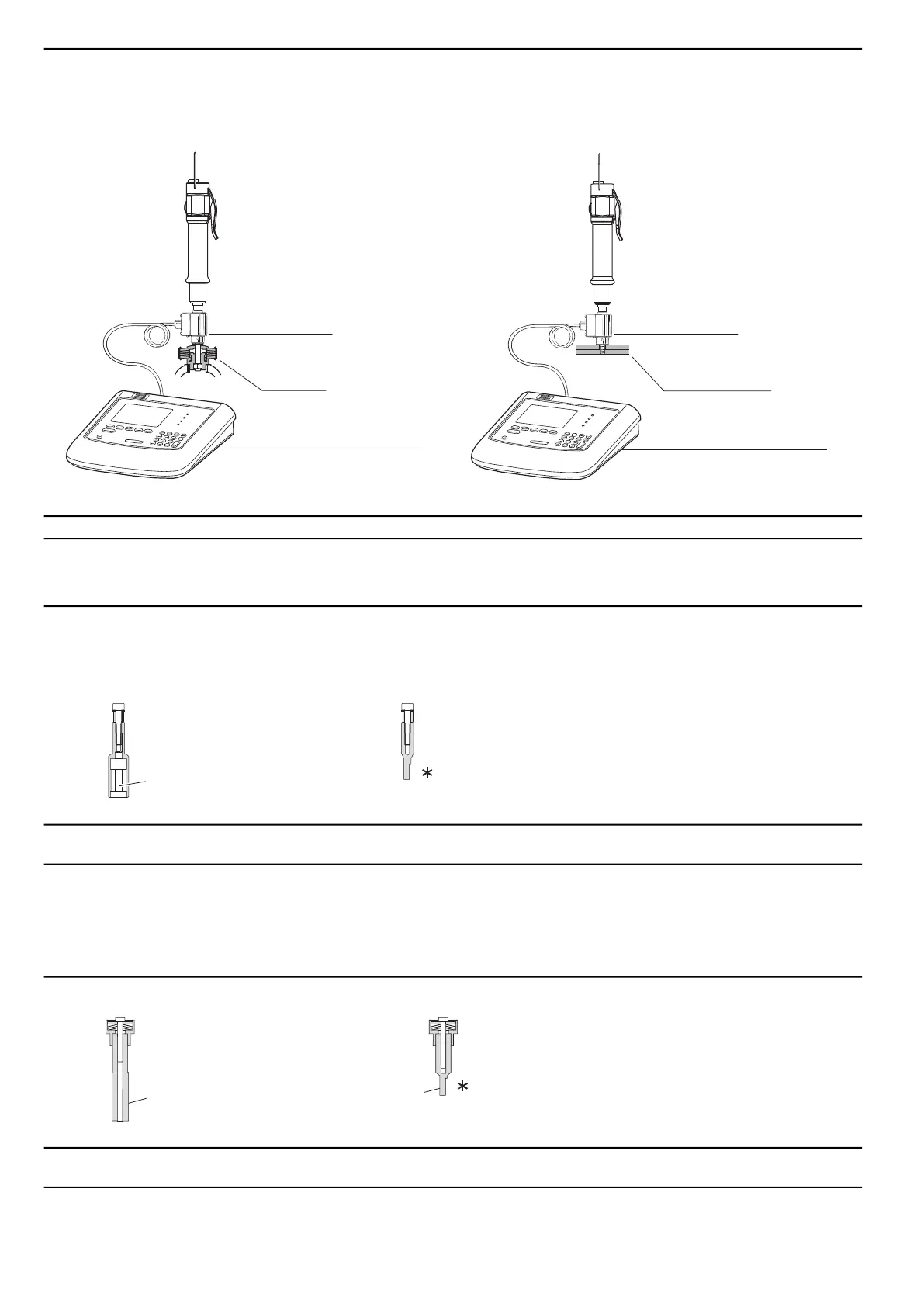

Testing of tightening torque
Torque and angle testing instrument
In the workshop At the assembly line
Yo u r actual joint
Te s t joint
To r que and angle testing
instrument, ACTA 4000
To r que transducer
To r que transducer
To r que and angle testing
instrument, ACTA 4000
s011990
Ordering No.NBModel
8092 1177 20See our main catalogue or separate leafletACTA 4000 – Basic
8092 1177 30See our main catalogue or separate leafletACTA 4000 – QC
8092 1177 40See our main catalogue or separate leafletACTA 4000 – AA
Testjoint and Transducer
Select testjoint and transducers according to minimum and maximum torque of your tool
Test joints - Hard joints
s009510
1/4" female hex connection
Spare screw
Ordering No.Screw qualityScrew size
Test joint
Ordering No.
Torque range
(Nm)
buy locally12.9M2x164145 0958 860.05 - 0.25
buy locally12.9M3x304145 0958 870.25 - 0.6
0211 1181 0012.9M4x504145 0958 800.5 - 1.5
0211 1177 0012.9M4x304145 0958 811.5 - 3.0
0211 1256 0012.9M6x604145 0958 823.0 - 6.0
100° joints
s009120
1/4" male hex connection
Ø 3mm
Spare screw
Ordering No.Screw qualityScrew size
Test joint
Ordering No.
Torque range
(Nm)
0211 1965 4512.9M2x164145 0958 720.04 - 0.1
© Atlas Copco Industrial Technique AB - 9836 8184 00
6
EBL12ENOperation
