Atlas Copco EBL12 User Manual

Exploded views/tables
Spare parts
Parts without ordering number are not delivered separately for technical reasons.
The use of other than genuine Atlas Copco replacement parts may result in decreased tool performance and
increased maintenance and may, at the company option, invalidate all warranties.

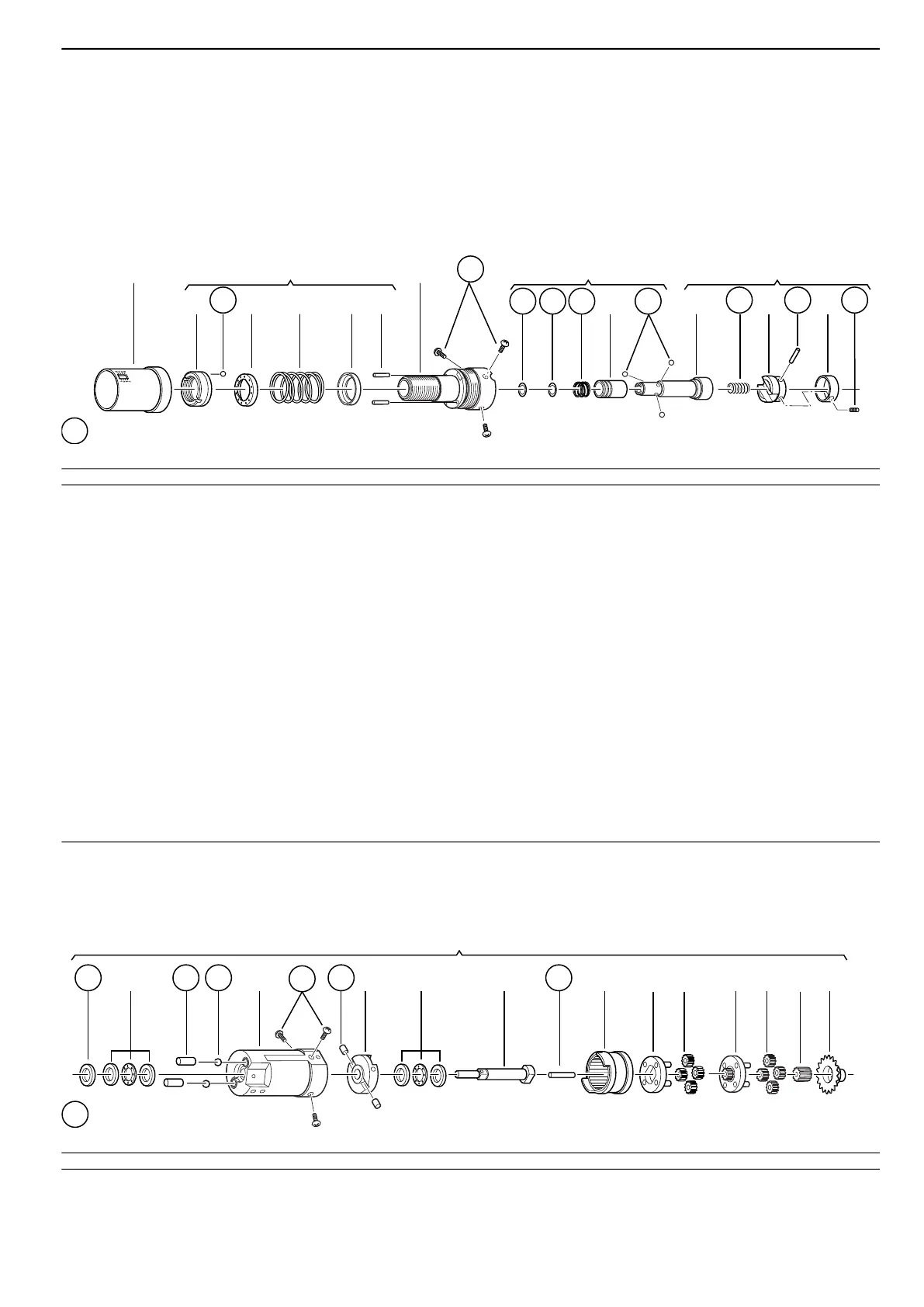

Front part
1 2
3 4 5 6 7 8
9 10 11
12 13 14 15 16
17
18 19 20 21 22 23
= Included in Service Kit
2011370
Remark / Included in Service kitDescriptionQtyOrdering No.Ref. No.
Cover14216 0089 001
Adjusting kit14216 0213 902(3-8)
Adjusting Nut1-3
Ø 2 mm / Service kit 4216 0230 90Ball10517 1153 004
Adjusting Washer1-5
2.3x5.5Spring1-6
Washer1-7
2x10.6 / Service kit 4216 0234 90Pin2-8
Clutch spindle14216 0094 009
2.6x5 / Service kit 4216 0232 90Screw3-10
Quick change chuck14216 0059 9011(12-16)
8.4x1 / Service kit 4216 0233 90Lock ring1-12
9.6x11.6x0.5 / Service kit 4216 0233 90Washer1-13
9.6x7 / Service kit 4216 0231 90Spring1-14
Sleeve1-15
Ø 2 mm / Service kit 4216 0230 90Ball30517 1153 0016
Shaft, compl.14216 0216 9017(18-23)
Shaft1-18
4.8x14 / Service kit 4216 0231 90Spring1-19
Driver1-20
2.0x10.6 / Service kit 4216 0234 90Pin1-21
Sleeve1-22
2.6x3 / Service kit 4216 0232 90Screw1-23
Gear
1
2 3 34 5 6
7
8 9 10 11 12 13 14
15 16
17 18
2011380
= Included in Service Kit
Remark / Included in Service kitDescriptionQtyOrdering No.Ref. No.
Gear, compl.14216 0217 901(2-18)
6x10x0.9 / Service kit 4216 0233 90Washer1-2
6x11Axial bearing2-3
71
© Atlas Copco Industrial Technique AB - 9836 8184 00
Spare part listENEBL12
