7

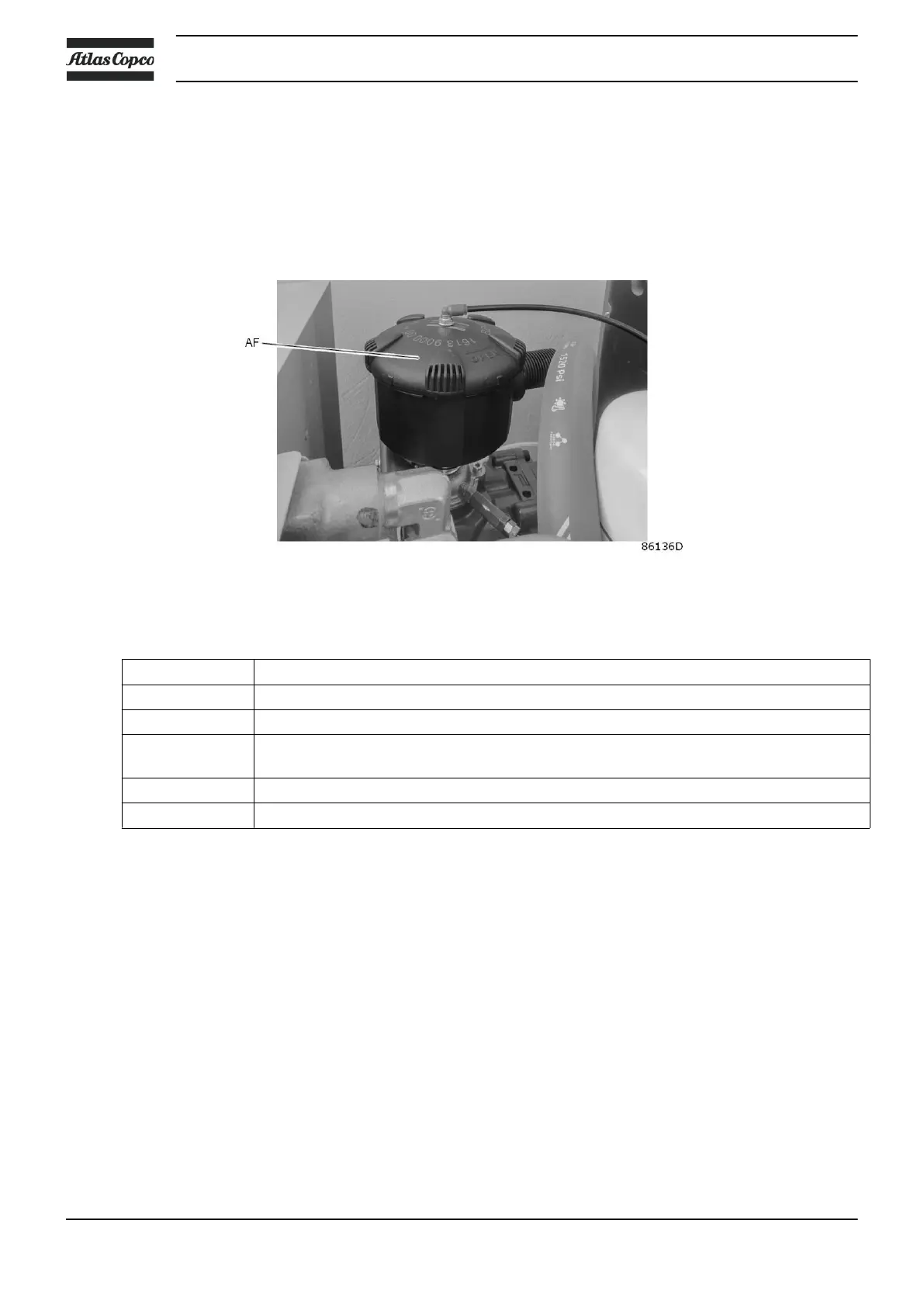

Adjustments and servicing procedures
7.1
Air filter
Changing the air filter
Air filter
Procedure:
Step
Action
1
Stop the compressor, close the air outlet valve and switch off the voltage.
2
Remove the front panel and the top panel of the compressor housing.
3
Unscrew the filter cover (AF) and remove the filter element. Discard the air filter
element.
4
Fit the new element and screw on the filter cover.
5
Refit the top and front panels.
Instruction book
72
2920 7199 10
73
75
Table of Contents
Table of Contents
4
Safety Precautions
7
Safety Icons
7
General Safety Precautions
7
Safety Precautions During Installation
8
Safety Precautions During Operation
9
Safety Precautions During Maintenance or Repair
10
Dismantling and Disposal
12
General Description
13
Introduction
13
Air Flow
15
Oil System
18
Cooling System
20
Regulating System
22
Control Panel
24
Electrical System
25
Protection of the Compressor
27
Air Dryer
28
Controller
29
Ontroller
29
Control Panel
31
Icons Used on the Display
32
Main Screen
33
Main Function
34
Shutdown Warning
36
Shutdown
37
Service Warning
39
Scrolling through All Screens
41
Calling up Running Hours
42
Calling up Motor Starts
43
Calling up Module Hours
43
Calling up Loading Hours
44
Calling up Load Solenoid Valve
44
Calling Up/Resetting the Service Timer
45
Calling Up/Modifying Pressure Band Selection
45
Calling Up/Modifying Pressure Band Settings
46
Calling Up/Modifying the Unit of Temperature
46
Calling Up/Modifying the Unit of Pressure
46
Calling Up/Modifying Backlight Time
47
Activating Automatic Restart after Voltage Failure
47
Keyboard Lock
48
Installation
49
Installation Proposal
49
Dimension Drawings
51
Electrical Connections
52
Pictographs
55
Operating Instructions
57
Initial Start-Up
57
Starting
61
Stopping
64
Taking out of Operation
66
Maintenance
68
Preventive Maintenance Schedule
68
Drive Motor
69
Oil Specifications
70
Oil, Filter and Separator Change
71
Storage after Installation
73
Service Kits
73
Adjustments and Servicing Procedures
74
Air Filter
74
Coolers
75
Safety Valve
75
Belt Set Exchange and Tensioning
77
Problem Solving
79
Technical Data
82
Electric Cable Size
82
Settings for Overload Relay and Fuses
83
Reference Conditions and Limitations
84
Compressor Data
84
Instructions for Use
88
Guidelines for Inspection
89
Pressure Equipment Directives
90
Declaration of Conformity
91
