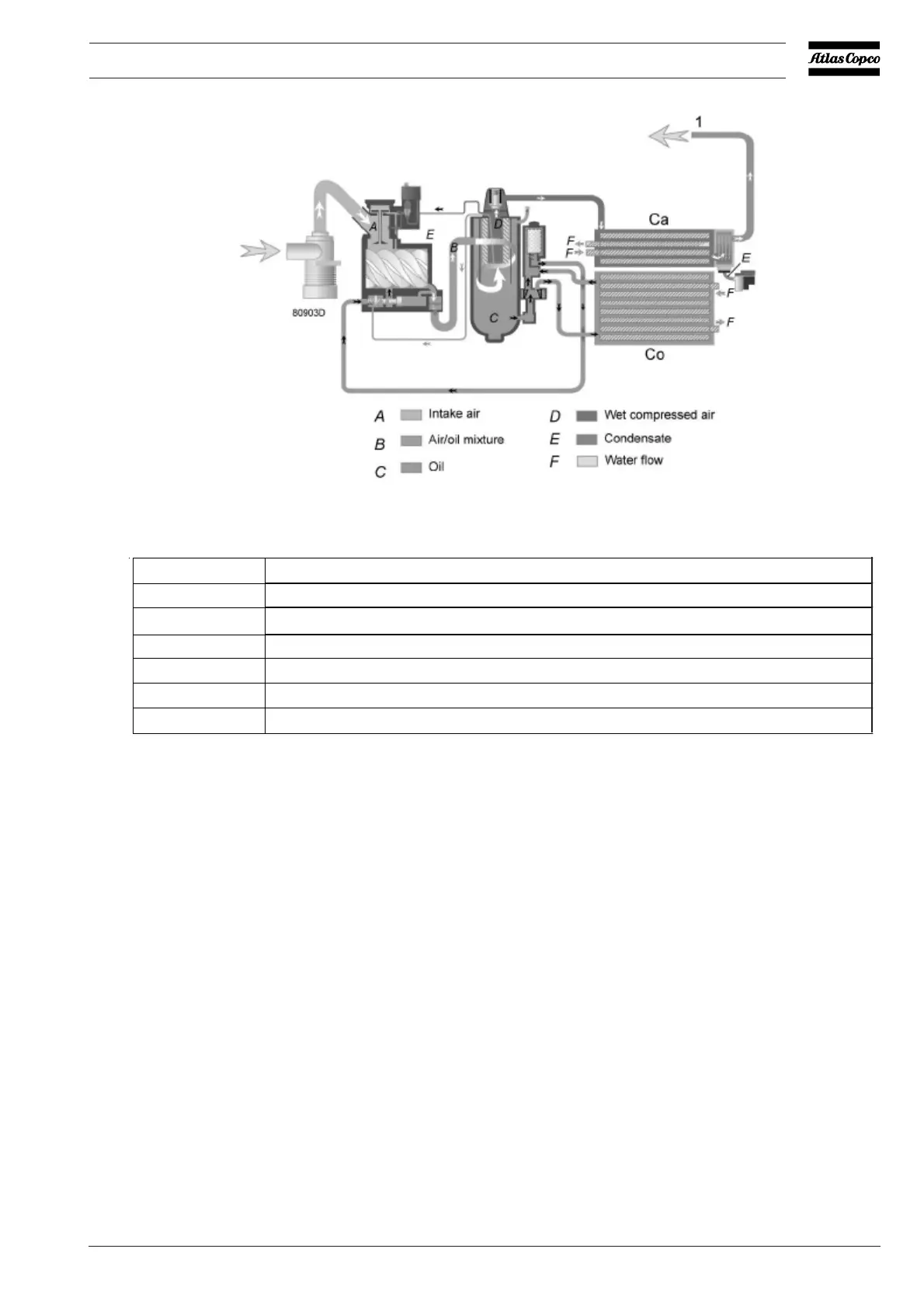

References Description
A Intake air
B Air/oil mixture
C Oil
D Wet compressed air
E Condensate
F Water flow
Description
The cooling system comprises air cooler (Ca) and oil cooler (Co).
On air-cooled compressors, the cooling air flow is generated by fan (FN).
Water-cooled compressors are connected to a cooling water circuit. The water flows through the inlet
pipe,the coolers and the outlet pipe.
Cooling system,water-cooled compressors

Atlas Copco GA 37+ Specifications

General

Model	GA 37+
Category	Air Compressor
Motor Power	37 kW
Cooling System	Air-cooled
Drive Type	Direct drive
Working Pressure	7.5-13 bar
Noise Level	69 dB(A)
