2920 1454 00
20
Instruction book
14 Switch off the voltage and depressurize the compressor
before starting maintenance or repairs
15 Consult Instruction book before greasing
16 Manual condensate drain
17 Automatic condensate drain
18 Torques for steel (Fe) or brass (CuZn) bolts
19 Compressor remains pressurized for 30 seconds after
switching off the voltage
20 Keep the doors closed during operation
21 Nozzle position, regreasing or automatic operation
22 Switch off voltage before removing protecting cover
inside electric cubicle
23 Lightly oil the gasket of the oil filter, screw it on and
tighten by hand (approx. half a turn)
24 Stop the compressor before cleaning the coolers
25 Switch off the voltage and wait for at least 6 minutes
before removing the screen
26 Before connecting compressor electrically, consult
the Instruction book for the motor rotation direction
27 Warning, voltage

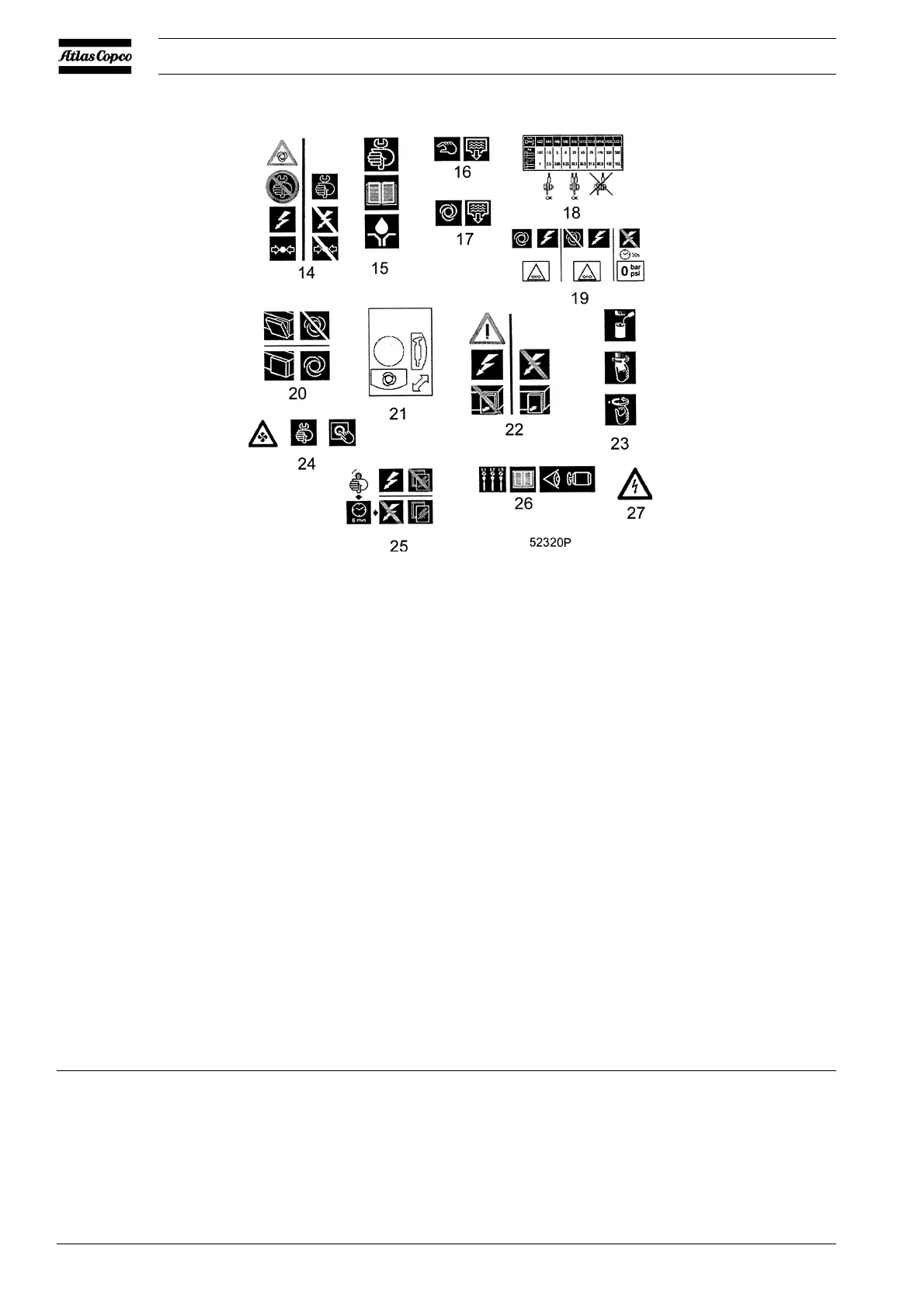

Fig. 3.6 Pictographs
Footnotes chapter 3
1) Consult the "User manual for Elektronikon regulator", sections regarding the submenus "Measured data", "Service", "Modify settings",
"Timer" and "Programmable settings".
2) Consult the "User manual for Elektronikon regulator", sections "Status data submenu" and "Service submenu".
3) The compressor is automatically started and stopped if these start/stop commands are programmed and activated; consult the "User
manual for Elektronikon regulator", section "Timer submenu".
4) For Full-feature compressors.
