Instruction book
9820 2332 01
52793D
(1)
(2)
(1) Cooling air outlet
(2) Compressor air and cooling air inlet

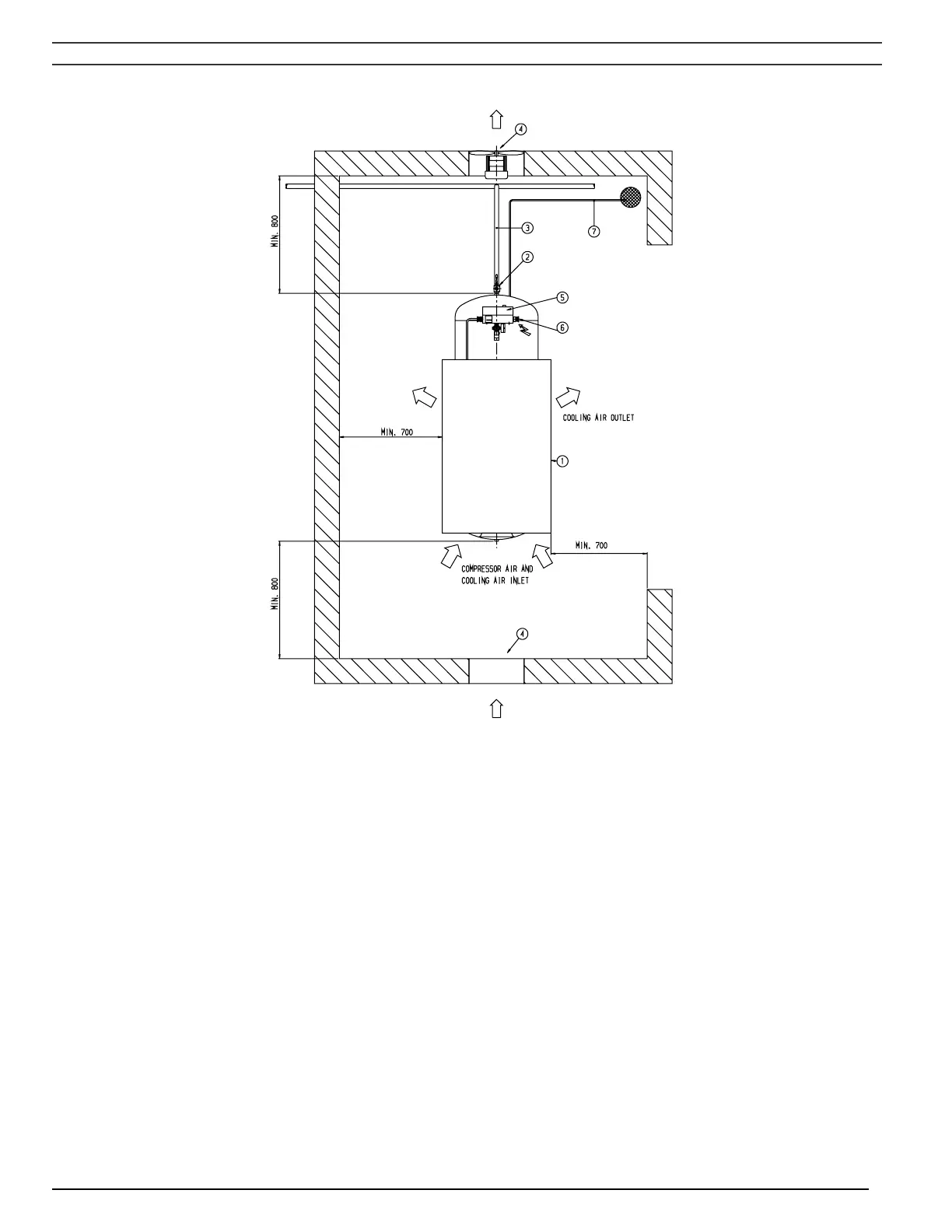

Fig. 2.25 Installation proposal for Pack compressors
2.2.1 LE/LF/LT
Install the compressor horizontally, in a cool but frost-free and well-ventilated room. Place the compressor
as level as possible; however, LE/LT can be operated with an angular deviation below 22.5 degrees in any
direction, LF can operate with any angular deviation, in any direction. The air should be clean.
A Pack Unit must be installed away from walls to allow easy maintenance. Keep the ventilation openings
free.
It is recommended to install an automatic condensate drain (available as an option) on the air receiver to
ensure continuous condensate removal.
2920 1585 00 - 38 -
