QAS38 YdS TNV
8 2954 9020 00
2. Leading particulars
2.1 General description
The QAS38 is an AC generator, built for continuous running at
sites where no electricity is available or as stand-by in cases of in-
terruption of the mains.
The QAS38 generator is driven by a water-cooled diesel engine,
manufactured by YANMAR.
The generator can run in 3 different modes:

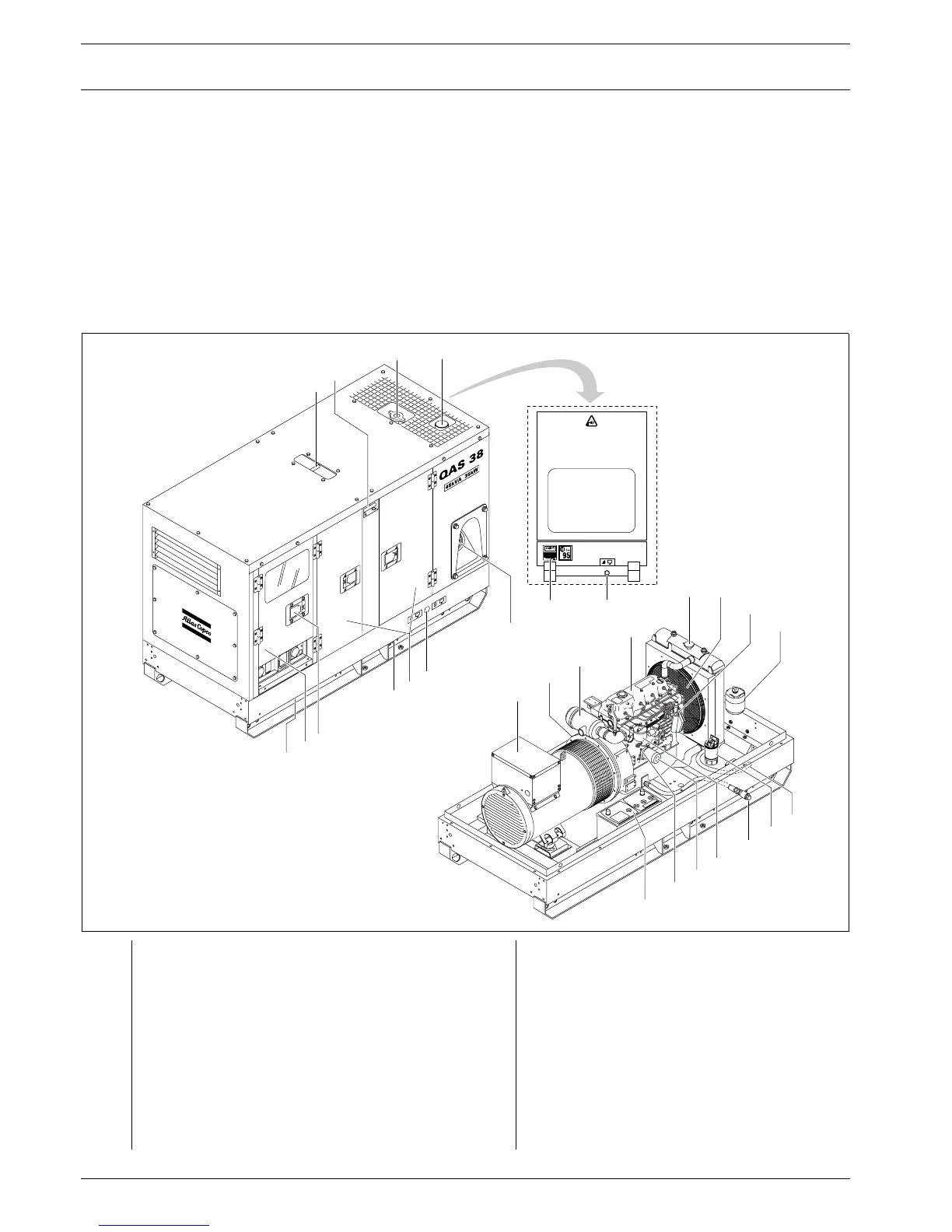

An overview of the main parts is given in the diagram below.
1 phase 60 Hz 240 V 37.15 hp / 27.7 kW
3 phase - lower voltage 60 Hz 208 V 43.31 hp / 32.3 kW
3 phase - higher voltage 60 Hz 480 V 43.31 hp / 32.3 kW
1615 6945 00
DH
3
8
8
6
7
FCF
1
4
2
DPF5
FCW
A
C
AF
E
FCW F
FCO
ET
DFO
FF
FPF
DFW
OF
OLD
G1
1 Lifting rod DH Drain and access hole (in the frame)
2 Guiding rod DPF Drain plug fuel
3 Side doors, access to engine and alternator E Engine
4 Engine exhaust ET Expansion tank engine cooling system
5 Data Plate F Fan
6 Side door, access to control and indicator panel FCF Filler cap fuel
7 Output terminal board FCO Filler cap engine oil
8 Hole for forklift FCW Filter cap cooling water
A Alternator FF Fuel filter
AF Air filter FPF Fuel pre-filter
C Coupling G1 Battery
DFO Drain flexible engine oil OF Oil filter
DFW Drain flexible cooling water OLD Engine oil level dipstick
