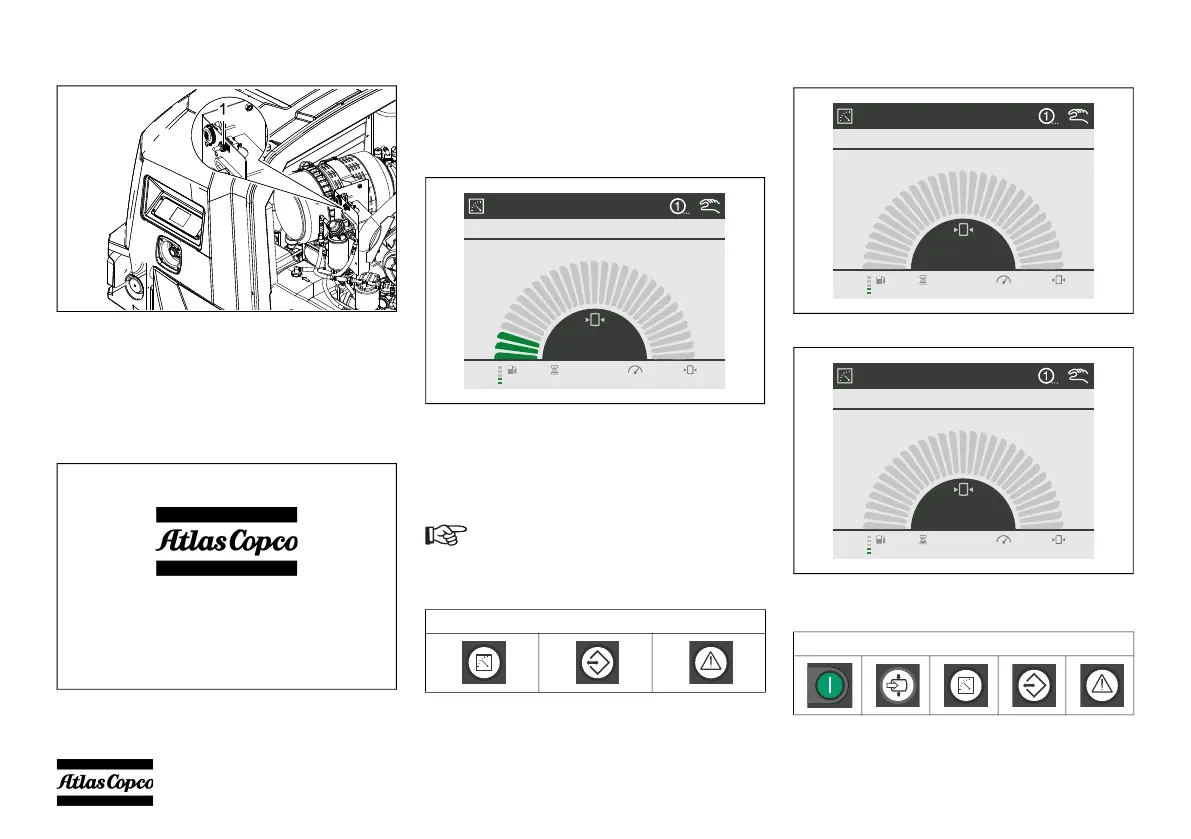

STARTING
Open the hood and switch on the main switch (1).
Close the hood.
Switch the controller on by pressing the Power
button.
The instrument panel will now perform a selftest; the
following display will be shown and the controller is
initialized:
During initializing all buttons/inputs/outputs/alarms
are inactive.
This view will be shown for about 2 seconds, after
which the display will show the Main View.
The actual vessel pressure is shown. If the measured
vessel pressure is higher than 1.5 bar, the unit will not
start. The vessel pressure has to be lowered by
opening the blow down valve. After power up, the
vessel pressure normally is low enough to proceed
with the starting procedure.
The display will change to
followed by
The machine is now ready to be started and is waiting
for a start command.
Xc2003
v1.00.0
If the Power button is switched to switch
off while the vessel is blowing down, it
will not power down for as long as the
vessel pressure is higher than 1.5 bar.
Active Buttons
MAIN VIEW
VESSEL BLOWING OFF
3.9
1200RPM 3.9bar1286h
40%
Active Buttons
MAIN VIEW
POWERING UP e-XTENSION
0.0
--RPM 0.0bar1286h
40%
MAIN VIEW
READY TO START
0.0
--RPM 0.0bar1286h
40%
