MediaPack
Analog Fast Track Guide 10 Document #: LTRT-59802
2.1.4.1 Mounting the MP-11x on a Desktop
Attach the four (supplied) anti-slide bumpers to the base of the MP-11x (refer to item #1 in Figure
2-2) and place it on the desktop in the position you require.
2.1.4.2 Mounting the MP-11x on a Wall
¾ To mount the MP-11x on a wall, take these 4 steps:
1. Drill four holes according to the following dimensions:
¾ Side-to-side distance 140 mm.
¾ Front-to-back distance 101.4 mm.
2. Insert a wall anchor of the appropriate size into each hole.
3. Fasten a DIN 96 3.5X20 wood screw (not supplied) into each of the wall anchors.
4. Position the four oval notches located on the base of the MP-11x (refer to item #2 in Figure
2-2) over the four screws and hang the MP-11x on them.
2.1.4.3 Installing the MP-11x in a 19-inch Rack
The MP-11x is installed in a standard 19-inch rack by placing it on a shelf preinstalled in the rack.
The 19-inch rack shelf is not supplied in the standard package kit, but can be ordered separately.
(Bulk Pack package MCMK00015 with 10 rack mounting shelves for MP-11x.) For ordering and
pricing, please contact your AudioCodes' distributor.

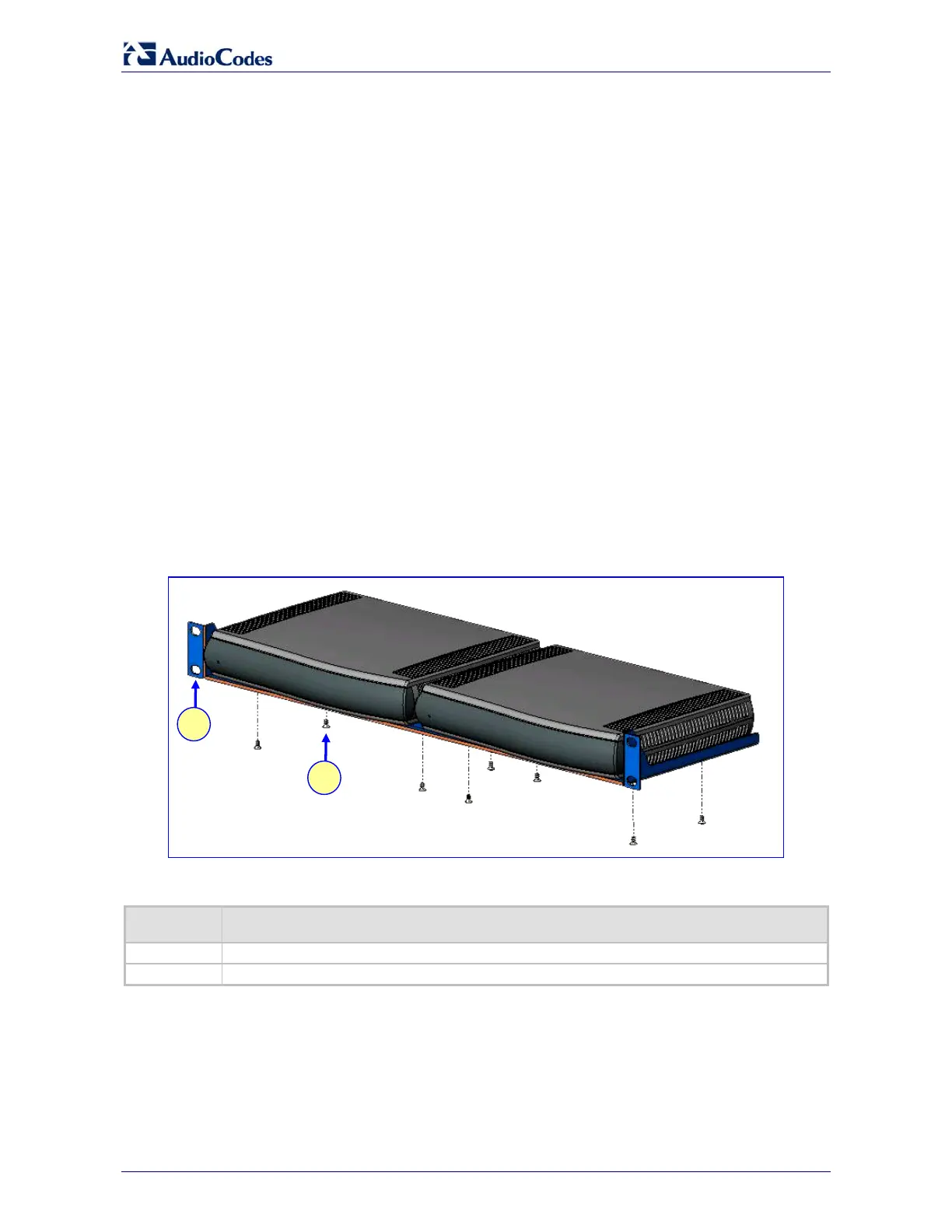

Figure 2-3: MP-11x Rack Mount
Table 2-2: MP-11x Rack Mount
Item # Functionality
1 Standard rack holes used to attach the shelf to the rack
2 Eight shelf-to-device screws
¾ To install the MP-11x in a 19-inch rack, take these 3 steps:
1. Use the shelf-to-device screws found in the package to attach one or two MP-11x devices to
the shelf.
2. Position the shelf in the rack and line up its side holes with the rack frame holes.
3. Use four standard rack screws (not supplied) to attach the shelf to the rack.
1
2
