The Universal Sound
LRx 1.1k
Owner’s manual
13”
5/16
17”
1/4
6”
5/16
7”
13/16
ø MAX 7,5 mm (5/16
MAX 7,5 mm (5/16
”)
MAX 7,5 mm (5/16 )
MAX 7,5 mm (5/16 )
ø MAX 7,5 mm (5/16
MAX 7,5 mm (5/16
”)

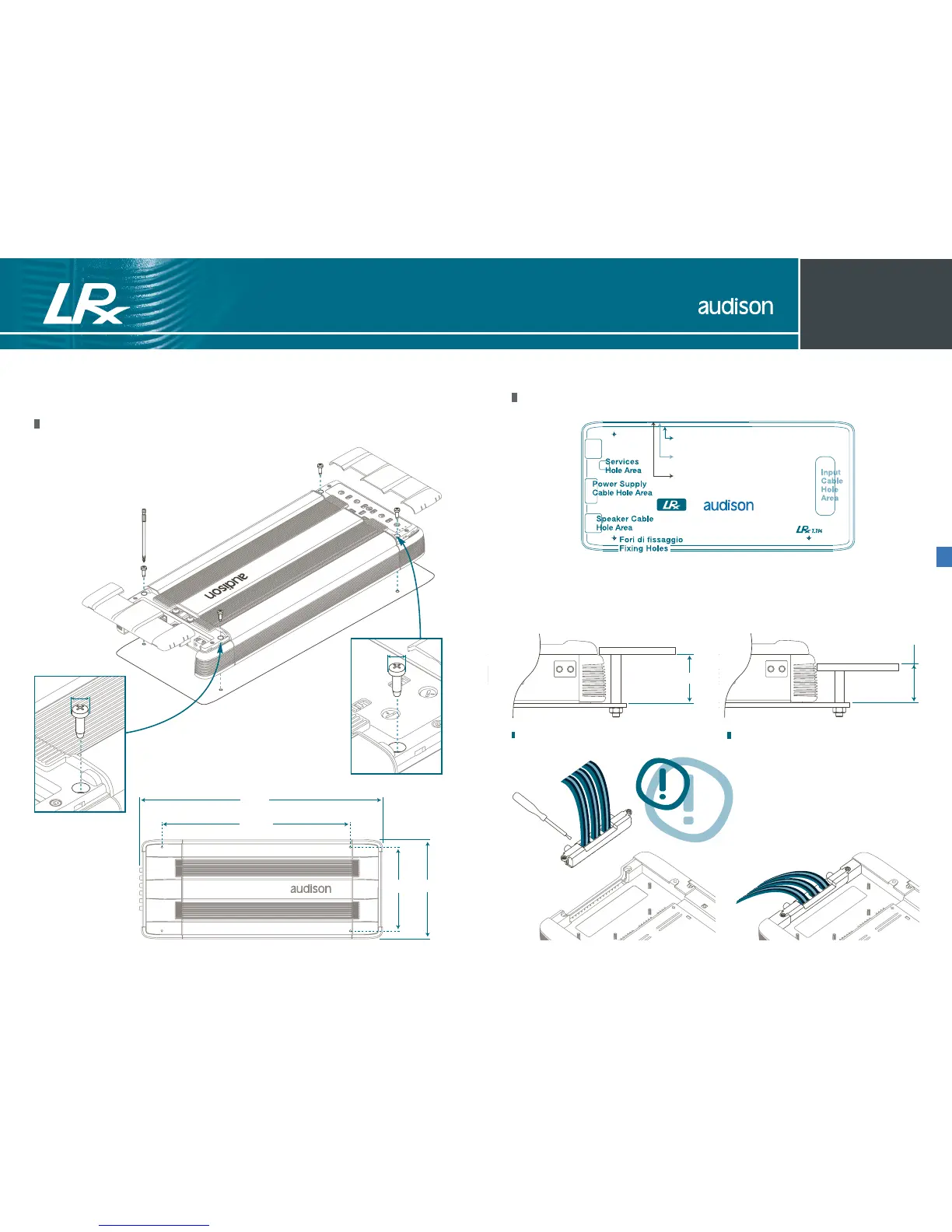

Installation
Amplifier fixing
For hidden installation the mounting holes for the screws
are inside the amplifier outline. Secure the screws with
the extended length screw driver bit provided
with the amplifier
43
35
You can connect the cables to ECI-H module
before securing it to the amplifier.
Choose the module position and follow
the connection instructions you can find on
the labels. The amplifier must be off.
Flush mounting Semi-embedded mounting
Perimetro esterno
External Outline
Perimetro per il montaggio semi-incassato
Semi-Projecting Outline
Perimetro per il montaggio a filo del pannello
Non-Projecting Outline
Mounting template
A template is supplied to help you pre-plan the mounting of your amplifier. Printed on the
template are instructions for flush or semi-embedded mounting, or for installing it on a flat
surface. If you want to hide the cables, you can refer to the proper holes on the template.

Audison LRx 1.1k Specifications

General

Channels	1
Damping Factor	> 200
S/N Ratio	100 dB
Crossover	24dB/octave
Input Sensitivity	0.2V - 6V
