 Automatic Systems TR491-TR6-GB-a YD-JMW 20/01/00 Installation TR491 2-1106GB Rev.: C p. 7/12
3. INSTALLATION
3.1. First step

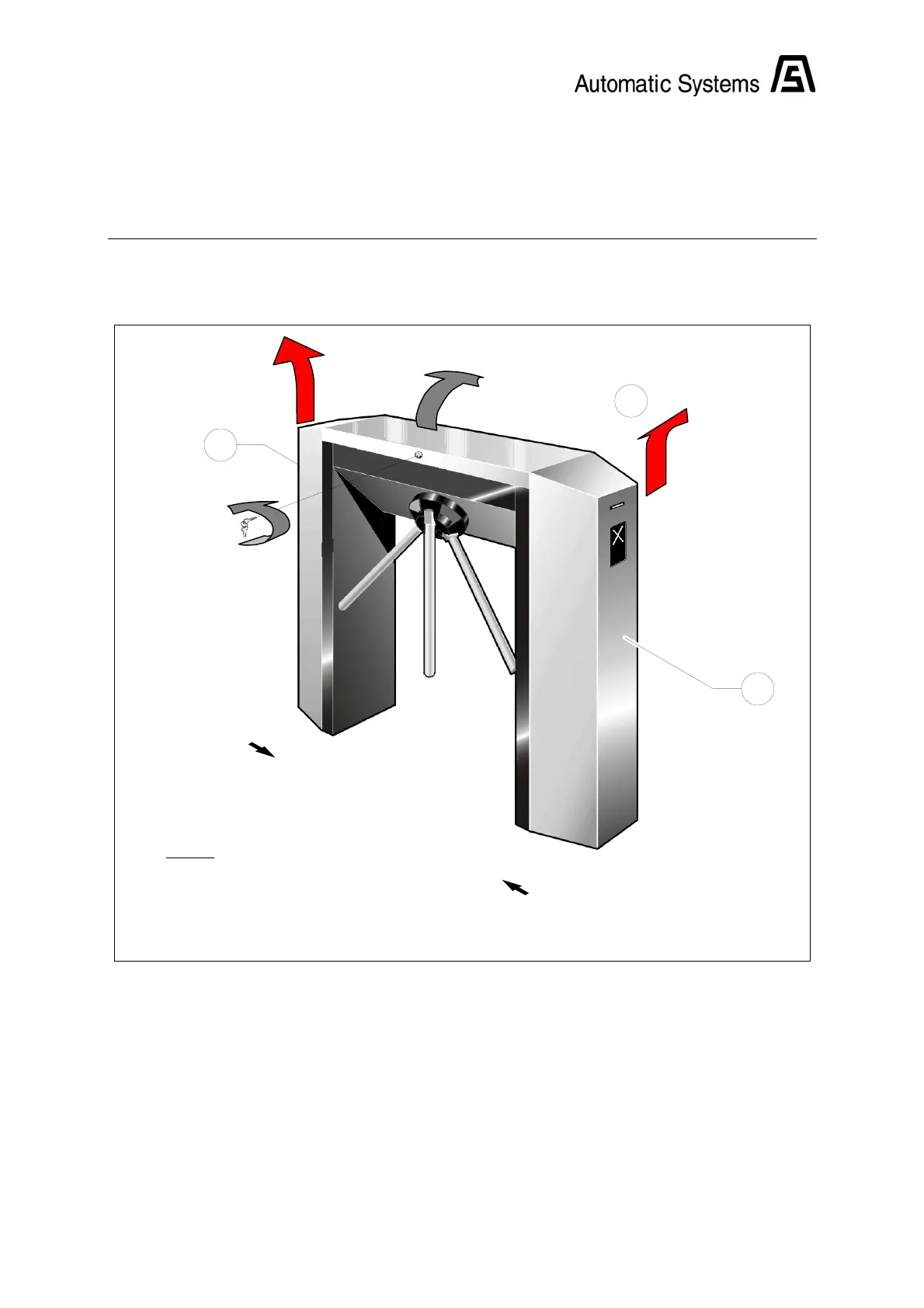

Fig. 4
4:1 Front end section ( "A")
4:2 Rear end section ( "B")
Legend:
4:3 Hood
A
4:1
4:3
4:2
B
• The tripod turnstile has been packaged suitable for transport. Move the material to the
installation site with the assistance of a fork-lift, or manual hand truck and remove the packing
material.
• Unlock and open the front doors (4:1) and (4:2). Keys are supplied as accessories in a separate
bag.
• Open and remove the hood (4:3).
• Check the state of the material. Though it has been carefully packed, damage may have
occurred during transport. Any transportation damage should be repaired, or components
replaced.
