INDOOR UNIT INSTALLATION
2. Indoor unit installation
1)

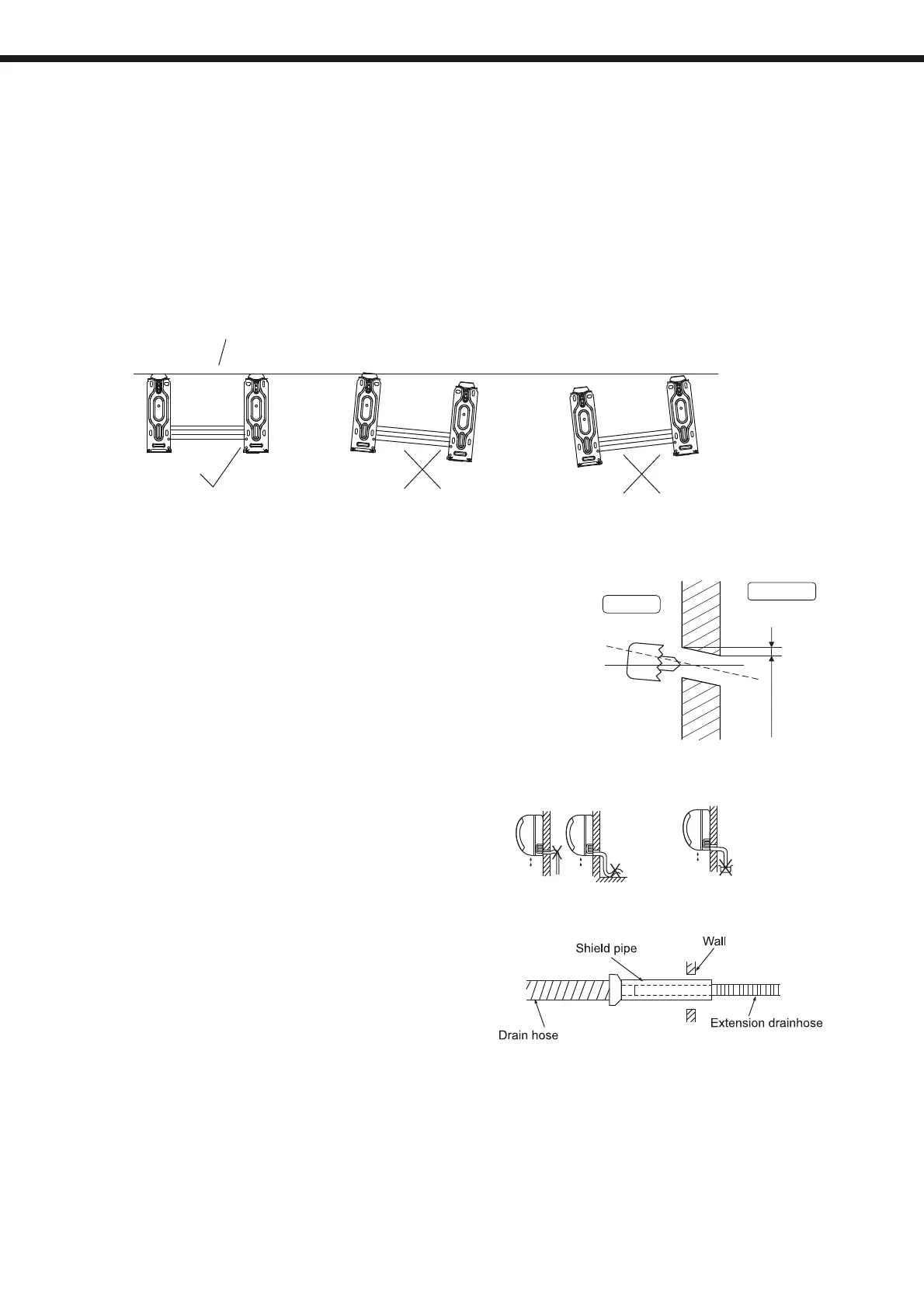

Fit the installation plate horizontally on structural parts of the wall with spaces
arround the installation plate.
2)
If the wall is made of brick, concrete or like, drill five or eight 5mm diameter holes
in the wall. Insert Clip anchor for appropiates mounting screws.
1. Determine hole positions according to left and right
side of the installation plate. The hole center is obtained
by measuring the distance as shown in the diagram above.
2. Dirll the piping plate hole with 65mm hole-core drill.
3. Drill the piping hole at either the right or the left and the
hole should be slightly slanted to the outdoor side.
4. Always take steps to protect the pipe when drilling metal
grid,metal plate or the like.
Wall
Indoor
Outdoor
5-7mm
Fit the installation plate
Drill a hole in the w all
35
Correct orientation
of Installation Plate
Do not block water flow by a rise.
Do not put the end of
drain hose into water.
1. Run the drain hose sloping downward.
Do not install the drain hose as
illustrated in Fig.7.
2. When connecting extension drain hose,
insulate the connecting part of extension
drain hose with a shield pipe, do not let
the drain hose slack.
Fig.8
Connective pipe and drainage installation
