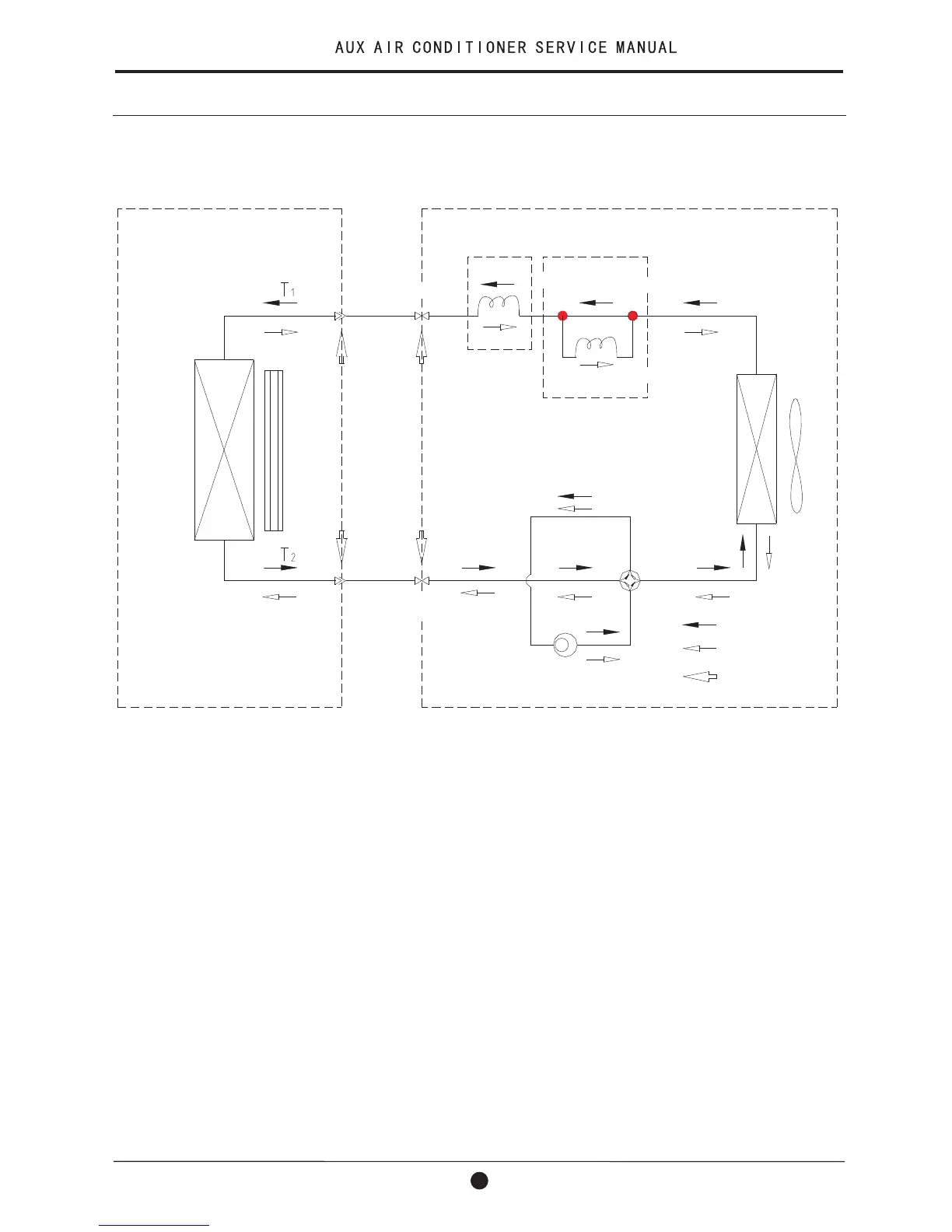

AUX ASW-H09A4/E Series - REFRIGERATION CYCLE DIAGRAM; Refrigeration Cycle Diagram

Fig.5
1
32
Indoor Unit Outdoor Unit
Evaporator
Through-flow fan leaves
Air side
Liquid side
Two-way vavle
Compressor
Cool
Heat
4-way vavle
Axial-flow fan leaves
Condensor
Two-way vavle
Capillary
Auxillary capillary
Single-way vavle
The gas leak
checking point
7.Refrigeration Cycle Diagram
