●Ground wire: Remove the grounding screw out of the electric bracket, cover the
grounding wire end onto the grounding screw and screw it into the grounding hole.
● Fix the cable reliably with fasteners (Pressing board).
● Put the E-parts cover back in its original place and fasten it with screws.
NOTE:

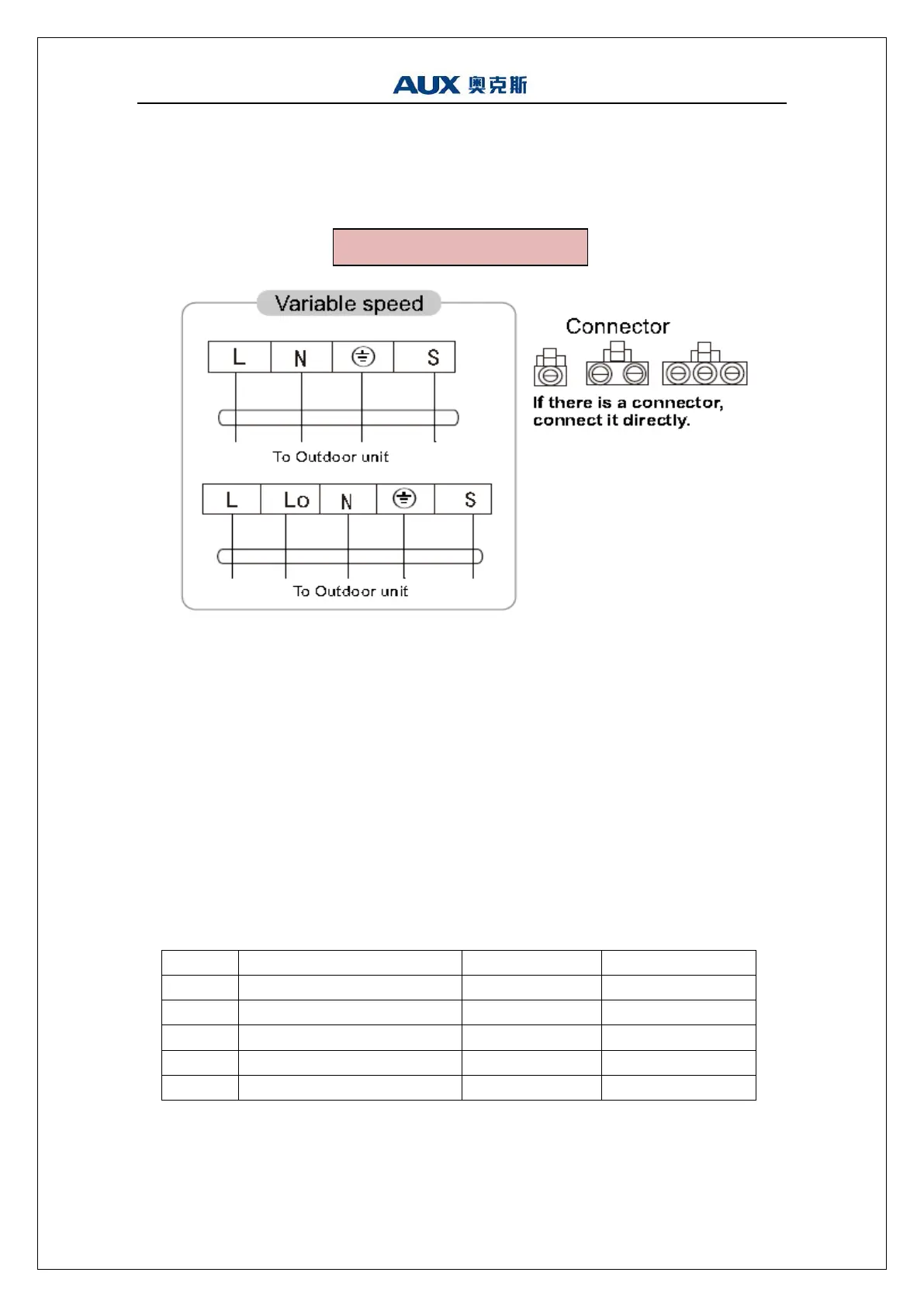

※ This manual usually includes the wiring mode for the different kind of A/C.
We cannot exclude the possibility that some special type of wiring diagrams
are not included.
※ The diagram are for reference only. If the entity is difference with this wiring
Diagram , please refer to the detailed wiring diagram adhered on the unit which
you purchased.
7-3 Installation of outdoor Unit
19 Packing list of the outdoor unit
20 Selection of Installation location
