Model: AMT, HDT - CV3000 Series Control Valves
43
No. Parts name
1 Nut
2 Washer
3 Handwheel
4 Lock Nut
5 Screw Shaft
6 Bearing Case
7 Cap
8 Diaphragm Case(Top)
9 Eyebolt
10 Nut
11 Through Bolt
12 Diaphragm
13 Connector
14 Diaphragm Case(Bottom)
15 Stopper
16 Diaphragm Retainer
17 Bearing
18 Bushing
19 Yoke
20 Lock Nut
21 Pointer
22 Stem Connector
23 Stem Connector Bolt
24 Housing
25 Bearing Washer
26 Bearing
27 Cotter Pin
28 Castle Nut
29 Seal Washer
30 Bolt
31 Compressed Coil Spring
32 Setscrew
33 Setscrew
34 Bolt
35 Nut
36 Diaphragm Plate
37 Spring Plate
38 Bolt
39 Seal Washer
40 Packing For Rod
41 Dust Seal
42
Truss Screw, Spring
Washer Nut, or Speed Nut
43 Scale
44 Rod
45 Nameplate
46 Drive Screw
47 Spring Washer
48 O-Ring

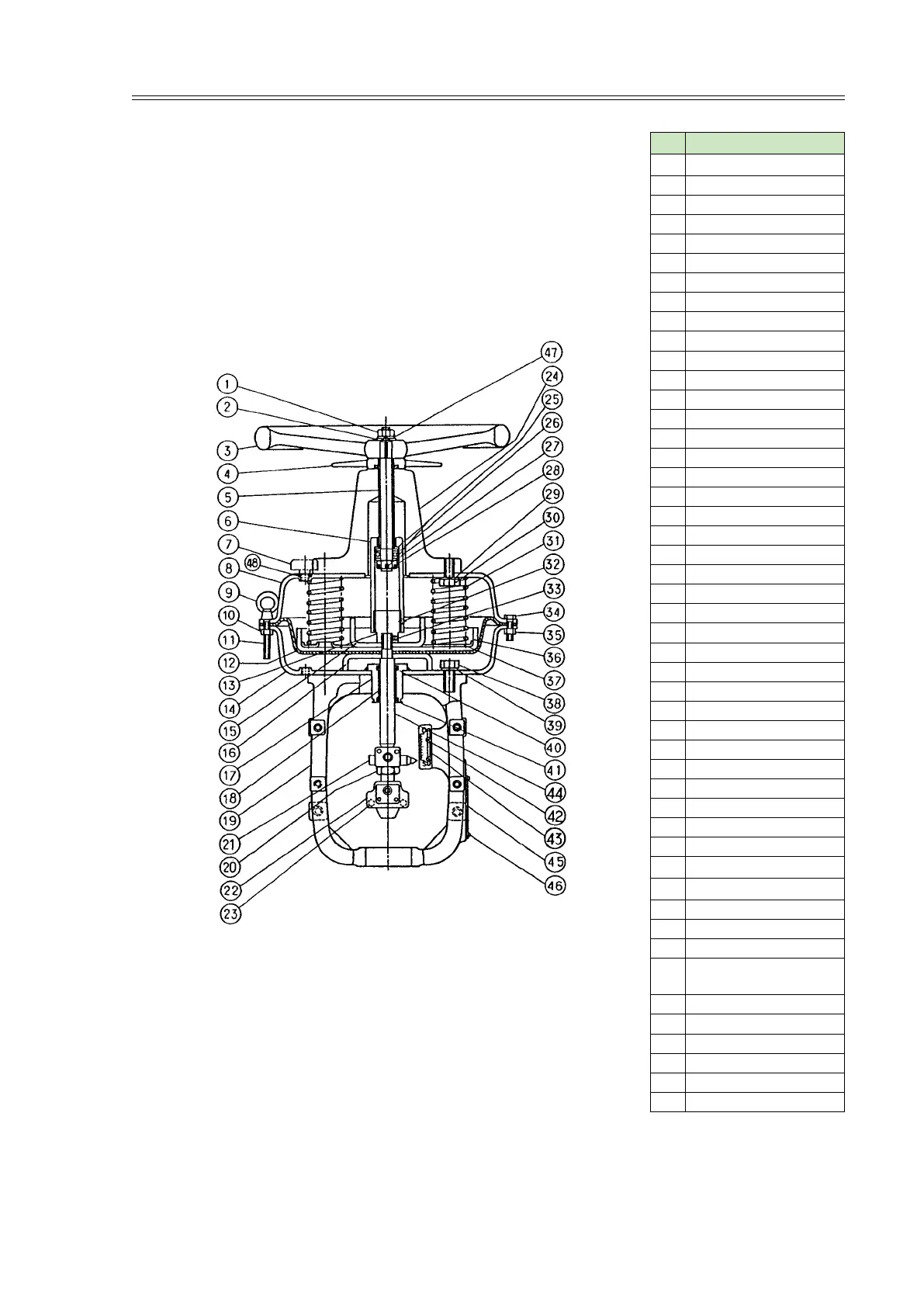

Fig. 7-6 Model HA2/3 Actuator with Top Handwheel (Reverse Action Type)
