WWW.BALTIMOREAIRCOIL.COM
11
SERIES 1500 COOLING TOWER
Optional Accessory Installation
3
Bottom Water Outlet/Equalizer/Bypasses (Optional)
1. The bottom connection seal, Figure 18, is typical for all bottom outlets, equalizers,
and bypasses. Flange mounting hardware and gasket to be supplied by others.
2. Bottom connection seal kit(s) ship in plastic tubs.
Sump Suction
Strainer
(For Bottom Water
Outlets with Pump
Suction)
Cold
Water
Basin

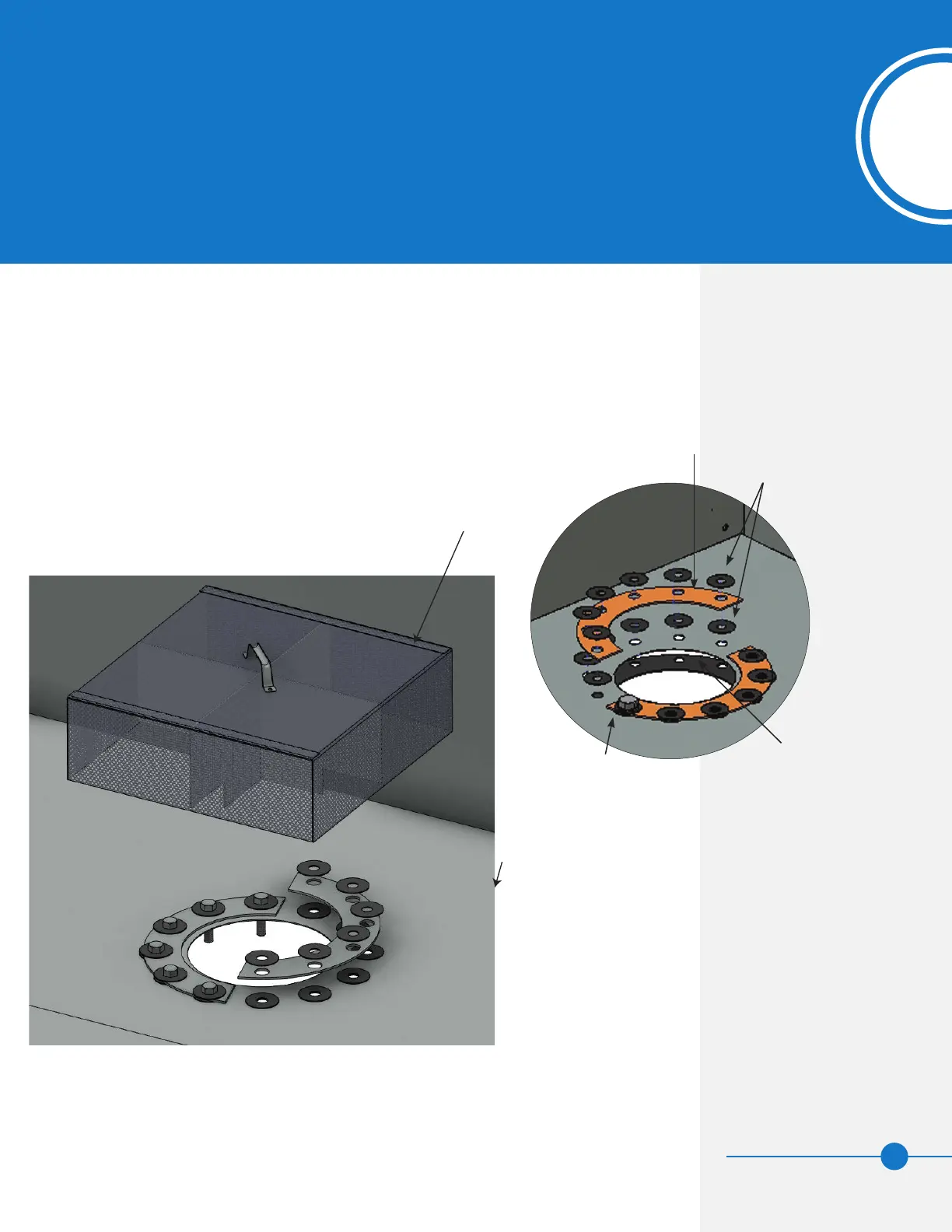

Figure 18. Bottom Water Outlet
Detail A
2 1/4” OD Gasket
Backup Ring
Hardware
Provided by
Others
Gasket Provided by
Others
To Next Page
