Louver Face External Access Platform With End Ladder (Optional)
1. Secure the lower support channel to the pre-mounted bracket using 3/8” bolts
provided. See Figure 28, Detail A.
2. If the unit is a two-section assembly, secure the mid support channel to the pre-
mounted bracket using 3/8” bolts provided. See Details B and C.
3. Attach the ladder assembly to the platform using 3/8” bolts provided. See Detail D.
4. Secure the ladder flair and safety gate to the platform railing posts using 5/16” bolts
provided. See Details E, F, and G.
5. Secure the standoff channels to the mid and lower support channels using 3/8” bolts
provided. See Detail H.
6. Secure the ladder at the mid and lower supports with the clamp brackets and 3/8”
bolts provided. See Detail I.

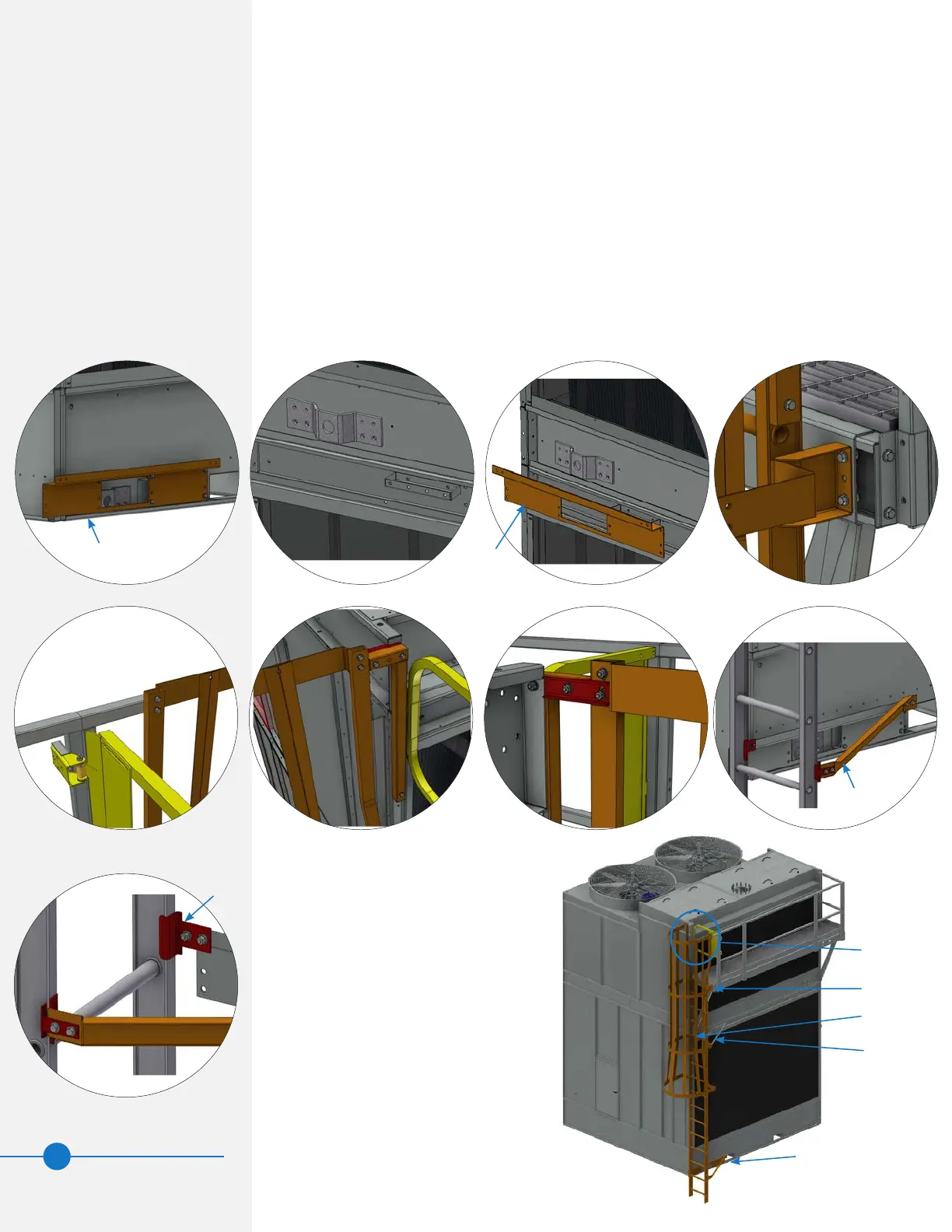

Figure 28. Louver Face External Platform with End Ladder
Detail A
Detail B Detail C Detail D
Detail E
Detail F Detail G Detail H
Detail I
Detail A,H
Detail B,C
Detail D
Details E, F, G
Detail I
PCZ
PCZ
PDA
PDC
