Internal Service Platform Ladder (Optional)
1. Attach ladder bracket to the access platform using 3/8” bolts provided. See Figure 22,
Detail A.
2. Attach the ladder to the lower walkway using 5/16” tappers provided. See Detail B.
3. Secure the ladder flair to the platform railing posts using 5/16” bolts provided. See
Detail C.

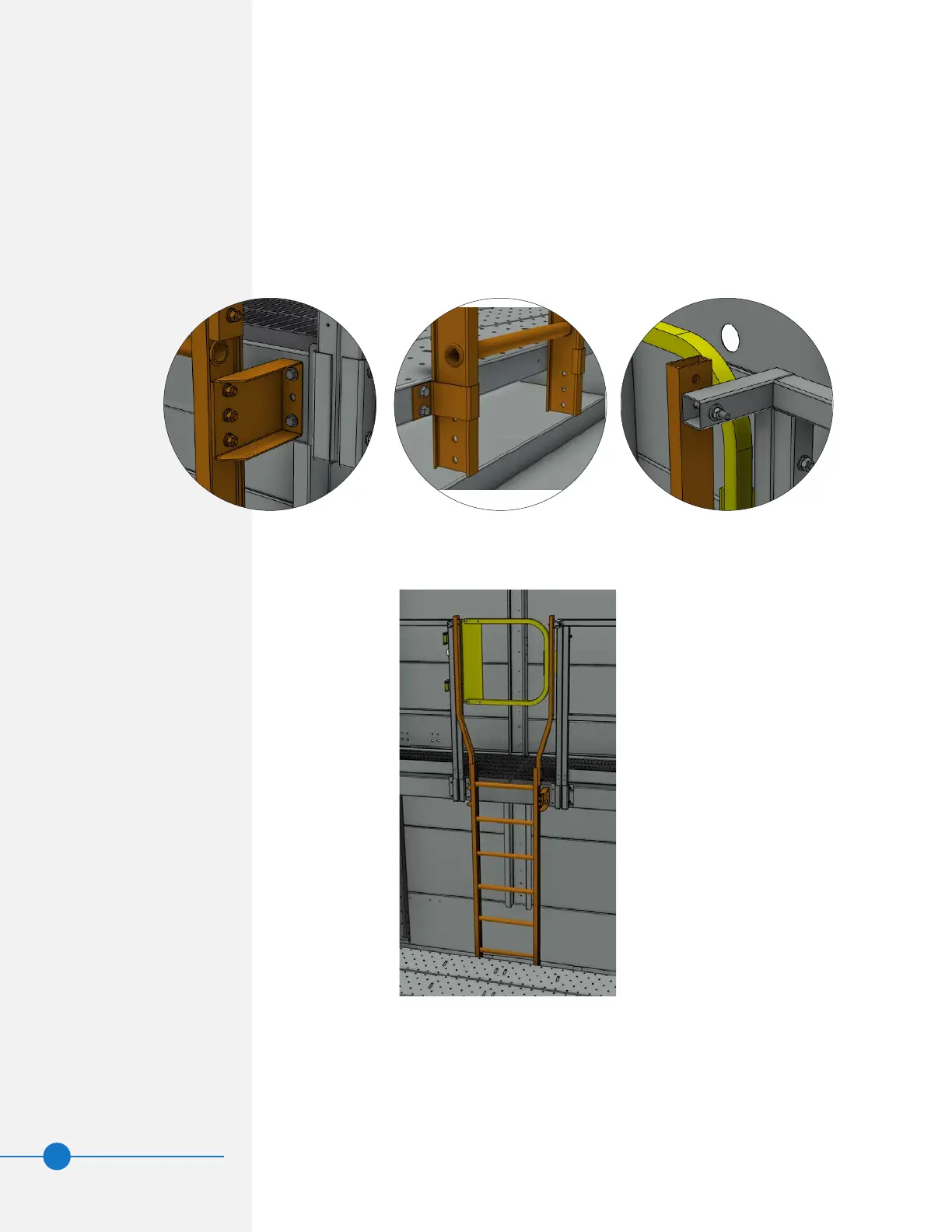

Figure 22. Internal Service Platform Ladder
Detail A
Detail B Detail C
