A. Electric Scooter Assembly
�
Dismantling the Rear Brake
4. Remove the adjusting nut
of the rear brake.
5. Remove the fix bolt of
the brake arm.
6. Remove the brake arm.
7. Remove the brake cam.
When Assembling the Rear Brake
A. Spread grease on the moving
parts of the lining and of the fix pin
(locating pin).
B. Spread grease on the moving
part of the brake cam shaft and
then assemble it.
C. Install the brake lining.

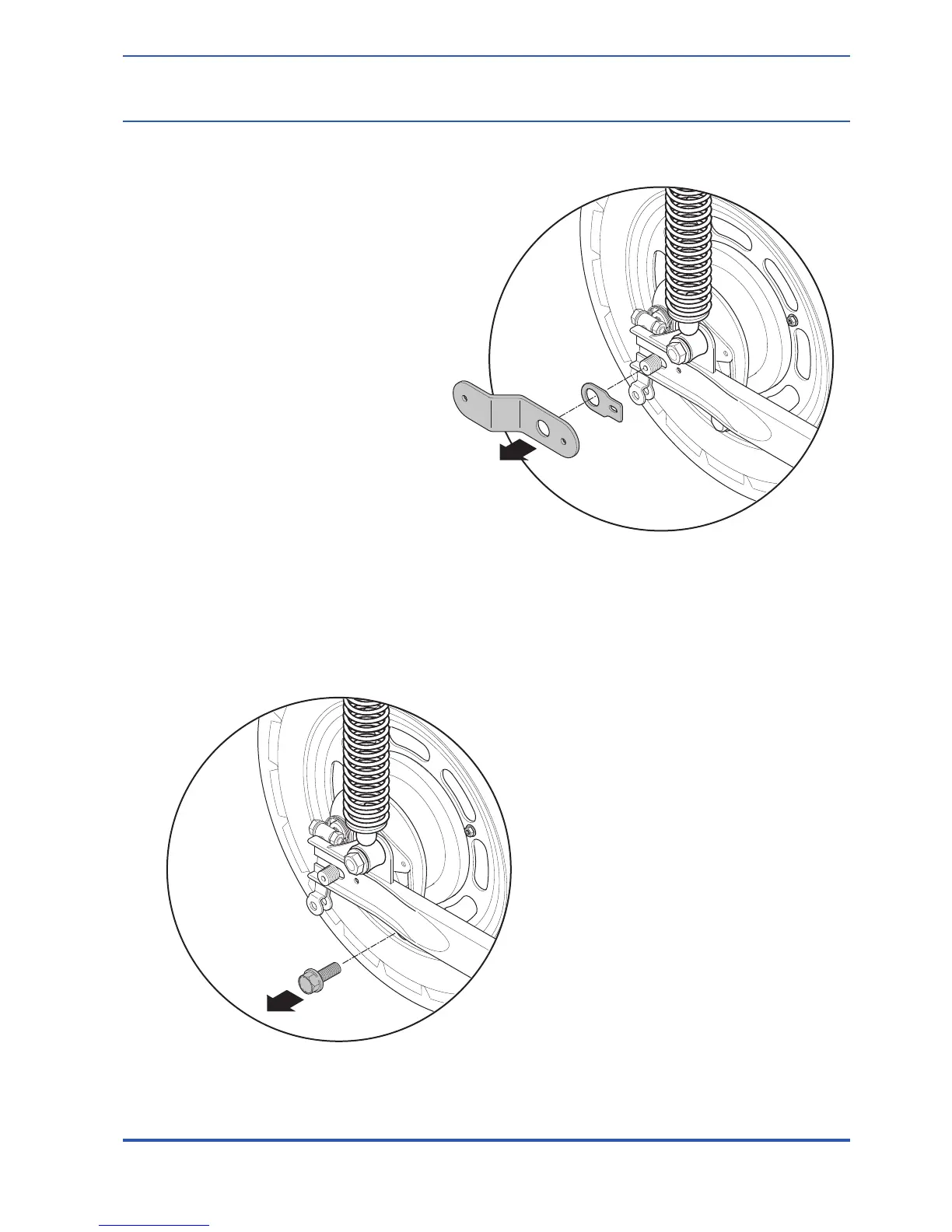

8. Remove anti-rotational brackets.
9. Remove smaller restraining bracket
10. Remove restraining bolt.
