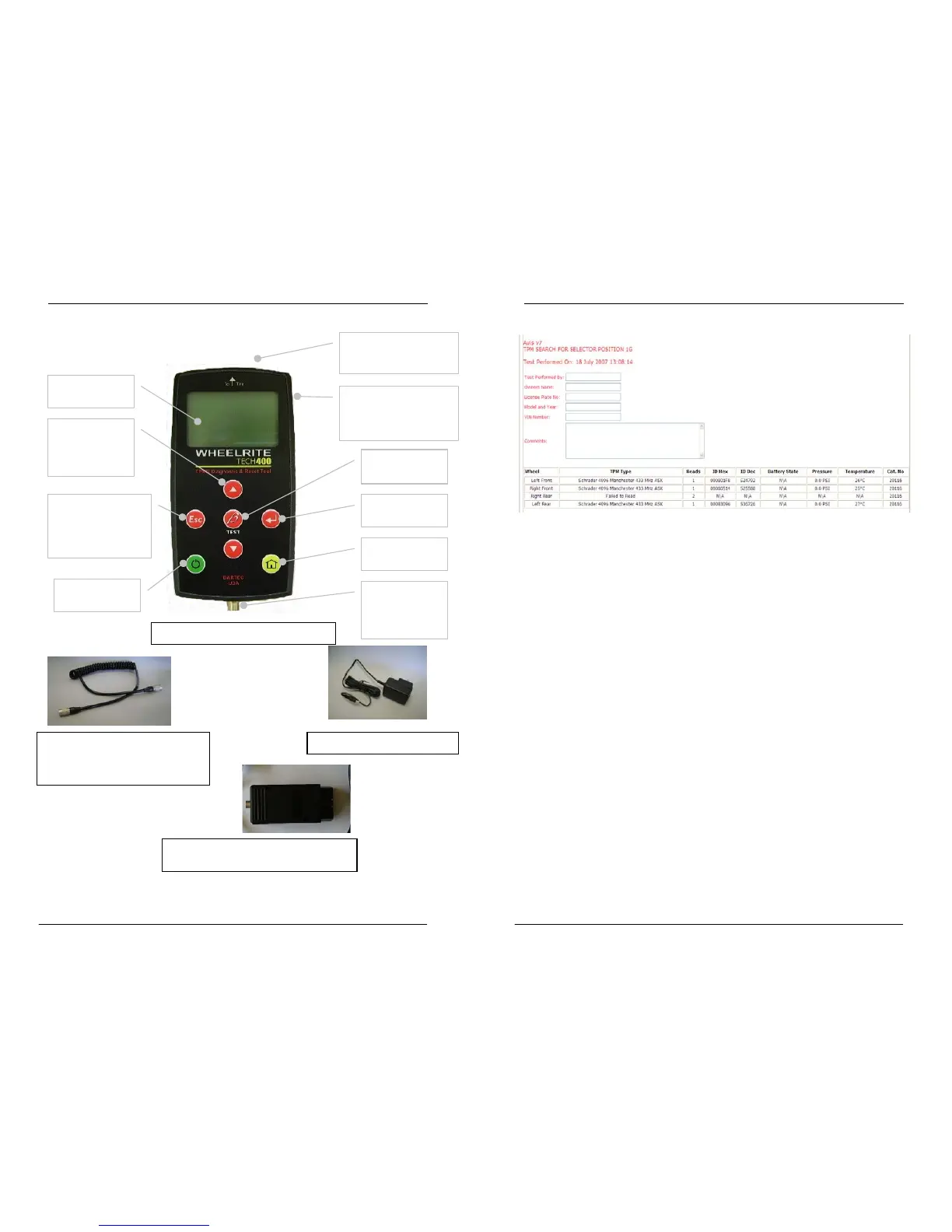

PART NAMES AND FUNCTIONS
Charger
connection point
Display
USB port- connects
to computer via
supplied USB lead
Up/Down
navigate
keys
Enter key
Test key
Escape key-
returns Tech 400
to previous
menu item
The audit file example above is representative of a single vehicle
with 4 tires, audited in 4 wheel mode, where one tire failed to
read, and a retest was taken to ensure the TPM was at fault.
Home key
On/ Off key
OBD
connection
point
Leaving Audit Mode
To leave the Audit mode and re-enable the Bartec Tech 400
simp
ly remove the USB lead.
Tech 400 AF-DSW-0001-01
VEHICLE COMMUNICATION
Connection to a vehicle allows the Tech 400 to directly program
the vehicle electronics module with TPM ID’s.
Thus it is possible to replace TPM’s or rotate wheels and audit the
ve
hicle (use 4 wheel mode, select by vehicle)
Charger AF-PSU-4000-01
OBD Cable AF-OBD-0020-01
Connects between Tech 400
and OBD interface
Note that not all vehicles support vehicle communications modes.
Once 4 TPM ID’s are stored within the Tech 400, it can be
conne
cted to the ODB interface using the provided cable.
It is possible to ‘pre-load’ the tool with existing TPM ID’s from the
ve
hicle and then overwrite any TPM IDs that might have been
replaced. This is the Read ID from vehicle command
OBD Interface AF-OBD-4000-01
Connects to Tech 400 and vehicle
To Next Page
