1. Product Information
Design and function

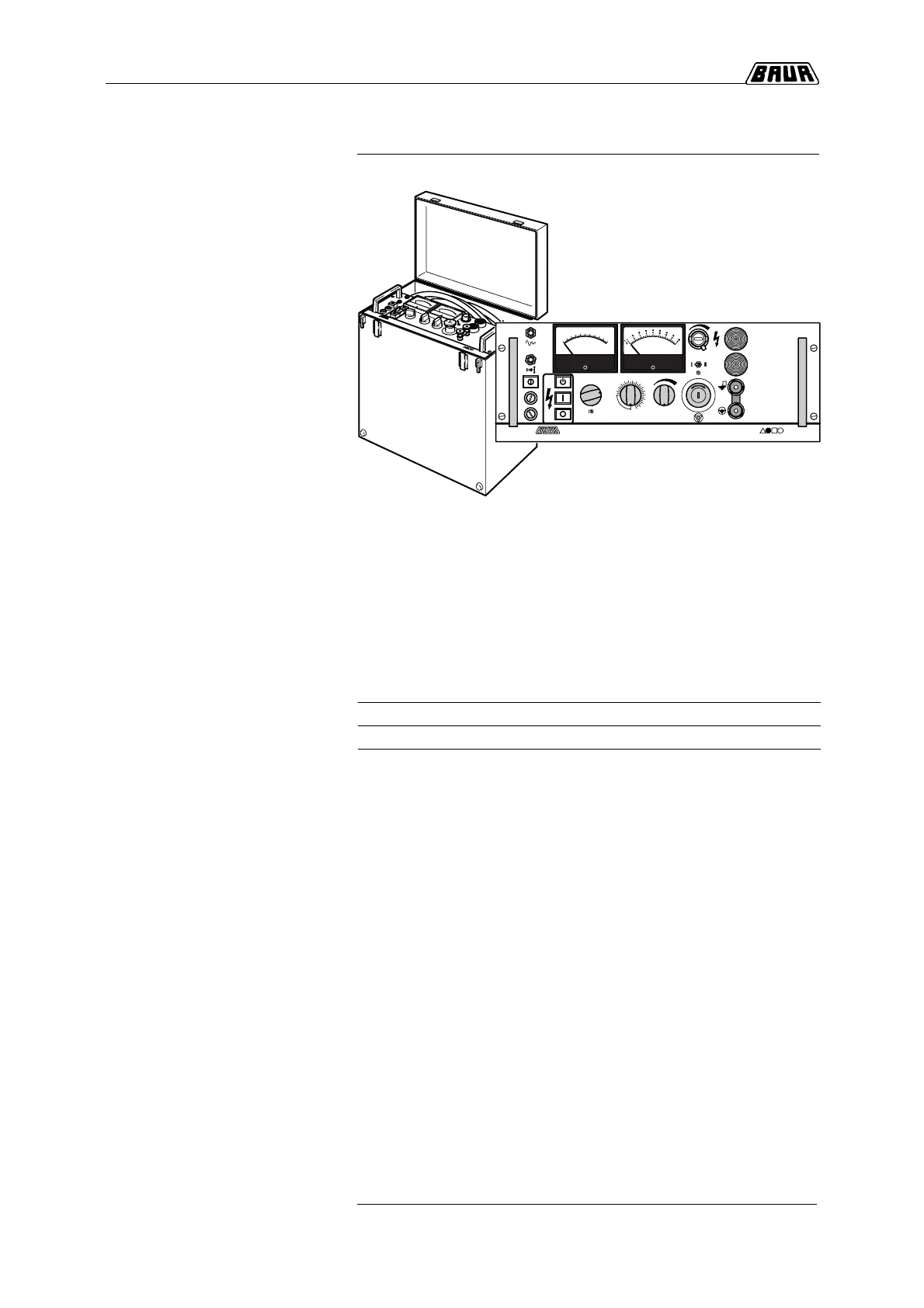

General view
of PGK
0
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
100mA
10mA
1mA100µA
10µA
1µA
F1
F2
PGK
T / min
U
DC
U
max
B
0
20
4
0
6
0
8
0
1
0
0
U [kV]
I
0
0
0
A compact and light weight
High Voltage Testing Set
The primary area of application is in-field testing of cables. High
voltage is generated by a high voltage transformer and a voltage
multiplier. Thanks to an operating frequency of 20kHz small
dimensions are possible. Packaged in a handy carrying case with
handles and carrying strap, the PGK units are portable and
therefore equipped for field applications.
Test voltages
Type PGK50 PGK80
Max. test voltage 50 kV DC 80 kV DC
at an output current of: 2 mA 0.8 mA
Features
- automatic, SF
6
insulated discharge unit
- timer (0-30 minutes)
- connection for an electric gate, emergency-stop switch and
external warning lamps
- connection for Y/t plotter for recording the current flow
- shielded high voltage cables with clamps for connecting the test
object
- integrated thermal switch
- carrying case with handles, foldable mounting legs and cable
compartment
