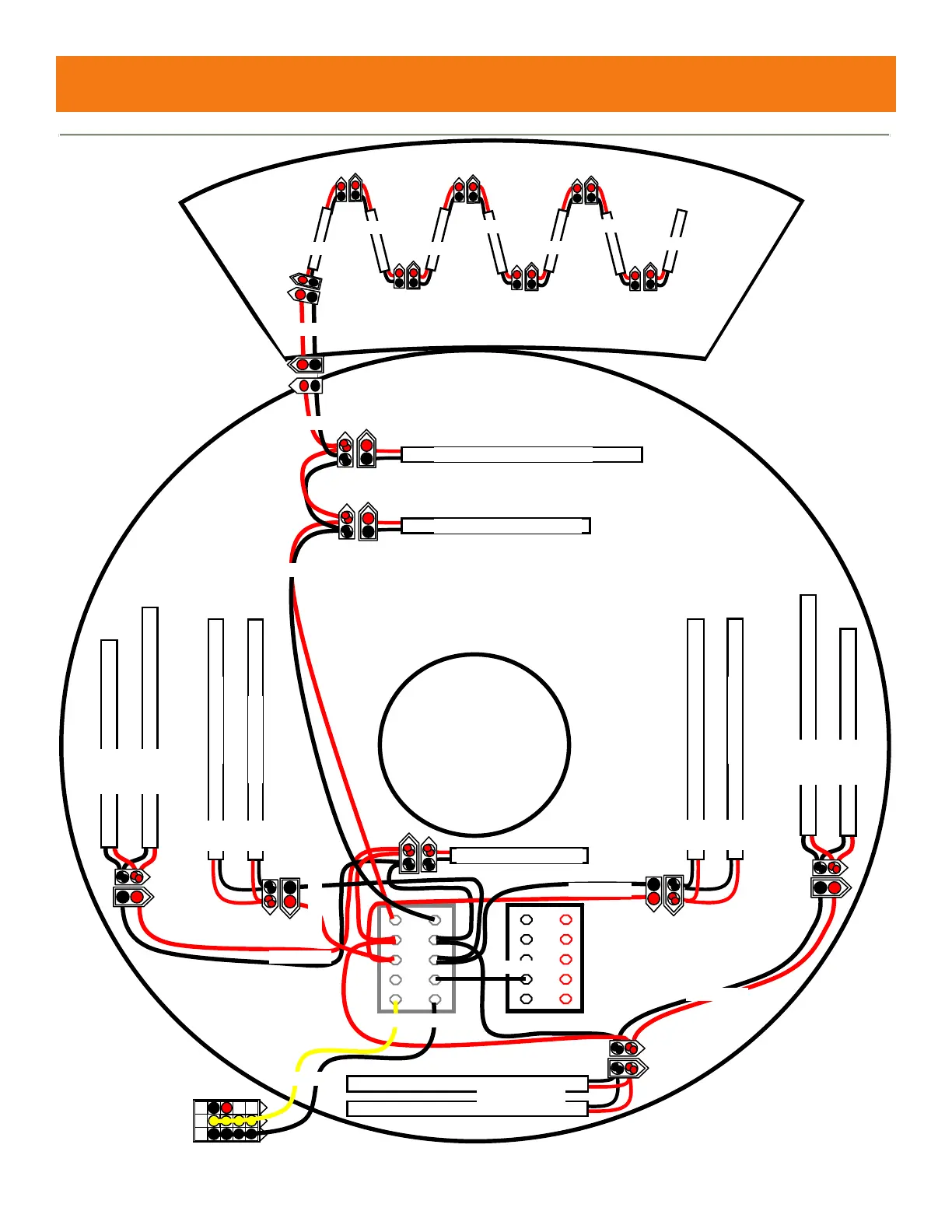

LED WIRING DIAGRAM (VIEW FROM FRONT)
10
LED Wiring Diagram ( Viewed from Front)
LED Light Strip
LED Light Strip
AACE6932
LED Light Strips
AACE6945 LED Light Strip
AACE6930
AACE6933 LED Light Strip
LED Light Strip
LED Light Strip
AACE6932
LED Light Strips
AACE6934
LED Light
Strips
AACE6934
LED Light
Strips
AACE6936
LED Light Strips
AACE6945 LED Light
AACE6910
AACE6910
AACE6921
AACE6921
AACE6927
24 VDC
AACE6930
AACE6930
AACE6930
AACE6930
AACE6930
AACE6931
AACE6922
AACE6922
AACE6906
From
CE6926
Cable
in Lower
Section
AACE6937
12 VDC
