Bay-Tek Spin-N-Win! User Manual

41

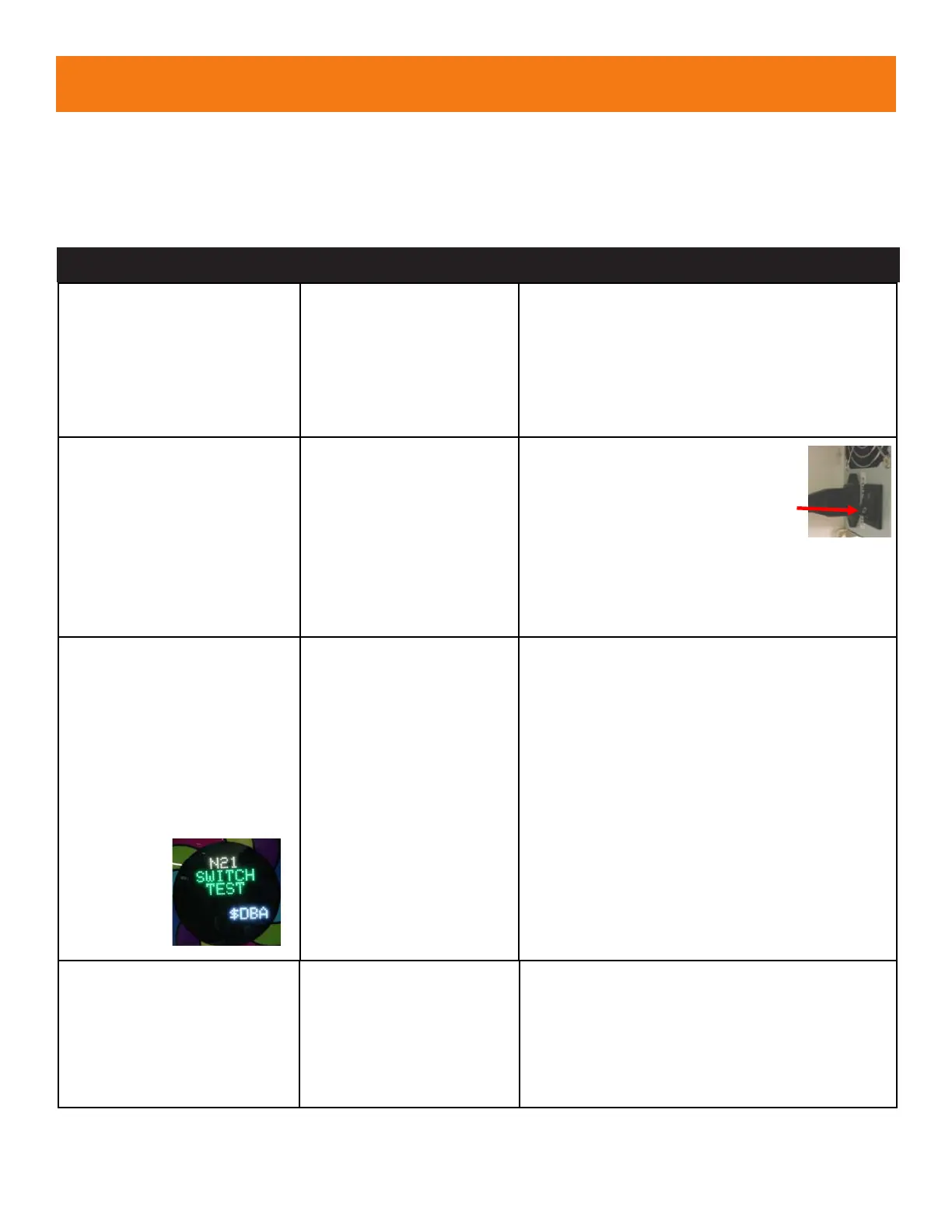

TROUBLE SHOOTING GUIDE
Troubleshoong Strategy
Use common sense and a systemac method of troubleshoong to determine the exact problem, probable cause
and remedy. Use the process of eliminaon to nd the fault component. Always check for the simple and obvious
causes rst such as unplugged, loose or broken wires and bad sensors, bent, pinched stuck or jammed components.
Problem Probable Cause Remedy
No power to the game.
No lights on at all.
Unplugged.
Circuit breaker tripped.
Line Filter Faulty.
Power strip faulty.
Faulty cable/power supply
Check wall outlet.
Reset power strip breaker switch or building
circuit breaker.
Replace Line Filter (Part # A5FI9010)
Change plug position, replace if needed.
See Power Supply diagnostic below.
Bill Acceptor on, but every-
thing else off.
(Power Supply not ON)
Insure unit is plugged
into power strip.
Make sure rocker switch is set ON.
See power supply diagnostics to isolate bad
component. A 12 volt short would cause this.
See Power Supply Diagnostic below.
Dollar Bill Acceptor not
functioning.
Ensure Bill Acceptor is set to
“Always Enable”
Important : Only 110 Volt AC
DBA is to be installed.
Enter Diagnostic Menu to see if
DBA input flashes ON quickly
when bill is inserted.
Check for power to Bill
Acceptor.
Dirt or debris in acceptor
slot.
Pinched, broken, or
disconnected wiring.
Bill acceptor problem.
Part # A5AC9091
Acceptor should cycle stacker at game
power up. If not, check cable connections.
Refer to “How to Clean Bill Acceptor”
Or clean with bill reader cleaning card.
(A5CC9000)
Check wiring from bill acceptor to NewGen
Board. (AACE6918) Repair or replace wiring
harness. Check J8 connector on Newgen
Board. Ensure wires are secure in connectors.
Refer to troubleshooting section of dollar bill
acceptor manual included with this game or
the diagnostics label of the back of the unit.
Power supply unplugged.
Rocker Switch.
Power supply shutting
down because of 12 V
overload.
Faulty power supply.
Meters do not work.
Game meter will click at the end of
the game.
Ticket meter will click as tickets
come out of game and notch is
“seen” by dispenser.
Ensure correct number of
tickets are being dispensed
Disconnected, loose or
broken wires.
Faulty counter.
Check ticket values in menu. Refer to Tickets
not dispensing troubleshooting section.
Check connections and reseat J25 on Newgen
board. Cables # AACE6913 and AACO3325
Replace counter. AACO3325
Problem Probable Cause Remedy
