Mounting and wiring

BK9053, BK910318 Version: 2.3.0

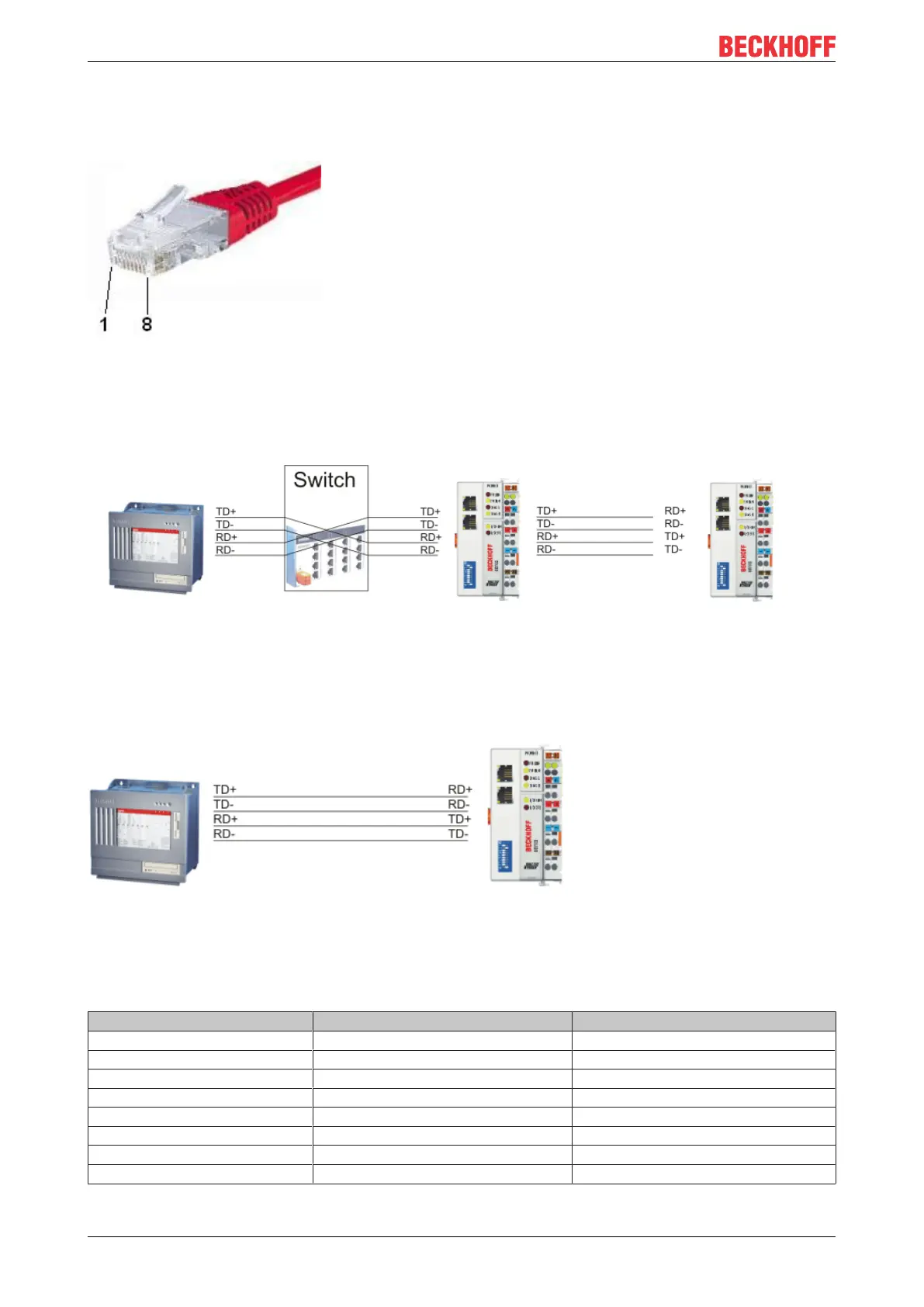

3.4 Ethernet connection

The connection to the Ethernet bus is made via an RJ45 connector (a Western plug).

Fig.6: RJ45 connector

Cabling

Ethernet connection from PC to BK910x via a switch

Fig.7: Ethernet connection from PC to BK910x via a switch

Connect the PC's network card to the hub using a standard Ethernet cable, and connect the hub, again using

a standard Ethernet cable, to the Bus Terminal controller. Connection via a switch is done in the same way.

Direct Ethernet connection from PC to BK910x

Fig.8: Direct Ethernet connection from PC to BK910x

A standard Ethernet cable must be used for connecting the PC directly with the Bus Terminal Controller.

Pin assignment of the RJ45 plug

PIN Signal Description

1 TD + Transmit +

2 TD - Transmit -

3 RD + Receive +

4 - reserved

5 - reserved

6 RD - Receive -

7 - reserved

8 - reserved
