Product overview
EL10xx, EL11xx16 Version: 4.5
2.1.2 EL1004-00x0 - LEDs and connection

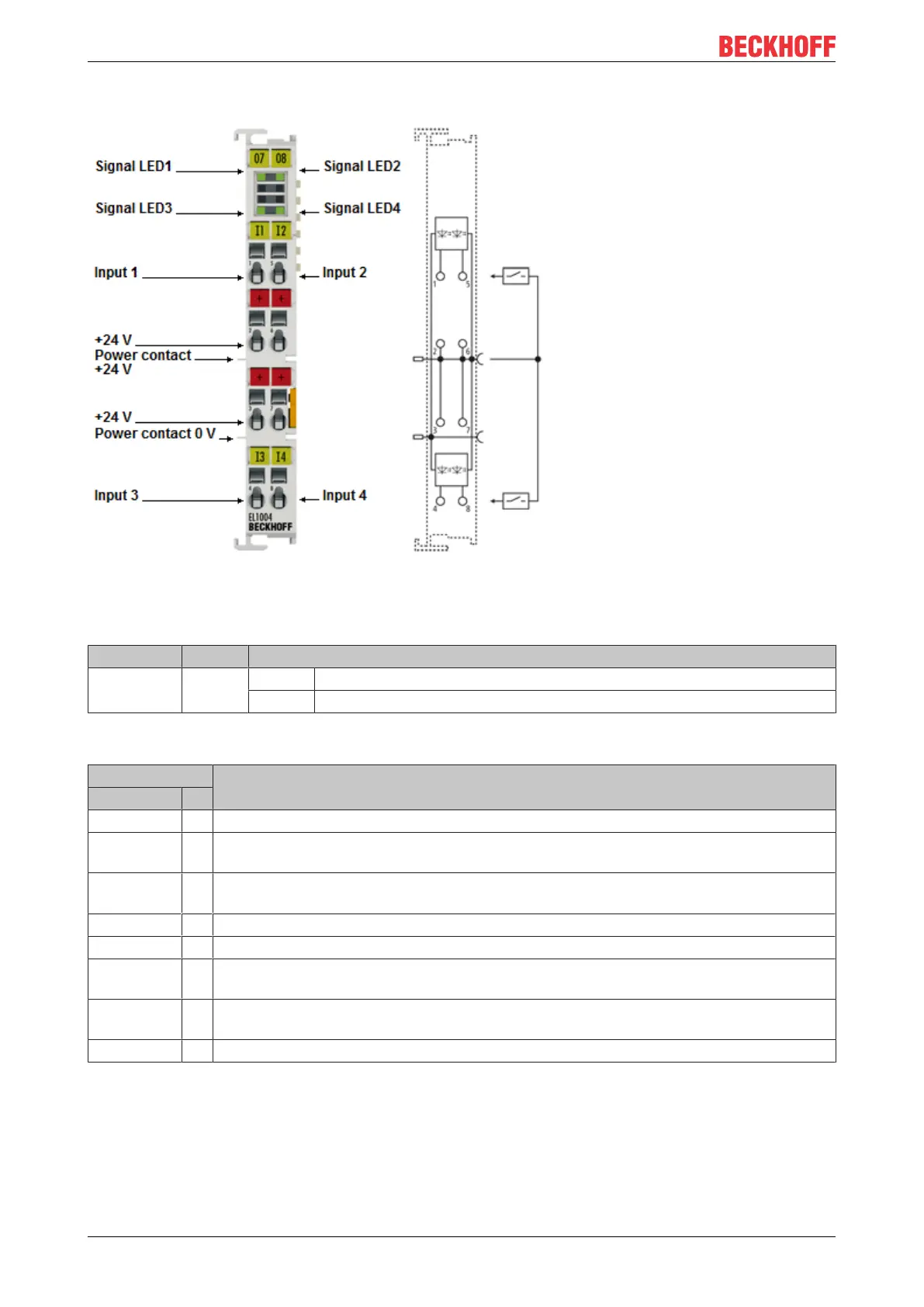

Fig.11: EL1004
EL1004-00x0 - LEDs
LED Colour Meaning
INPUT 1- 4 green off Signal voltage "0" (-3V ... 5V)
on Signal voltage "1" (11V ... 30V)
EL1004-00x0 - Connection
Terminal point Description
Name No.
Input 1 1 Input 1
+24V 2 Sensor supply for input1 (internally connected to terminal points3, 6, 7 and positive
power contact)
+24V 3 Sensor supply for input3 (internally connected to terminal points2, 6, 7 and positive
power contact)
Input 3 4 Input 3
Input 2 5 Input 2
+24V 6 Sensor supply for input2 (internally connected to terminal points2, 3, 7 and positive
power contact)
+24V 7 Sensor supply for input4 (internally connected to terminal points2, 3, 6 and positive
power contact)
Input 4 8 Input 4
