Operation
EL1904
33
Version: 3.0.0
5.2.4.4
EL1904 pin assignment

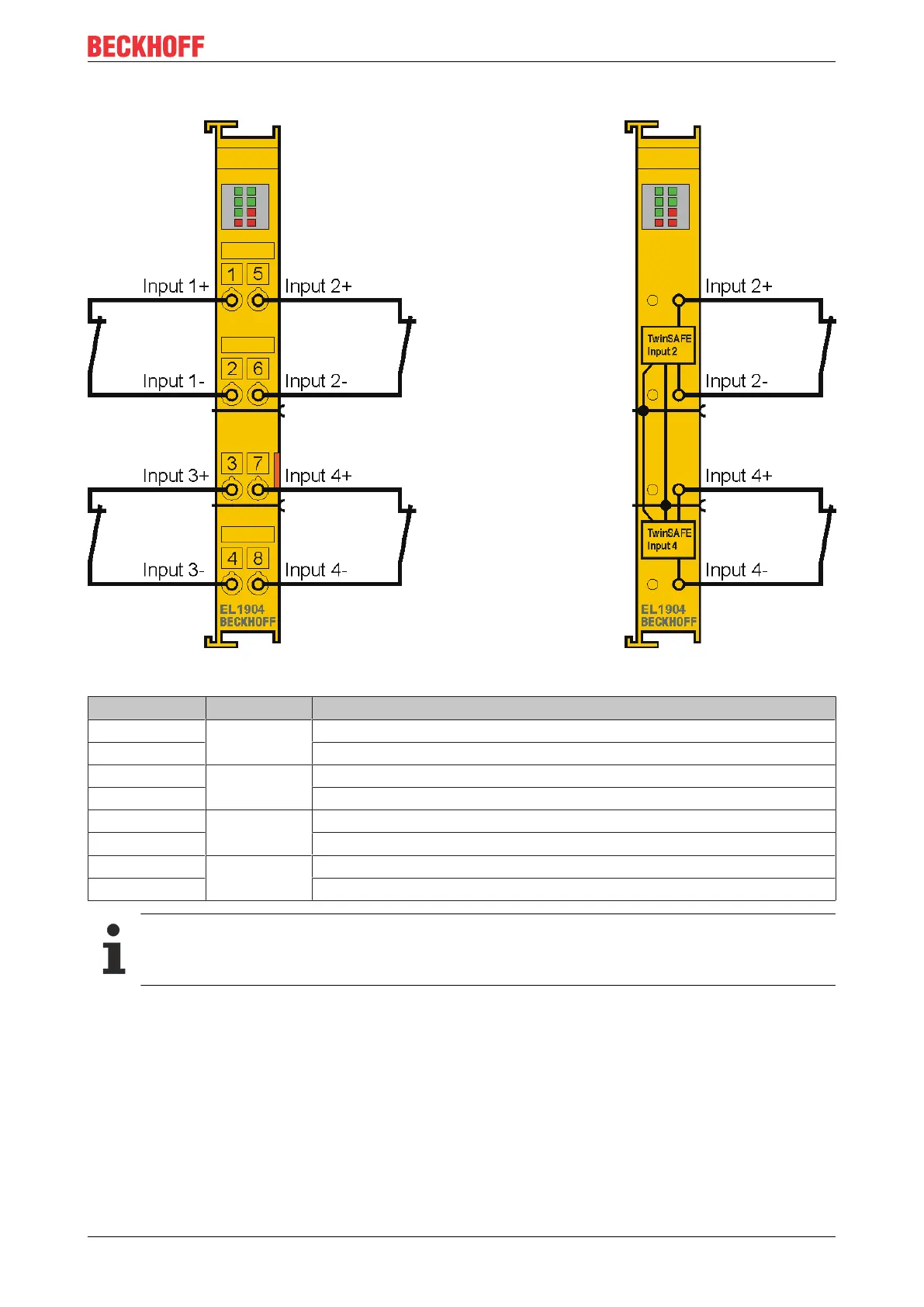

Fig.14: EL1904 pin assignment
Terminal point
Input
Signal
1
1
Input 1+
2
Input 1-
3
3
Input 3+
4
Input 3-
5
2
Input 2+
6
Input 2-
7
4
Input 4+
8
Input 4-
Configurable inputs
The inputs 1 to 4 can be occupied as you want with normally closed contacts or normally open
contacts. The corresponding analysis is carried out in the safety PLC.
