Audio Connection5.
To transmit a preamplied signal (OUTPUT connector on the PSU-T),
use a balanced microphone cable with the following pin assignment:
pin 1 = shielding; pin 2 = +; pin 3 = -. Since your PSU-T features gold-plated
contact points, we recommend that you use only microphone cables with
gold-plated connectors.
output
For unbalanced use, pin 1 and pin 3 have to be bridged
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
input
12
3
1
2
3
Balanced use with XLR connectors

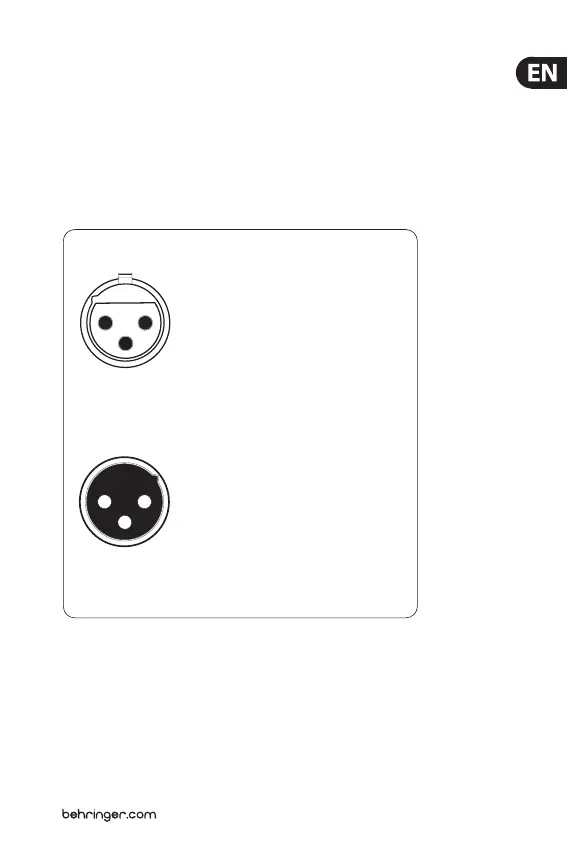

Fig. 5.1: XLR connectors

Behringer T-1 Specifications

Physical Dimensions

transducer type	16 mm (0.63")
dimensions	shaft: 68 mm, length: 211 mm
weight	0.77 kg

Audio Specifications

frequency response	20 Hz to 20 kHz
open circuit sensitivity	-40 dBV (0 dBV = 1 V/Pa)
max SPL	130 dB

Electrical Specifications

nominal impedance	approx. 200 Ω
supply voltage adapter	BEHRINGER PSU-T
mains voltage	100-120 V~, 50/60 Hz T 250 mA H 250 V / 220-230 V~, 50/60 Hz T 125 mA H 250 V
