Chapter 1 Motherboard Description

5%

(/3#0

0 :+

....!"

7.!

../45,4:!

::!

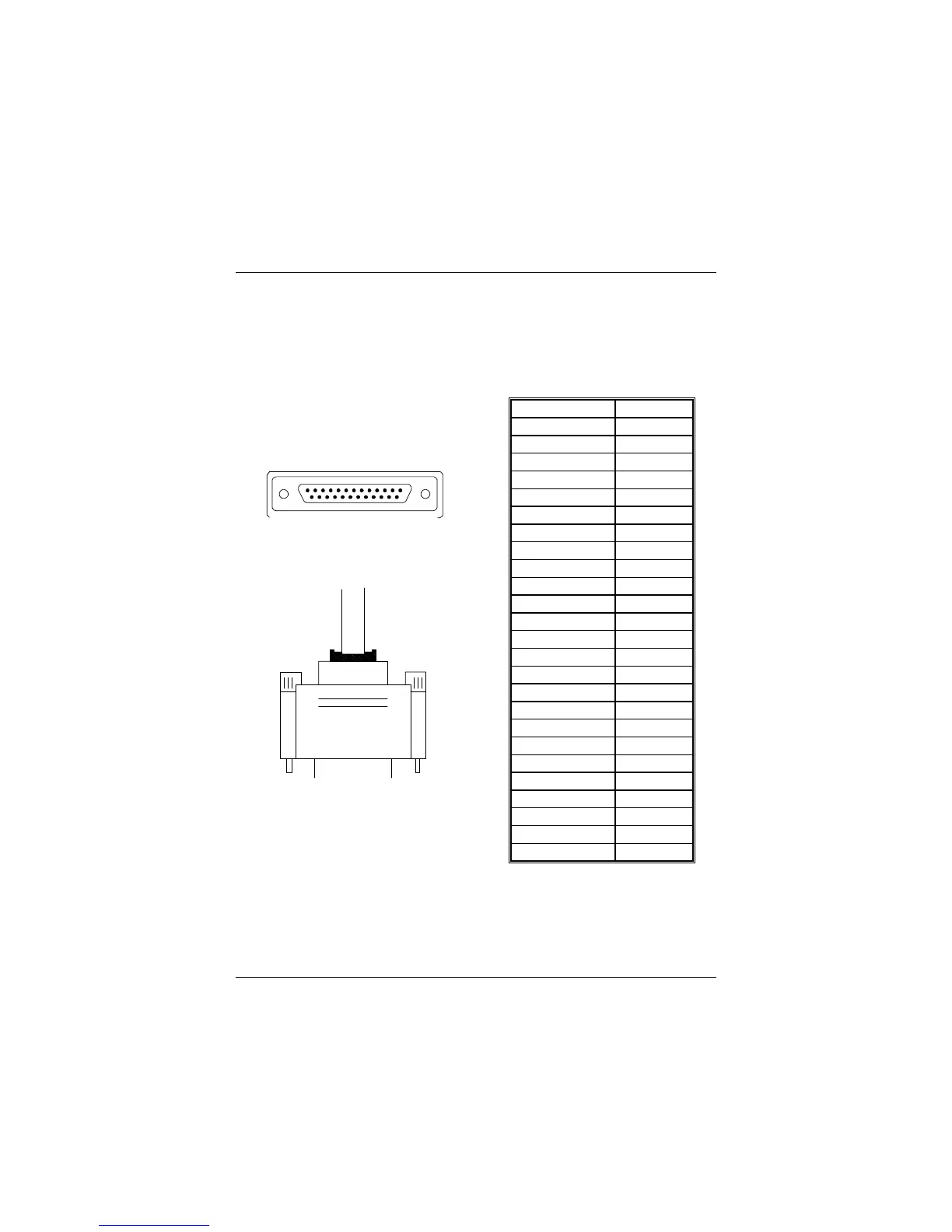

Signal Pin

-Strobe 1

Data 0 2

Data 1 3

Data 2 4

Data 3 5

Data 4 6

Data 5 7

Data 6 8

Data 7 9

-Ack 10

Busy 11

Paper Empty 12

+Select 13

-Auto FDXT 14

-Error 15

-Init 16

-SLCTN 17

Ground 18

Ground 19

Ground 20

Ground 21

Ground 22

Ground 23

Ground 24

Ground 25

Biostar M6VCF User Manual
