Blaupunkt LIVERPOOL 110 User Manual

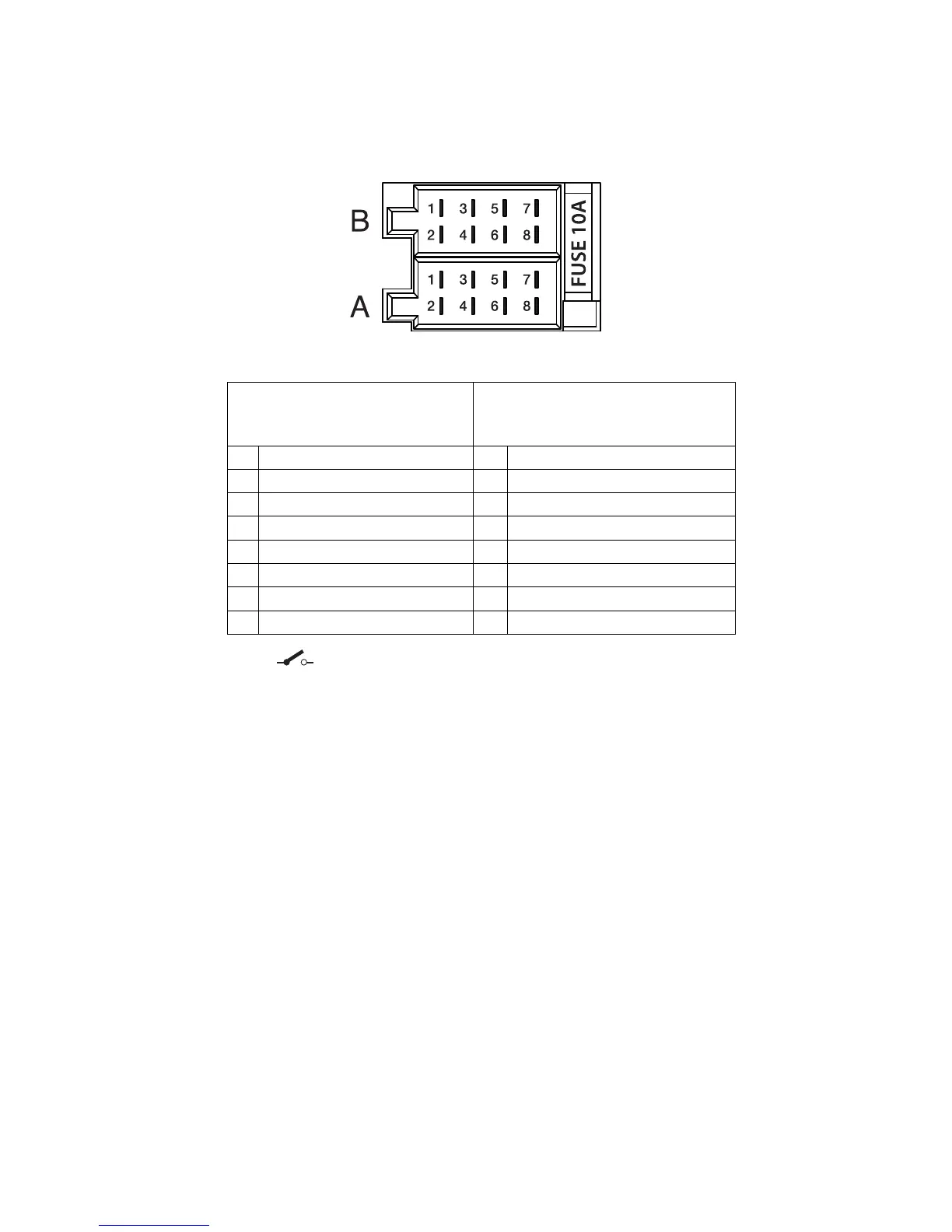

Wiring connection
A B
1 NC 1 S peaker out R R +
2 NC 2 S peaker out R R –
3 NC 3 S peaker out R F +
4 P ermanent +12V 4 S peaker out R F –
5 Auto antenna* 5 S peaker out L F +
6 NC 6 S peaker out L F –
7 Tl.15/Ignition 7 S peaker out L R +
8 G round 8 S peaker out L R –
*
S witched power s upply +12 V / max. 150 mA
19

Blaupunkt LIVERPOOL 110 Specifications

General

Brand	Blaupunkt
Model	LIVERPOOL 110
Category	Car Receiver
Language	English
